Brass spigot male thread x hose tail
3,97 €

including 19% VAT., plus shipping

Item number: MA0034

Product picture Item no. Variation Price Quantity
Brass spigot male thread x hose tail 1/2" x 15mm MA0034.020.025 1/2" auf 3/4" (Tülle 15mm) 3,97 €*

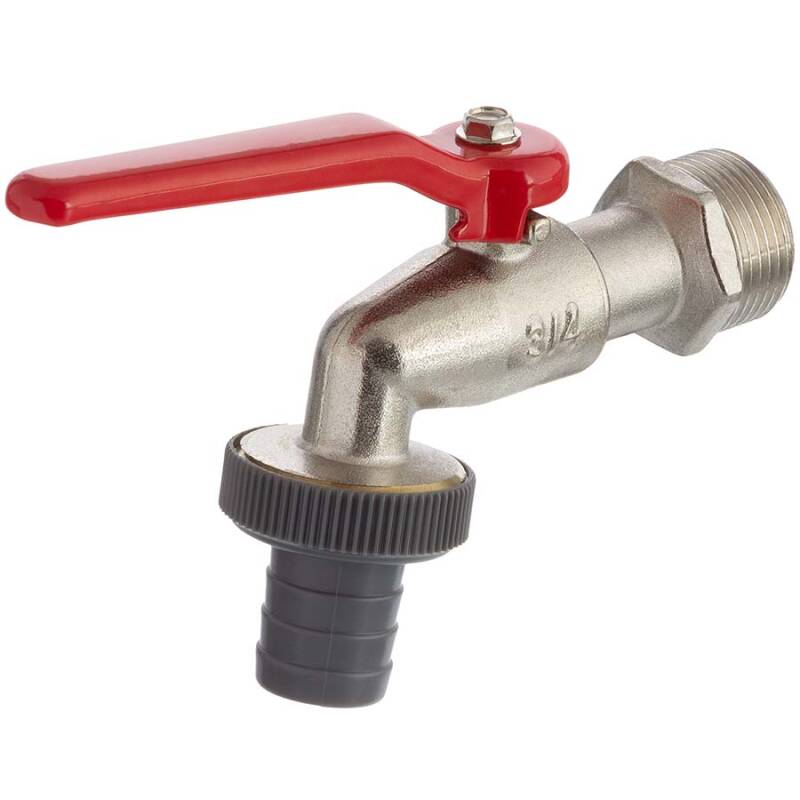

Brass spigot male thread x hose tail 3/4" x 19,5mm MA0034.EC0.032 3/4" x 1" (Tülle 19,5mm) 4,71 €*
Brass spigot male thread x hose tail 3/4" x 20mm MA0034.025.032 3/4" x 1" (Tülle 20mm) 6,05 €*

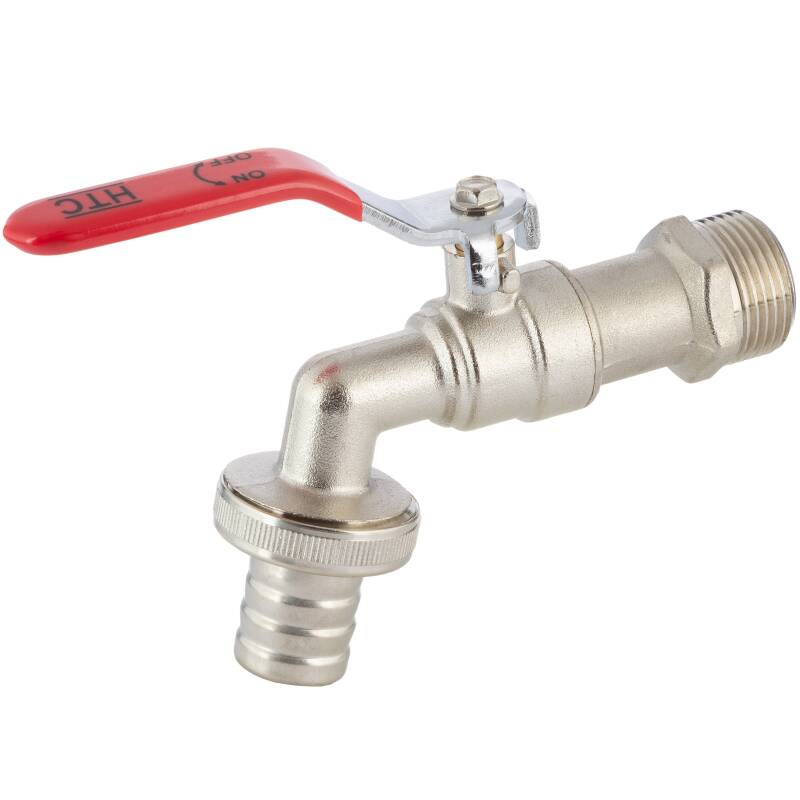

Brass spigot male thread x hose tail 1" x 25mm MA0034.032.040 1" x 1 1/4" (Tülle 25mm) 11,31 €*

including 19% VAT., plus shipping

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

Messing Auslaufhahn, Wasserhahn, Aussengewinde x Aussengewinde mit Schraubtülle, Hebel Stahl

Anschluss:
Aussengewinde x Aussengewinde (Schlauchtülle)
Gewinde:
BSP
Rohrgewinde

Das Whitworth-Gewinde, auch als Zoll-Gewinde bezeichnet wird heute als British Standard Thread (BSP) auf dem europäischem Festland angewendet.

Sir Joseph Whitworth führte es 1841 als ersten genormtes Gewinde in der Welt ein.

G DIN 2999 & BS21, ISO 228/1 & ISO 7/1,
nicht selbstdichtend

Ein nicht selbstdichtendes Gewinde besteht meist durch ein paralleles Innengewinde und ein konisches Aussengewinde. Man benötigt Teflonband oder Dichtfaden für Kunststoff bzw. Teflonband, Dichtfaden oder Hanf für Metallgewinde zum Abdichten.

, Abdichtung mit Hanf, Dichtpaste o.ä.
Einsatzgebiet:
geeignet für Kalt- und Warmwasser
Arbeitsdruck (
PN
Pressure Nominal, englisch für Nenndruck, der Druck (in bar), für den genormte Rohrleitungsteile ausgelegt sind
):
16 bar bei 20°C | 8 bar bei 80°C
Material:
Messing MS 58 | CW614N
DIN:
Dimensionen konform ISO 4144, Anschlussgewinde nach ISO 7/1 (DIN 2999 / BS 21)
Farbe:
Messing verchromt, Griff Überzug: Rot

DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
