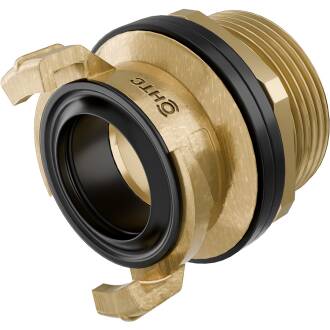

Brass tank threaded quick bayonet coupling (sim. to GEKA)

6,45 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Item no.
Variation
DN
E
F
G
L
L1
min. hole
Price
Quantity
GK0822.000.040
1 1/4" x GEKA ähnl.
25
3
6
1 1/4" (41,91mm)
27,5
50
42
6,87 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Brass Rain Barrel Connector, External Thread x Quick Coupling GEKA similar

Rain barrel connector, container connector for individual use in flat and curved containers or rain barrels for connection with Quick Coupling GEKA similar

Connection:
External thread x Quick Coupling
Thread:
BSP Pipe Thread G DIN 2999 & BS21, ISO 228/1 & ISO 7/1, not self-sealing, sealing with Hemp, sealing paste, etc.
Temperature:
-20°C to 150°C
Working Pressure (PN):
10 bar
Material:
Brass UNE EN 12165
Seal:
2x NBR flat gasket, black
Color:
Brass-colored
Rain Barrel Connector

Rain Barrel Connector External Thread x Quick Coupling GEKA similar Mounting Example 30L Mash Barrel

  • Also suitable for small, flexible round container diameters
  • In the example, both seals are mounted externally to compensate for the barrel's curvature
  • For tighter tank bulges, sealing with silicone can be supported
  • Compatible with couplings from Geka®
DOWNLOADRoHS Confirmation HTC
DOWNLOADREACH Addition Brass HTC

DOWNLOAD The Thread Identification - or why 1" is not 25.4mm
