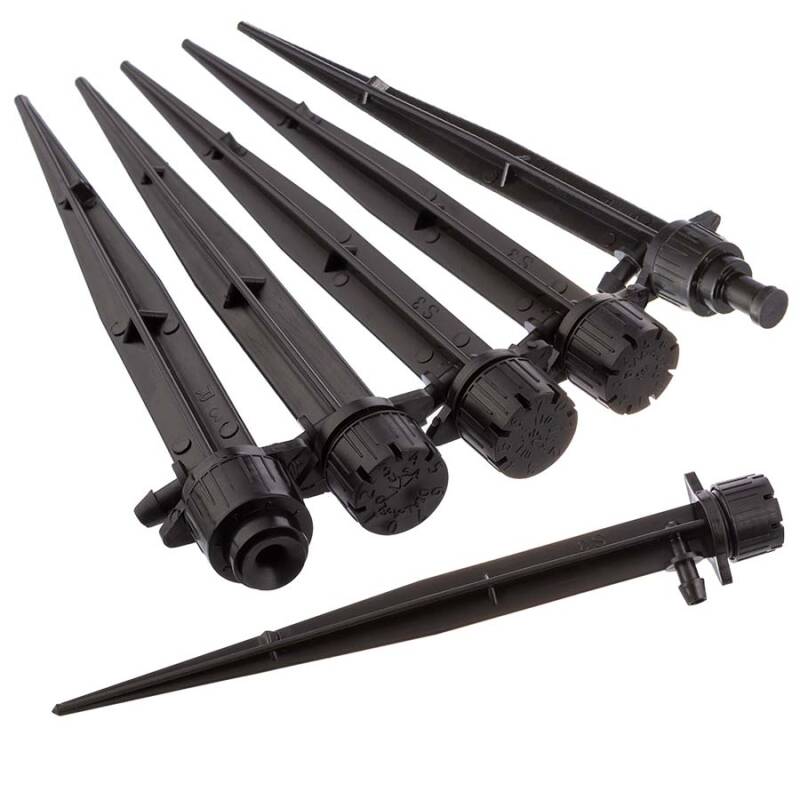

Bubbler on stake

SKU: BW0109
Auswahl Steuerzone / Lieferland
from
0,38 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
l/h
Price
Quantity

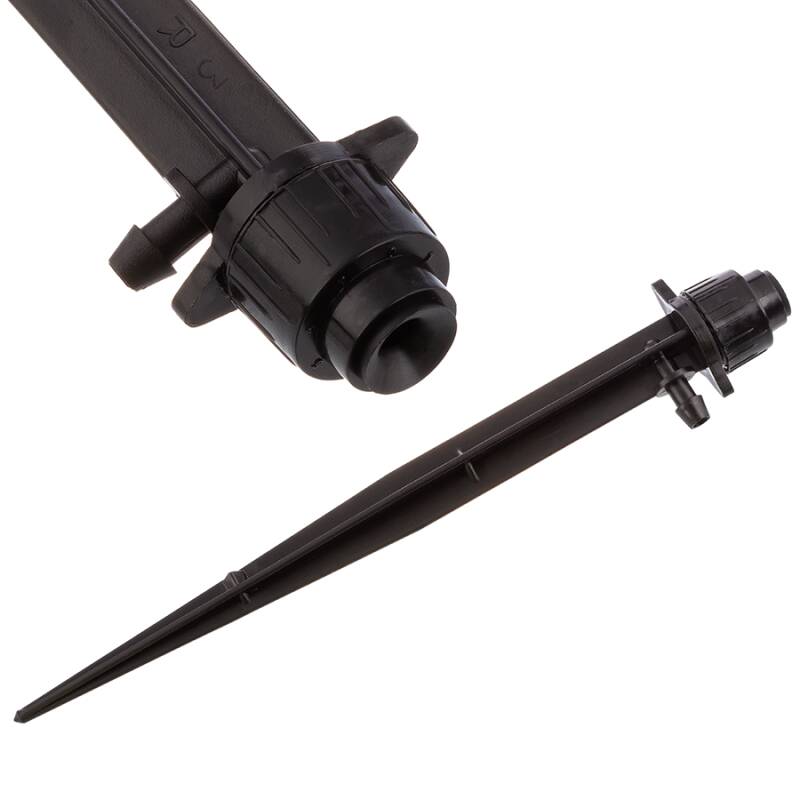

Bubbler on stake
BW0109.36F.111
360° Fan Spray
0 - 75,7
1,14 €*
pc.:

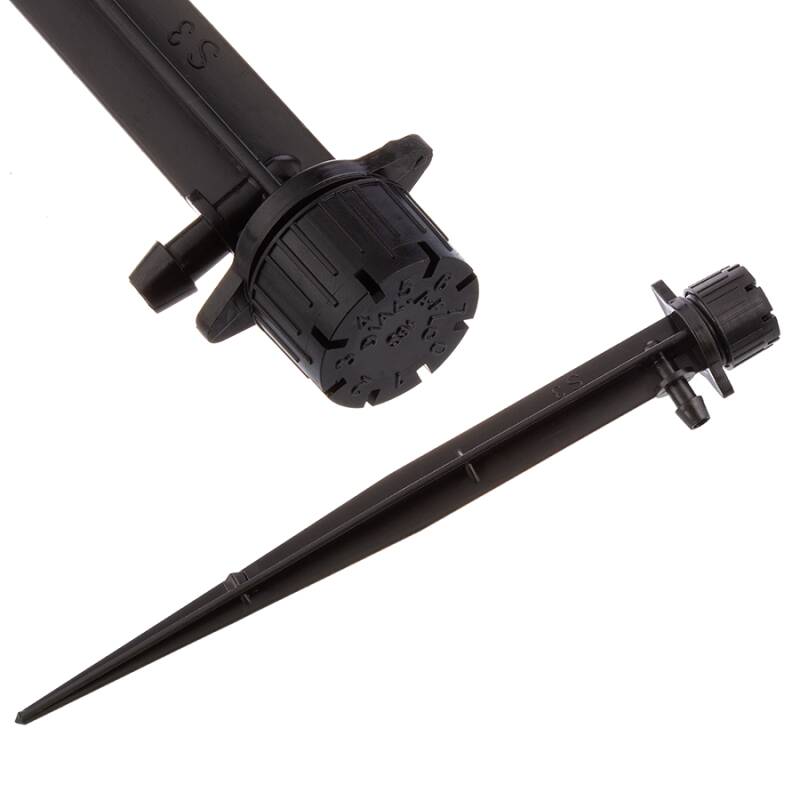

Bubbler on stake
BW0109.368.222
360°, 8 Strahl
0 -37,8
0,38 €*
pc.:

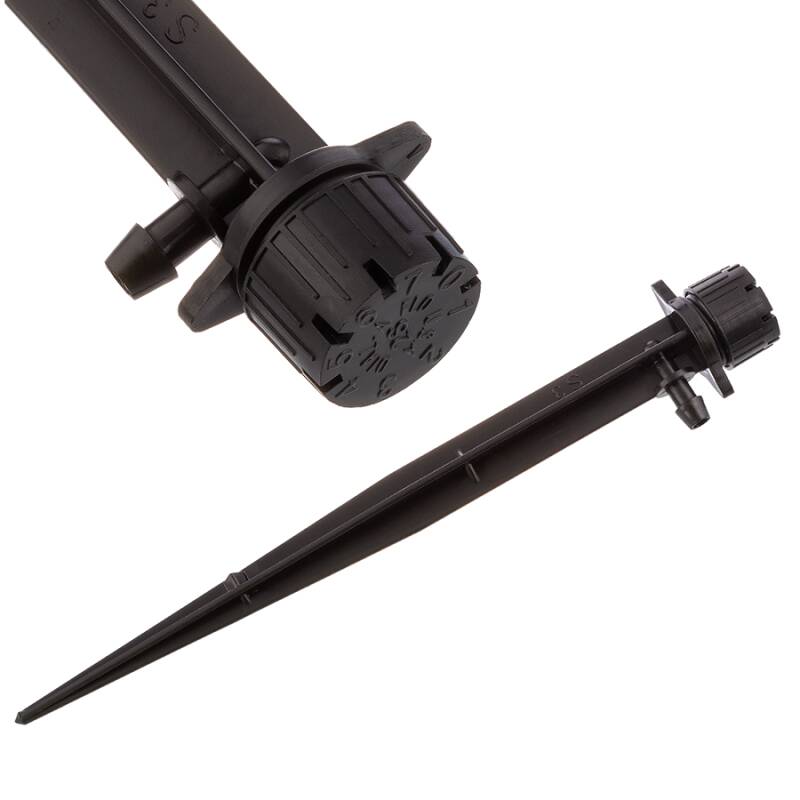

Bubbler on stake
BW0109.180.333
180°, 5 Strahl
0 -37,8
0,38 €*
pc.:

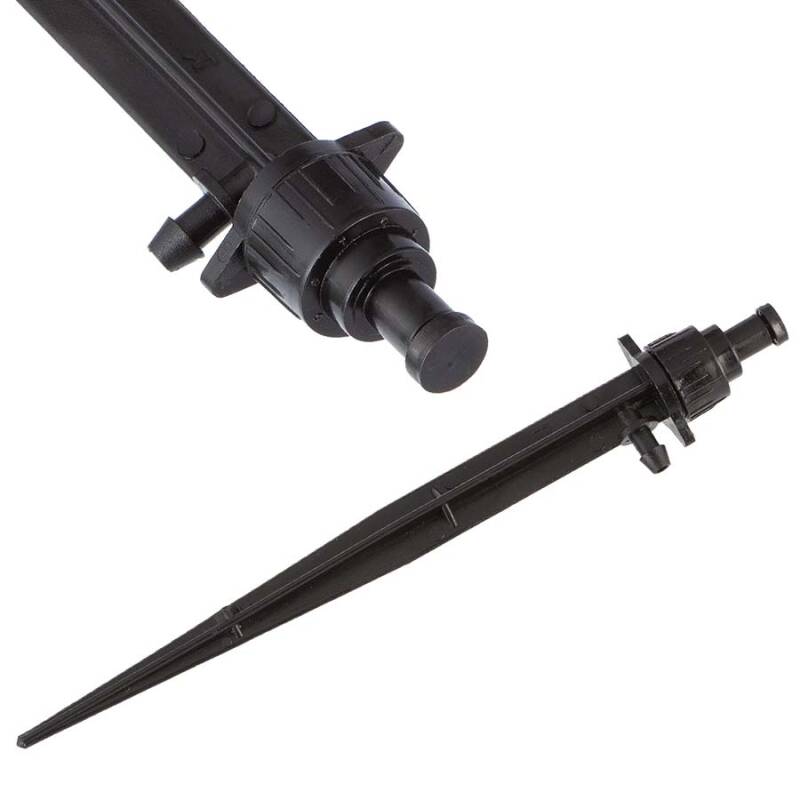

Bubbler on stake
BW0109.00U.555
Umbrella Bubbler
0 -94,6
2,67 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Tropper | Bubbler on Stake, Adjustable Emitter


Dial-A-FloTM emitters are adjustable from complete shut-off to maximum flow and can be disassembled for cleaning if needed.
By turning the cap, the emitters are transformed from a drip emitter into a bubbler. The cap is calibrated so you can select the desired flow rate.


Micro Irrigation with High Precision

  • Fan, Spray, and Umbrella (Rain) shapes
  • Flow and radius control via cap rotation
  • 155mm stake, up to 130mm connection
  • Operating pressure: 1 to 2.5 bar
  • Suitable for 4mm micro tubing

BW-109 Application

DIAL-A-FLOTM Dripper | Bubbler on Stake

The stake is fitted with a lateral barb connection for attaching 4mm micro tubing.

Spray Pattern

Position
Discharge
Radius
0
0 l/h
0
1
8.7 l/h
0
2
11.7 l/h
0
3
14.7 l/h
5
4
18.1 l/h
8
5
21.6 l/h
10
6
24.6 l/h
15
7
27.2 l/h
18
8
30.6 l/h
23

Fan Spray

Position
Discharge
Radius
0
0 l/h
0
1
18.9 l/h
0
2
31.0 l/h
30
3
46.9 l/h
60
4
51.4 l/h
76
5
56.0 l/h
91
6
59.0 l/h
106
7
62.4 l/h
122
8
64.7 l/h
132

Data provided for a pressure of approximately 2 bar.
Radius values are in cm.


Spray Patterns Comparison: Fan Spray - 360°, 8-Spray

Spray Pattern

Spray Pattern
