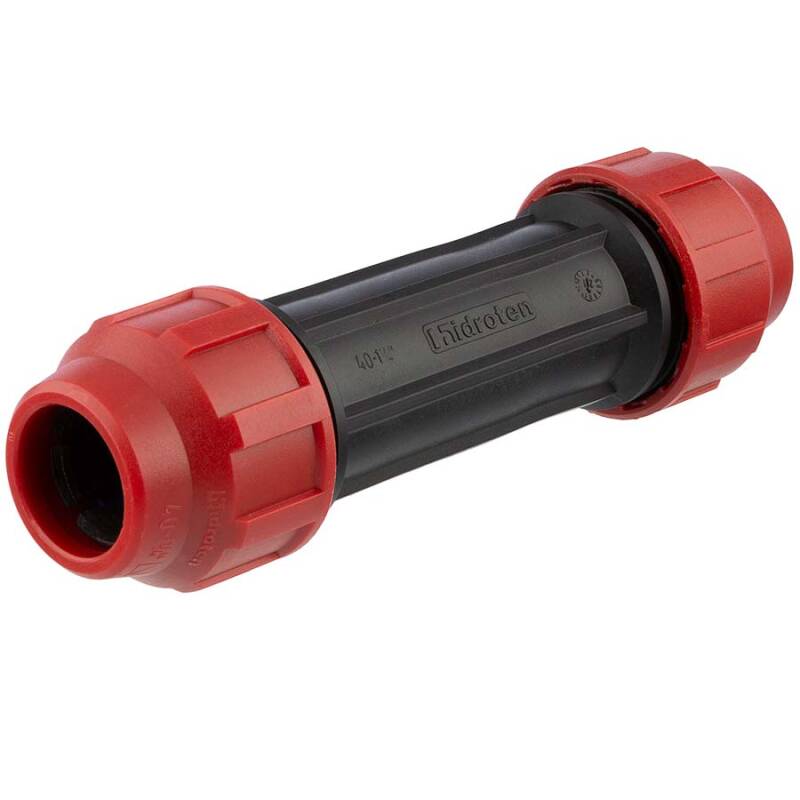

Check valve compression fitting

Item number: PZ0962

5,87 €

including 19% VAT., plus shipping

Choose your delivery country Germany

How to measure a threaded fitting

View item details in PDF

Item no.	Variation	A	B	C	L	Pipe A-Ø	Weight	Price	Quantity
PZ0962.000.020	2fach 20mm	20	46	85	178	20	99	5,87 €^*	pc.:
PZ0962.000.025	2fach 25mm	25	55	95	210	25	165	7,83 €^*	pc.:
PZ0962.000.032	2fach 32mm	32	64	105	231	32	307	9,25 €^*	pc.:
PZ0962.000.040	2fach 40mm	40	80	141	275	40	523	13,99 €^*	pc.:
PZ0962.000.050	2fach 50mm	50	95	160	305	50	805	17,33 €^*	pc.:
PZ0962.000.063	2fach 63mm	63	116	179	356	63	1343	26,37 €^*	pc.:

including 19% VAT., plus shipping

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

E-Mail

I would like to be notified by e-mail.
You will receive an automatic e-mail as soon as the item is available again. Unfortunately, we are not able to inform you in advance about an expected delivery date.

I have taken note of the privacy policy. I consent to my details and data being collected and stored electronically in order to respond to my enquiry. Note: you can revoke your consent for the future at any time by sending an e-mail to info@ht-connect.de.

Article details

Description

PP Klemmringverschraubung Rückschlagventil, 2fach Klemme

PP Klemmringverschraubung für den universellen Einsatz bei Brauchwasser, Trinkwasser im privaten Bereich, Bewässerung sowie industriellen Anforderungen

Anschluss:

2fach Klemme

Temperatur:

bis 60°C konstant, kurzzeitig 80°C

Arbeitsdruck ():

max. 16 bar bei 20°C

Material:

PP Polypropylen

O-Ring:

Farbe:

Schwarz, Überwurfmutter: Schwarz

technischer Hinweis:
