All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

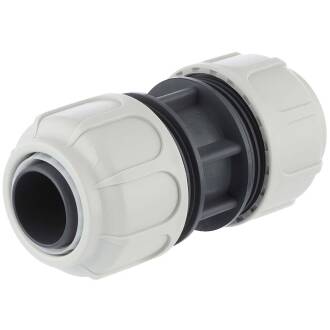

PP Clamp Coupling for Flexible Hose, Adhesive Hose, Connecting Sleeve 2-way Clamp
Connection:
2-way clamp
Temperature:
up to 60°C constant, briefly up to 80°C
Working pressure (PN):
max. 10 bar at 20°C
Material:
PP Polypropylene
O-Ring:
NBR
Color:
Body: Grey, Clamp Nut: White, Nut Thread: Black
Quality:
UV-stable
...Does your fitting deliver what it promises?
This image is neither a "show image" nor from the manufacturer itself - this is our test because we want to know what we are selling you!
- max. working pressure 10 bar at 20°C (50 years of service life)
- max. working pressure 3 bar at 60°C (50 years of service life)
- max. operating temperature 80°C
- impressive performance in tensile test
- extremely durable due to the structure of polypropylene
- high resistance to thermal and mechanical stresses, weather influences, and UV rays
- absolutely non-toxic: 100% suitable for transporting liquid food and drinking water
- high chemical resistance: saline solutions, chlorine, saturated hydrocarbons, gasoline, oil, and animal or vegetable fats
- weather, ozone, chlorine, and UV resistant
- Internal thread nut including flat seal
- also available with PVC-U glue connection
- harmonizes well with grey and white flexible hoses
- THE connection option for flexible hose in the pool sector: innovative, strong quality, affordable price
Polypropylene clamp fittings are the best choice. The max. working pressure of 10 bar says more than just the max. pressure rating. A fitting with a higher value and higher quality components is certainly a better alternative than a component that is oriented to the minimum. If a clamp fitting falls to the ground, you don’t have to worry that the nut will break due to its thin construction...
The unique combination of an internal support sleeve with external clamping technology creates an impressive performance in the tensile test without deforming the hose.
- Snap ring
- Press sealing ring
- Sealing ring
