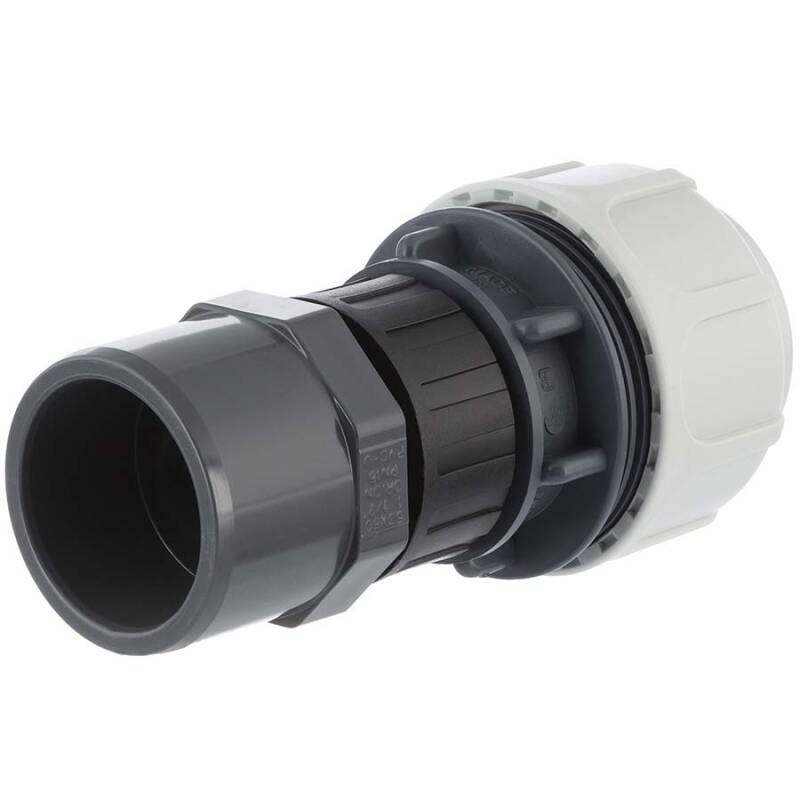

Compression fitting BD FAST with solvent socket for PoolFlex solvent flexible pipes

10,36 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Delivery time: 1 - 4 Workdays  (DE - int. shipments may differ)

wichtiger Hinweis

geeignet nur für Flexschlauch Klebeschlauch, bei dem der Aussendurchmesser maßgeblich ist.
pc.
  • Available immediately
  • Delivery time: 1 - 4 Workdays  (DE - int. shipments may differ)
All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.

   Description

PP Clamp Coupling for Flexible Hose, Adhesive Hose, Transition Sleeve Clamp x PVC-U Adhesive Connection

Connection:
Clamp x Adhesive Connection
Temperature:
Up to 60°C constant, short-term 80°C
Working Pressure (PN):
Max. 10 bar at 20°C
Material:
PP Polypropylene
O-Ring:
NBR
Seal for Clamp Nut:
NBR
Color:
Body: Grey, Clamp Nut: White, Nut Thread: Black
Adhesive Connection:
PVC-U Grey | PK068 Black
Value:
PP UV-stable | PK068 including PVC-U adhesive connection 100% UV-stable
Fitting

...Does Your Fitting Live Up to What It Promises?

This image is neither a "show picture" nor from the manufacturer – it’s our test because we want to know what we’re selling you!


  • Max. working pressure 10 bar at 20°C (50 years lifespan)
  • Max. working pressure 3 bar at 60°C (50 years lifespan)
  • Max. working temperature 80°C
  • Impressive performance in tensile test
  • Extremely durable due to the polypropylene structure
  • High resistance to thermal and mechanical stress, weather influences, and UV rays
  • Completely non-toxic: 100% usable for transporting liquid foods, drinking water
  • High chemical resistance: saline solutions, chlorine, saturated hydrocarbons, gasoline, oil, and animal or vegetable fats
  • Weather, ozone, chlorine, and UV resistant
  • Internal thread nut including flat seal
  • Also available with PVC-U adhesive connection
  • Perfectly harmonizes with both grey and white flexible hoses
  • THE connection variant for flexible hoses in the swimming pool sector: innovative, strong quality, low price

Polypropylene clamp fittings are the best choice. The max. working pressure of 10 bar says more than just the max. pressure load. A fitting with high value and higher quality components is certainly a better alternative than a component oriented towards the minimum. If a clamp fitting ever falls to the ground, there’s no need to worry that the nut will break due to its thin construction...
The unique combination of internal support sleeve with external clamping technique creates impressive performance in tensile tests without deforming the hose.


Clamp fitting

  1. Split ring

  2. Press sealing ring

  3. Sealing ring

Clamp fitting

Clamp fitting

DOWNLOAD PP Polypropylene Technical Characteristics
DOWNLOAD The Thread Identification - or why 1" is not exactly 25.4mm
DOWNLOAD Chemical Resistance of Plastics
DOWNLOAD RoSH Compliance Statement - Bucchi s.R.l.
