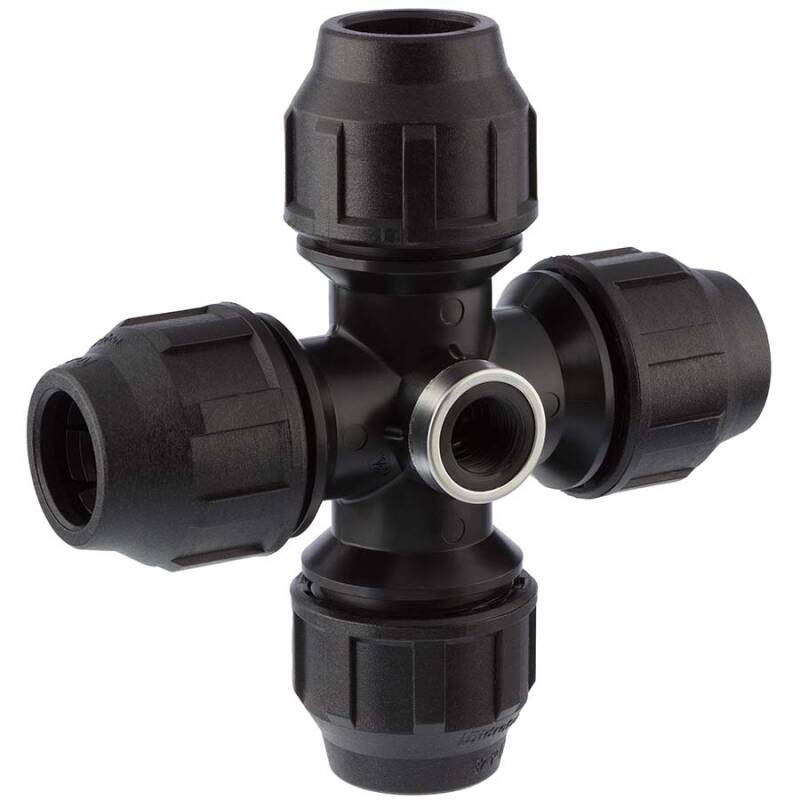

Cross compression fitting with central A2 ss female threaded coupling

from
8,07 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Item no.
Variation
A
B
C
D
Reinforced ring
Weight
Pipe O-ø
Price
Quantity
PZ0512.020.020
20mm x 1/2"
21
46
167
1/2" (20,96mm)
JA
199
20
8,07 €*
pc.:
PZ0512.020.025
20mm x 3/4"
21
46
167
3/4" (26,44mm)
JA
165
20
8,63 €*
pc.:
PZ0512.025.020
25mm x 1/2"
26
55
182
1/2" (20,96mm)
JA
266
25
9,63 €*
pc.:
PZ0512.025.025
25mm x 3/4"
26
55
182
3/4" (26,44mm)
JA
269
25
10,31 €*
pc.:
PZ0512.032.020
32mm x 1/2"
33
64
198
1/2" (20,96mm)
JA
388
32
11,22 €*
pc.:
PZ0512.032.025
32mm x 3/4"
33
64
198
3/4" (26,44mm)
JA
388
32
11,94 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PP Klemmringverschraubung Kreuz Abgang mittig, 4fach Klemme x Innengewinde

PP Klemmringverschraubung für den universellen Einsatz bei Brauchwasser, Trinkwasser im privaten Bereich, Bewässerung sowie industriellen Anforderungen

Anschluss:
4fach Klemme x Innengewinde Verstärkungsring
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
bis 60°C konstant, kurzzeitig 80°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C
Material:
PP Polypropylen
O-Ring:
NBR
Farbe:
Schwarz, Überwurfmutter: Schwarz
Verwendung:
Rohre aus PELD, PEHD, PE40, PE80, PE100

Bewässerung:

  • Landwirtschaft, Gärtnerei & Gartenbau, Weinberge

Besprengung:

  • Wohngebiete, kommunale Bereiche, Sportplätze, Golfplätze, Reitplätze

Industrie:

  • Wasserversorgung, Versorgung mit korrodierenden Flüssigkeiten, Kabelschutz

Qualität:

  • Wetter, UV- und Ozonbeständig, Innengewinde mit Verstärkungsring (außer separat vermerkt)

Preis/Leistung:

  • unser Markenprodukt mit hervorragendem Preis-/Leistungsverhältnis

DOWNLOAD RoHS Konformitätserklärung - Hidroten

DOWNLOAD verarbeiten von PP Klemm Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOADabdichten und verbinden von Kunststoffgewinden
DOWNLOAD PP Polypropylen Temperatur-/Druckdiagramm
DOWNLOAD chemische Beständigkeit von Kunststoffen
