HYDROPORT adjustable bubbler

SKU: BW0114
Auswahl Steuerzone / Lieferland
from
9,78 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
l/h
Price
Quantity

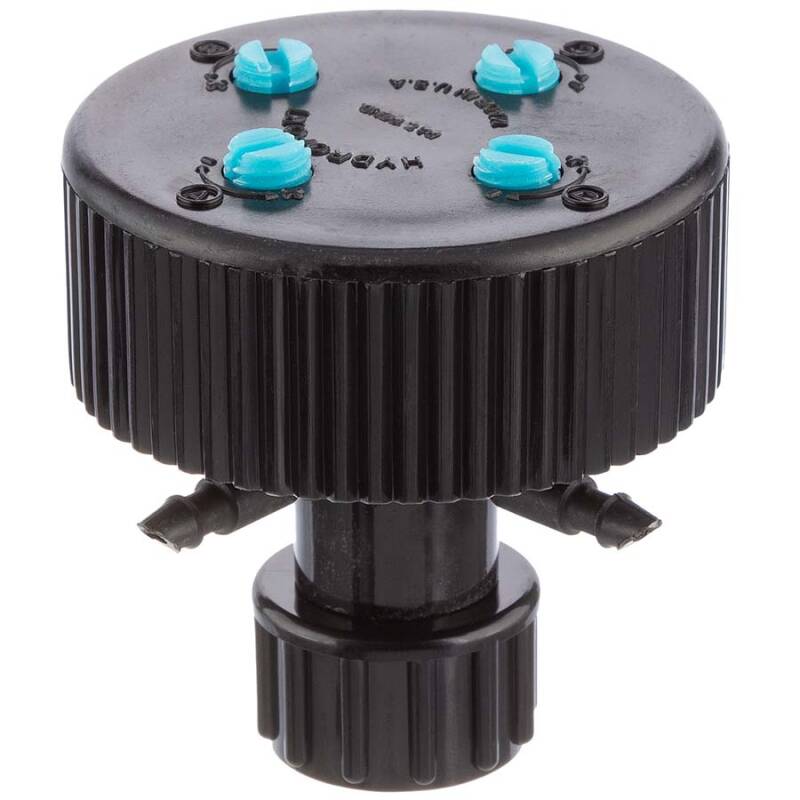

HYDROPORT Bubbler distributor, adjustable, 4-way
BW0114.004.111
4fach einstellbar
0 - 75,7 l/h
9,78 €*
pc.:

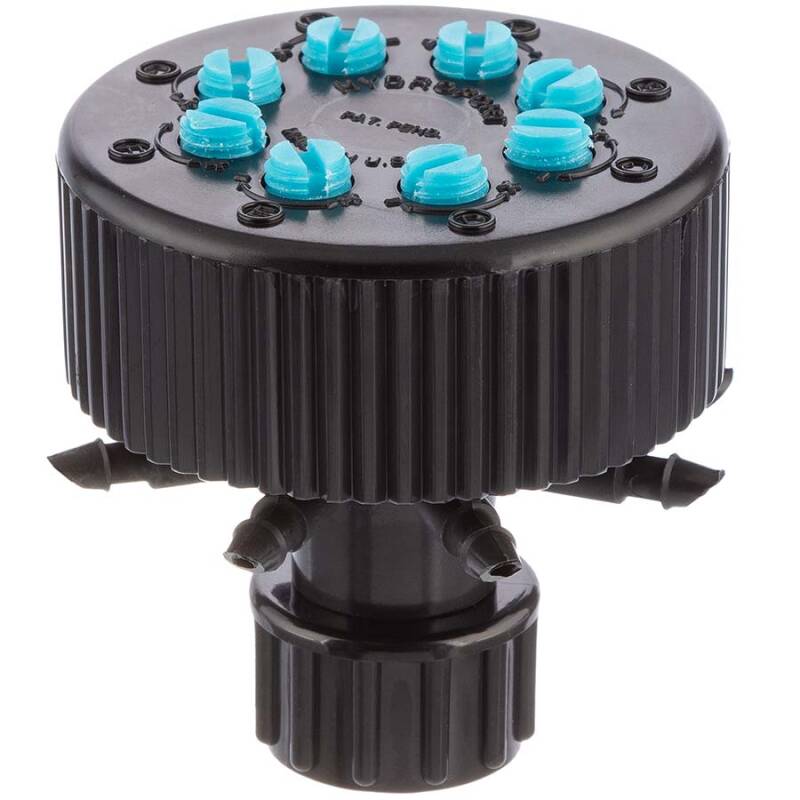

HYDROPORT adjustable bubbler
BW0114.008.222
8fach einstellbar
0 - 75,7 l/h
14,07 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

HYDROPORTTM Bubbler Adjustable Distributor

The Agrifim HYDROPORTTM is a micro-irrigation distributor that delivers water to up to eight different plantings with independently adjustable flow rates. It allows you to convert an underground sprinkler system into a drip system. The flow rate is adjustable from 0 - 20 gph (0 - 75.7 l/h). The water flow for each branch can be easily adjusted, for example, with a coin at the head of the HYDROPORTTM.


Micro Irrigation with High Precision

  • Up to eight independently adjustable flow rates
  • Flow rate from 0 - 20 gph (0 - 75.7 l/h)
  • Max. operating pressure 3 bar at 20°C
  • Screws onto 1/2" (20.96mm) thread
  • Easily integratable into a sprinkler system
  • With barbed connector suitable for 4mm PE (rigid) micro tubing
  • Filter integrated in the 1/2" connector
BW-114 Application

HYDROPORTTM Bubbler - Adjustable Distributor

Ideal for precisely adjustable multiple water delivery in close proximity.
BW-114 Installation

HYDROPORTTM Bubbler - Distributor Installation

The HYDROPORTTM distributor can be installed either above ground or underground in a valve box. The underground installation integrates better into the overall appearance of your system, and the PE-rigid micro tubing can also be laid underground to the application point.
BW-112 Micro Tubing Closure

Micro Tubing - Application Tip

Close the micro tubes with end caps that are not in use to prevent insects from entering.
