High pressure hose, black

SKU: SC0412
Auswahl Steuerzone / Lieferland
from
1,26 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting

Wichtiger Hinweis

keine Rückgabe, kein Widerruf bei Schlauchzuschnitt.

Tipp

Für die richtige Wahl der Schlauchklemme ist der Aussendurchmesser des Schlauches maßgeblich.
  • Available immediately
   Variants

Item no.
Variation
D
DN
W
max. lenght
Working pressure
Burst pressure
Price
Quantity
SC0412.006.001
6mm Meterware 1-5m
11,6
6
2,8
1 - 5m
30 bar
90 bar
1,36 €*
meter:
SC0412.006.006
6mm Meterware ab 6m
11,6
6
2,8
6 - 25m
30 bar
90 bar
1,26 €*
meter:
Minimum order quantity: 6
SC0412.006.050
6mm Rolle 50m
11,6
6
2,8
---
30 bar
90 bar
56,53 €*
Reel:
SC0412.008.001
8mm Meterware 1 - 5m
13,8
8
2,9
1 - 5m
30 bar
90 bar
1,50 €*
meter:
SC0412.008.006
8mm Meterware ab 6m
13,8
8
2,9
25m
30 bar
90 bar
1,43 €*
meter:
Minimum order quantity: 6
SC0412.008.050
8mm Rolle 50m
13,8
8
2,9
---
30 bar
90 bar
63,96 €*
Reel:
SC0412.010.001
10mm Meterware 1 - 5m
16,2
10
3,1
1 - 5m
30 bar
90 bar
1,89 €*
meter:
SC0412.010.006
10mm Meterware ab 6m
16,2
10
3,1
6 - 25m
30 bar
90 bar
1,76 €*
meter:
Minimum order quantity: 6
SC0412.010.050
10mm Rolle 50m
16,2
10
3,1
---
30 bar
90 bar
78,84 €*
Reel:
SC0412.013.001
13mm Meterware 1 - 5m
19,6
13
3,3
1 - 5m
30 bar
90 bar
2,36 €*
meter:
SC0412.013.006
13mm Meterware ab 6m
19,6
13
3,3
6 - 25m
30 bar
90 bar
2,20 €*
meter:
Minimum order quantity: 6
SC0412.013.050
13mm Rolle 50m
19,6
13
3,3
---
30 bar
90 bar
98,18 €*
Reel:
SC0412.016.001
16mm Meterware 1 - 5m
22,6
16
3,3
1 - 5m
30 bar
90 bar
2,89 €*
meter:
SC0412.016.006
16mm Meterware ab 6m
22,6
16
3,3
6 - 25m
30 bar
90 bar
2,70 €*
meter:
SC0412.016.050
16mm Rolle 50m
22,6
16
3,3
---
30 bar
90 bar
Keine Express-Lieferung
120,49 €*
Reel:
SC0412.019.001
19mm Meterware 1 - 5m
26,2
19
3,6
1 - 5m
30 bar
90 bar
3,78 €*
meter:
SC0412.019.006
19mm Meterware ab 6m
26,2
19
3,6
6 - 25m
30 bar
90 bar
3,53 €*
meter:
Minimum order quantity: 6
SC0412.019.050
19mm Rolle 50m
26,2
19
3,6
---
30 bar
90 bar
Keine Express-Lieferung
157,68 €*
Reel:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

High Pressure Hose, Hydraulic Hose

This hose, reinforced with polyester braided yarn, has high pressure resistance and can be used for pneumatic and hydraulic systems, pneumatic tools, spray guns, and car wash guns.


Printing:
YES
Resistance:
Soft PVC
Color:
Opaque Black
Yarn:
Polyester Yarn
Food Grade:
NO
REACH:
1907/2006/EC
RoHS:
2015/863
Material:
Soft PVC
Temperature:
-20°C to +65°C
Working Pressure / Burst Pressure:
20°C, Medium Water
Tolerance:
DIN 16940
Delivery Note: Section quantities below roll lengths will be delivered as one length.


  • 3-layer, solid black full jacket made of soft PVC
  • High pressure resistance
  • Temperature range -10°C to +60°C
  • Despite excellent strong construction, lightweight and flexible with high abrasion resistance
  • Manufactured according to ISO 3994 standard

Bend Radius

The Bend Radius

The bend radius is a recommendation for how tightly you can install the hose in a half-bend without kinking or damaging the hose. This maximum guideline is significantly influenced by the temperature of the environment and the hose itself during installation!

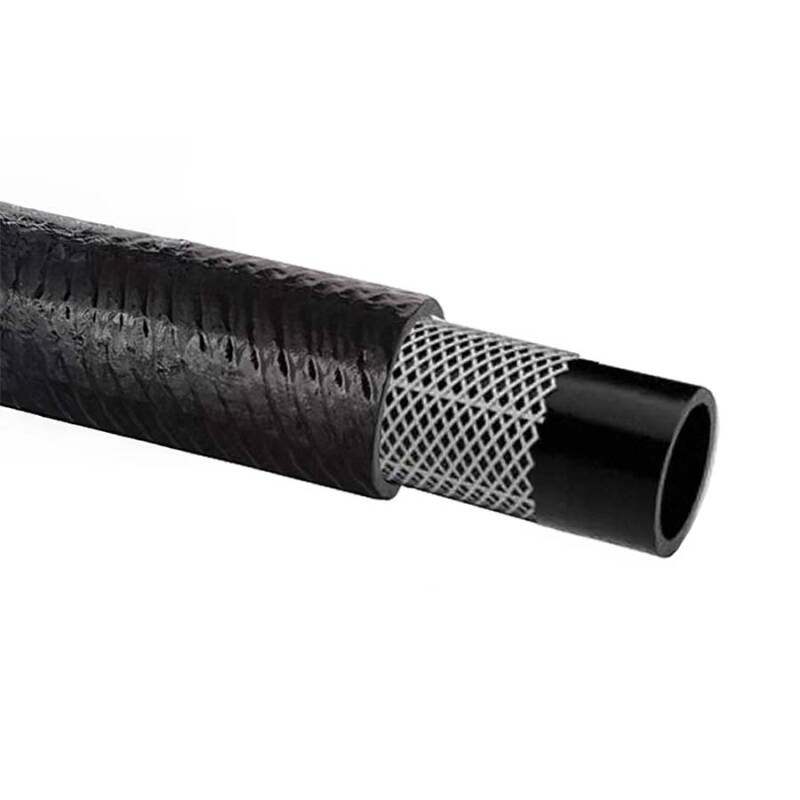

Suction/Pressure Hose Cross-Section

High Pressure Hose, Hydraulic Hose


  • High pressure hose, hydraulic hose

  • Solid black, soft PVC inner layer

  • Polyester braided yarn reinforcement

  • Solid black, soft PVC outer wall
