All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description
The Original from Sweden by Norma Group:

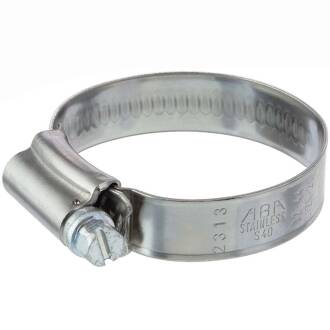

ABA Nova Hose Clamp W4 Type Industry, Chrome-Nickel Steel, Stainless Steel V2A
ABA Nova by Norma Group - The Facts
ABA Nova clamps are equipped with a newly designed housing that allows for more even distribution of high clamping force and ensures secure guiding of the band. The short housing saddle also ensures optimal pressure on the hose. The clamps of the new generation offer a clamping force reserve that prevents bursting, thus ensuring a reliable and tight connection. Additionally, the smooth underside and rounded band edges are hose-friendly and reduce the risk of leaks.- Weld-free and rivet-free housing
- No tipping during tightening
- Short housing saddle ensures optimal form-fit
- Hexagon screw with slot
- Embossed band with raised edges prevents damage to the hose wall
- Band width 9/12mm
- W4 - Tension band, housing, and screw made of stainless steel SS 2333/AISI 304, V2A
- Robust industrial quality
- Often overlooked ... for the correct selection of the hose clamp, the outside diameter of the hose is decisive!
DOWNLOADRoHS Confirmation HTC
