Description
Hunter HCC irrigation computer
The flagship irrigation controller with W-LAN operation
The next generation HCC controller offers the powerful irrigation management features of the industry-leading Hydrawise platform for high-end residential, commercial and public projects. The HCC offers a range of convenient features for monitoring larger projects - all at the simple click of a button.

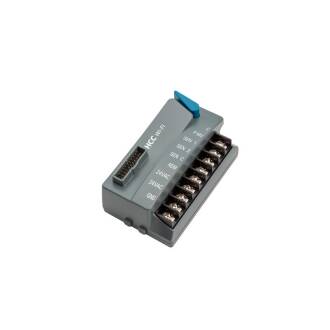

The HCC combines the popular features of the ICC2 controller with the automatic, weather-based adjustments of Hydrawise programming to create a smart and economical solution for commercial landscape maintenance. The HCC can control up to 38 stations (only possible with expansion modules) and operate any two stations simultaneously. The practical modular design of the controller allows for quick expandability with the same 4 and 8 output modules.
With the built-in milliamp sensor, troubleshooting faulty wiring is a breeze. Easily install an HC flow meter to accurately monitor flow, avoid wasted water and prevent landscape damage.
- Number of stations: 8 to 38
- Standard programming mode allows 6 independent watering programs and 6 start times per program
- Advanced programming mode enables zone-based program design with up to 6 start times in total
- Any 2 programs or stations can be run simultaneously, allowing for more efficient watering
- 2 sensor inputs available, both of which can be used with Clik sensors and HC flow meters
- 1 P/MV output for pump start relay or activation of a main valve
- Wi-Fi enabled for quick connection to the Hydrawise software
- Full-color touchscreen display with 7 cm screen diagonal for easy programming on the front panel
- Integrated milliamp sensor for detecting defective wiring and warning messages
Technical data
- Transformer input: 120 or 230 VAC
- Transformer output (24 VAC): 1 ampere
- Station output (24 VAC): 0.56 amps
- P/MV output (24 VAC): 0.28 amps
- Sensor inputs: 2
- Dimensions: 35x30x13
- Operating temperature: -18°C to 60°C
- Approval: CE, IP44
DOWNLOAD Hunter HCC Overview
DOWNLOAD Hunter HCC brochure
READ MORE Manufacturer website
