Hunter HCC with WiFi irrigation controller

SKU: BW4017
Auswahl Steuerzone / Lieferland
from
126,07 €
incl. 19% VAT , plus shipping costs
  • Low stock level
View item details in PDF
How to measure a threaded fitting
  • Low stock level
   Variants

Product picture
Item no.
Variation
Price
Quantity

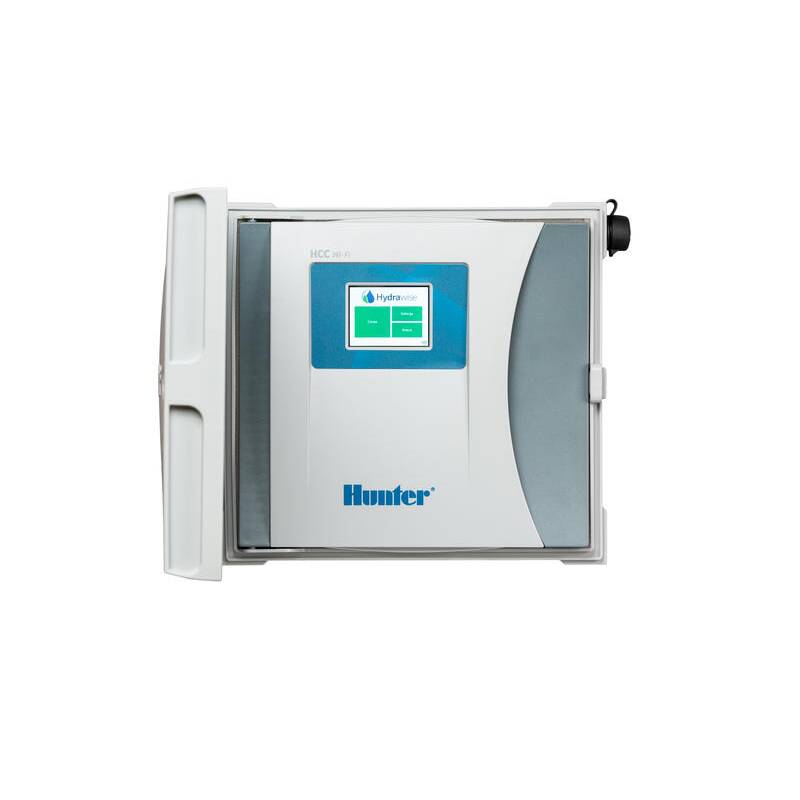

Hunter HCC with WiFi irrigation controller 8 stations
BW4017.HCC.008
HCC mit 8 Stationen
716,59 €*
pc.:
Hunter HCC extension unit ICM-400 4 stations
BW4017.ICM.400
Erweiterungsmodul für 4 Stationen
126,07 €*
pc.:

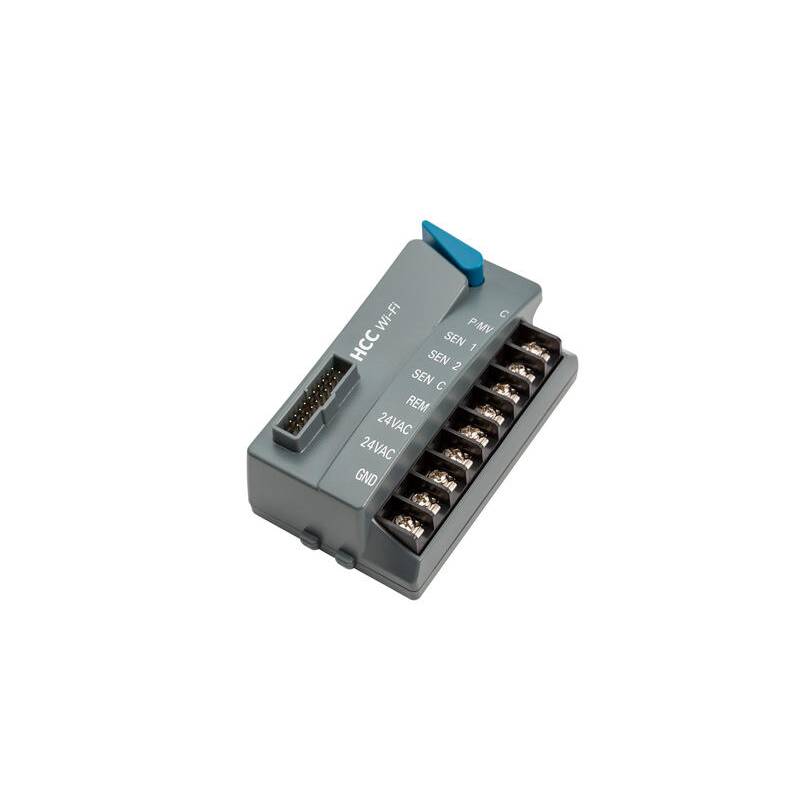

Hunter HCC ICM-800 8-station expansion module
BW4017.ICM.800
Erweiterungsmodul für 8 Stationen
253,28 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Hunter HCC irrigation computer

The flagship irrigation controller with W-LAN operation


The next generation HCC controller offers the powerful irrigation management features of the industry-leading Hydrawise platform for high-end residential, commercial and public projects. The HCC offers a range of convenient features for monitoring larger projects - all at the simple click of a button.
The HCC combines the popular features of the ICC2 controller with the automatic, weather-based adjustments of Hydrawise programming to create a smart and economical solution for commercial landscape maintenance. The HCC can control up to 38 stations (only possible with expansion modules) and operate any two stations simultaneously. The practical modular design of the controller allows for quick expandability with the same 4 and 8 output modules.

With the built-in milliamp sensor, troubleshooting faulty wiring is a breeze. Easily install an HC flow meter to accurately monitor flow, avoid wasted water and prevent landscape damage.



  • Number of stations: 8 to 38
  • Standard programming mode allows 6 independent watering programs and 6 start times per program
  • Advanced programming mode enables zone-based program design with up to 6 start times in total
  • Any 2 programs or stations can be run simultaneously, allowing for more efficient watering
  • 2 sensor inputs available, both of which can be used with Clik sensors and HC flow meters
  • 1 P/MV output for pump start relay or activation of a main valve
  • Wi-Fi enabled for quick connection to the Hydrawise software
  • Full-color touchscreen display with 7 cm screen diagonal for easy programming on the front panel
  • Integrated milliamp sensor for detecting defective wiring and warning messages

Technical data

  • Transformer input: 120 or 230 VAC
  • Transformer output (24 VAC): 1 ampere
  • Station output (24 VAC): 0.56 amps
  • P/MV output (24 VAC): 0.28 amps
  • Sensor inputs: 2
  • Dimensions: 35x30x13
  • Operating temperature: -18°C to 60°C
  • Approval: CE, IP44


DOWNLOAD Hunter HCC Overview
DOWNLOAD Hunter HCC brochure
READ MORE Manufacturer website
