Hunter I-25 rotor

SKU: BW5018

Auswahl Steuerzone / Lieferland

from

0,96 €

incl. 19% VAT , plus

Available immediately

View item details in PDF

How to measure a threaded fitting

This item has variations. Please select the requested variation.

Available immediately

Variants

Product picture

Item no.

Variation

Total height

Aufsteigerhöhe

Sprinkler connection

exposed diameter

Price

Quantity

BW5018.I25.K10

I-25-04: 10cm pop-up

20 cm

10 cm Kunststoff

1" (33,25mm)

5 cm

65,93 €^*

BW5018.I25.E10

I-25-04-SS-B: 10cm pop-up

20 cm

10 cm Edelstahl

1" (33,25mm)

5 cm

87,45 €^*

BW5018.I25.E15

I-25-06-SS-B: 15cm pop-up

22 cm

15 cm Edelstahl

1" (33,25mm)

5 cm

93,72 €^*

BW5018.000.001

Aufsteigehaltering für Düseneinbau

---

1,61 €^*

BW5018.DÜS.GEL

Esatzdüse "Gelb"

---

1,52 €^*

BW5018.DÜS.GRA

Esatzdüse "Grau"

---

1,61 €^*

BW5018.DÜS.SWZ

Esatzdüse "Black"

---

1,74 €^*

BW5018.DÜS.SET

Düsenset für I-25 beinhaltet Düsennr. #7,#10,#15,#20,#25

---

5,21 €^*

BW5018.I25.SLS

Einstellschlüssel für Hunter Regner

---

0,96 €^*

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

Description

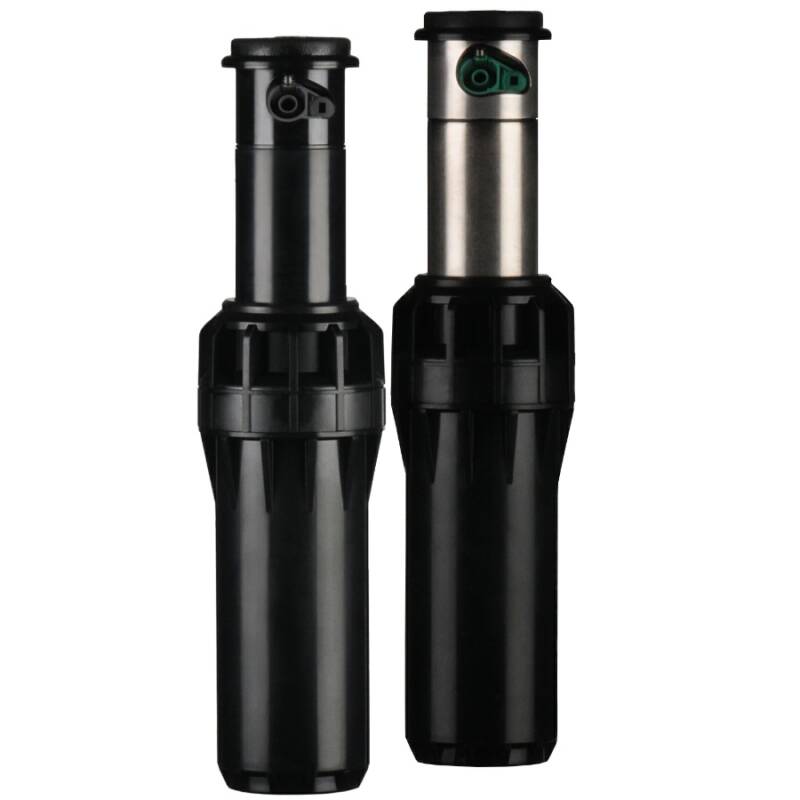

Hunter geared sprinkler I-25 series

This robust geared sprinkler is suitable for any commercial application - the stainless steel version is a visual highlight in your garden or commercial facility!

The I-25 is very robust, extremely reliable and efficient in performance. It covers throwing distances from 11.9 to 21.6 m for a wide range of applications under different site conditions. The compact, robust design comes with an optimal stainless steel riser for best durability. The integrated shut-off valve and a wide range of high-performance nozzles round off the range. Hunter's efficient and robust I-25 geared sprinkler is designed for long life in daily use.

All I-25s come with a standard nozzle set consisting of nozzles 7, 10, 15, 20 and 25.

Model in plastic and stainless steel (riser)
Sector adjustment 50 to 360 degrees
Throw range 11.9 - 21.6m
Flow rate 0.82 - 7.24m³/hour
Flow rate 13.6 - 12.07l/min.
Rubber protective cover fitted at the factory
Sector adjustment through the upper part
Fast sector locking mechanism
Water-lubricated gearbox
Available nozzles: 12
Nozzle range: No. 4 to No. 28

Automatic sector return

This function causes a return to the originally set sector, even if the head has been turned manually. This ensures protection against vandalism in any environment.

BR0027 Detail

Vandalism-protected decoupling mechanism

Drive mechanism protected according to the slip clutch principle, which enables manual rotation of the head without damage.

BR0027 Detail

Partial and full circle in one model

Patented continuous 360° mechanism for partial and full circle in one model from 50° to 360°.

BR0027 Detail

Color-coded nozzles

The nozzles are easier to distinguish, provide a quick overview and speed up installation

BR0027 Detail

Stainless steel riser

Stainless steel is the ideal choice for difficult ground conditions, unpredictable climatic conditions or heavy use - or to put it simply: it just looks great!

BR0027 Detail

Outlet stop valve (4.56 M)

As air in the system can cause long-term damage to the gear sprinklers and pipes, the drain stop valve prevents the pipes from draining when the system is switched off. This saves water, prevents damage and ensures a longer service life for the system.

BR0027 Detail
