Hunter PGJ rotor

from
1,17 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Product picture
Item no.
Variation
Total height
Aufsteigerhöhe
Sprinkler connection
exposed diameter
Price
Quantity

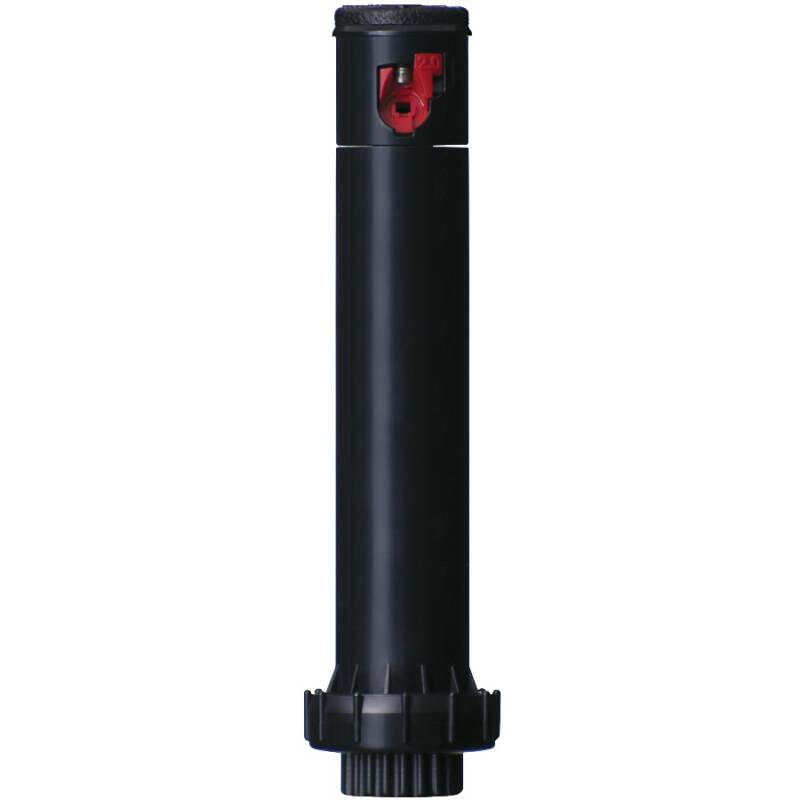

Hunter PGJ rotor PGJ-00-A: shrub
BW5015.PGJ.F00
PGJ-00: festes Modell
18 cm
---
1/2" (20,95mm)
3 cm
17,43 €*
pc.:

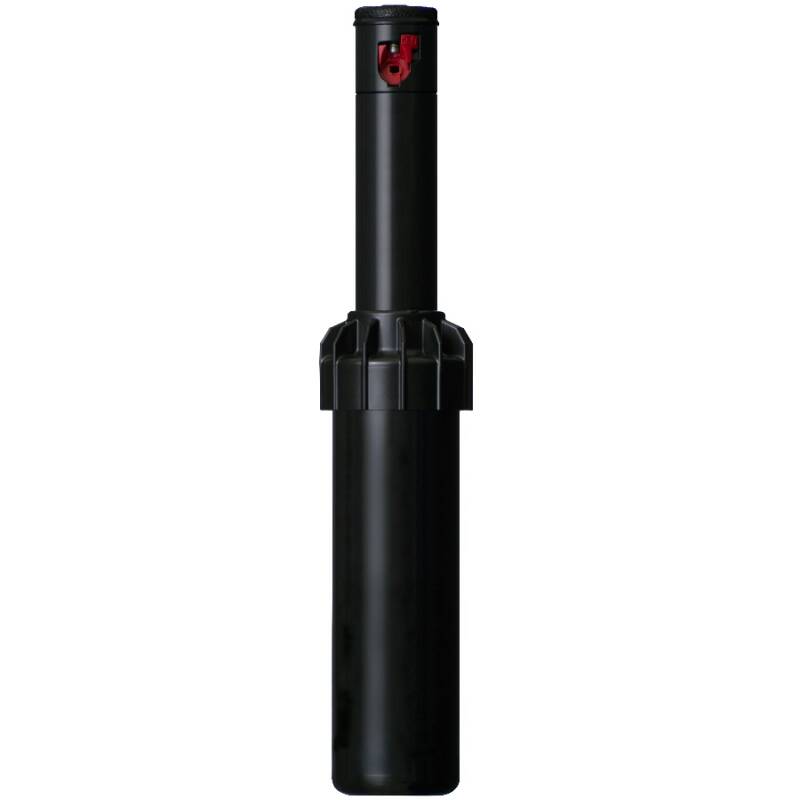

Hunter PGJ rotor PGJ-04-A: 10cm Pop-Up
BW5015.PGJ.K10
PGJ-04: 10cm pop-up
18 cm
10cm
1/2" (20,95mm)
3 cm
14,30 €*
pc.:

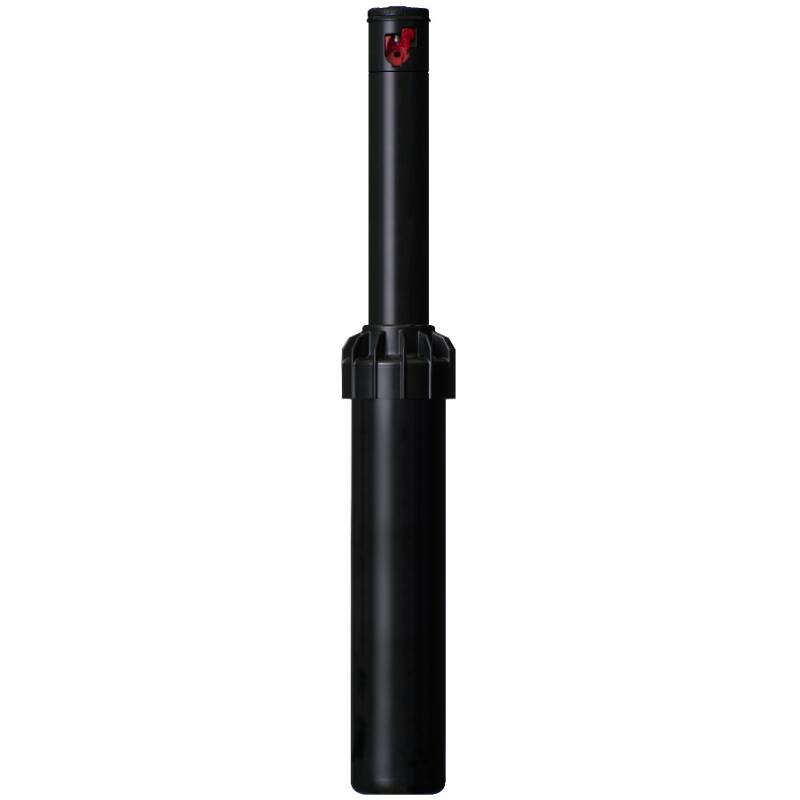

Hunter PGJ rotor PGJ-06-A: 15cm Pop-Up
BW5015.PGJ.K15
PGJ-06: 15cm pop-up
23cm
15cm
1/2" (20,95mm)
3 cm
32,92 €*
pc.:

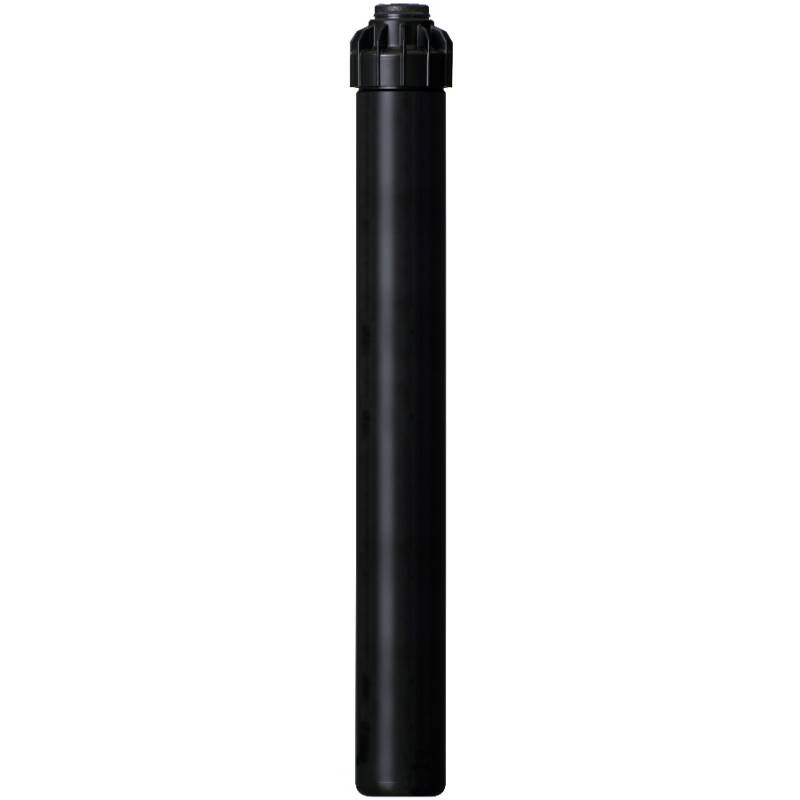

Hunter PGJ rotor PGJ-12-A: 30cm Pop-Up
BW5015.PGJ.K30
PGJ-12: 30cm pop-up
41cm
30cm
1/2" (20,95mm)
3 cm
39,73 €*
pc.:

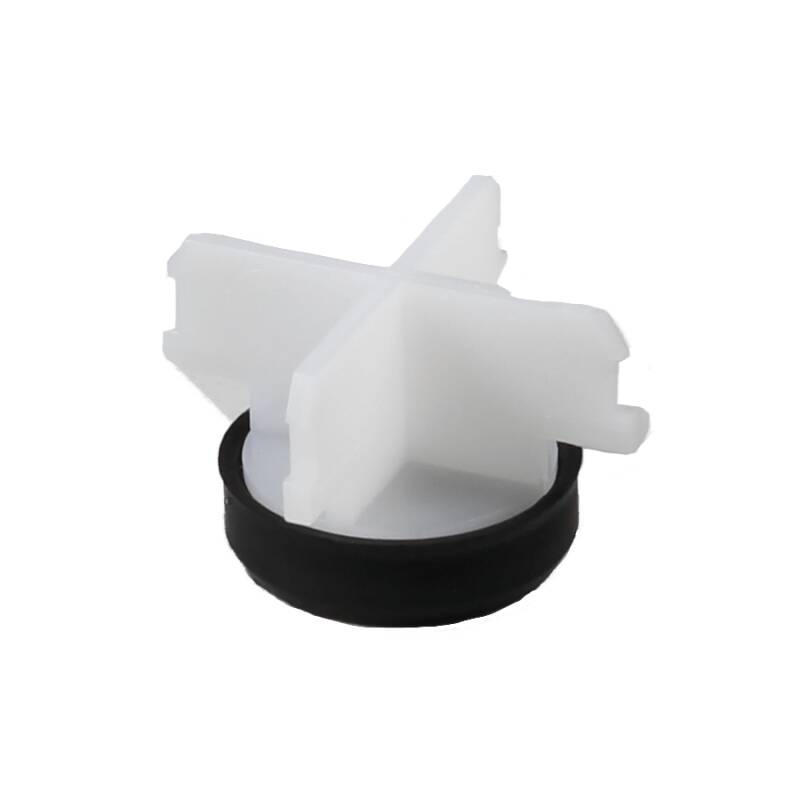

Hunter PGJ rotor Drain Check Valve
BW5015.PGJ.ALS
Auslaufsperrventil (bis 2,1m Höhenunterschied)nicht für PGJ-00
---
---
---
---
1,50 €*
pc.:

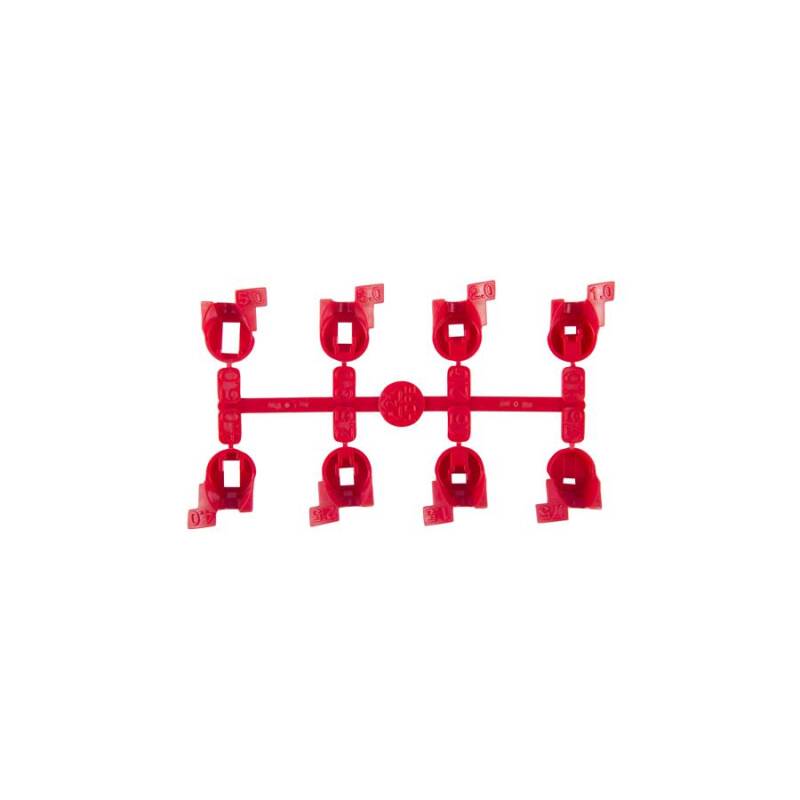

Hunter PGJ rotor Noozle set
BW5015.DÜS.SET
PGJ Ersatzdüsen
---
---
---
---
1,17 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Hunter PGJ series gear sprinkler

The PGJ sprinkler has all the benefits of a gear sprinkler in a compact spray nozzle format.

The PGJ is designed to provide applications that normally require spray nozzles with all the benefits of a geared sprinkler. Its many features include an easy-to-install and replaceable set of water-efficient nozzles, easy sector adjustment and a rubber cover that ensures safety and durability. The PGJ can work in conjunction with larger geared sprinklers to combine large and small areas into a single zone, providing a level of practicality and efficiency that sprinklers cannot match. Used in the right application, the PGJ allows you to achieve more efficient and cost-effective performance with fewer sprinklers


  • Throw distance: 4.3 - 11.6m
  • Flow rate: 0.13 - 1.23m³/hour
  • Flow rate: 2.2 - 20.5 l/h
  • Sprinkler connection 1/2" internal thread
  • Sector adjustment: 40 to 360 degrees
  • Available nozzles: 8
  • Nozzle range: 0.5 to 4.0
  • Factory-fitted standard nozzle: 2.0
  • Factory fitted rubber protection cover
  • Sector adjustment through the upper part
  • Fast sector locking mechanism
  • Water-lubricated gearbox

Including 8 nozzles

Eight nozzles between 0.5 and 4.0 . cover the entire output range of the PGJ. The PGJ gearbox sprinkler is equipped with nozzle 2.0 as standard.

BR0025 Detail


Head and slotted locking screw

You can use a slotted screwdriver or the Hunter adjustment wrench to make adjustments easily and conveniently as required.

BR0025 Detail


Outlet stop valve (4.56 M) (not included in the scope of delivery!)

Since air in the system can cause long-term damage to the gear sprinklers and pipes, the drain stop valve prevents the pipes from draining when the system is switched off. This saves water, prevents damage and ensures a longer service life for the system.

BR0025 Detail



DOWNLOAD Hunter PGJ article data
DOWNLOAD Hunter PGJ operating instructions
DOWNLOAD Hunter PGJ brochure
READ MORE Hunter PGJ series geared sprinklers - all the facts, all the figures
DOWNLOAD the thread identification - or why 1" is not 25.4mm
