Hunter Pro-Spray spray sprinkler

from
1,99 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Product picture
Item no.
Variation
Connection
Aufsteigerhöhe
Total height
exposed diameter
Price
Quantity

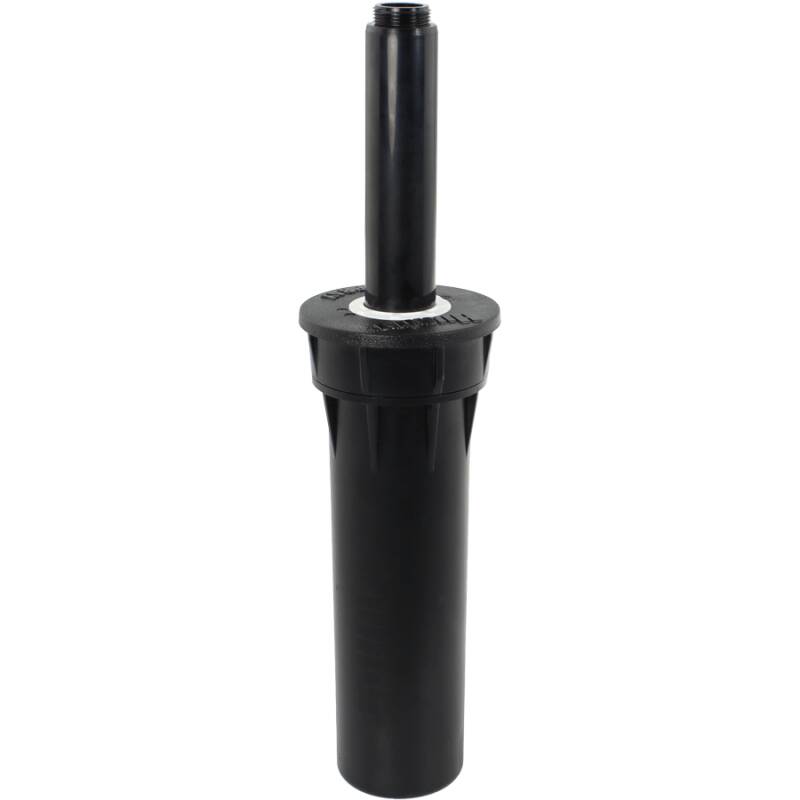

Hunter Pro-Spray spray sprinkler
BW5012.P00.K05
PROS-02: 5cm pop-up
(1/2" 20,95mm)
5cm
10cm
5,7cm
4,17 €*
pc.:

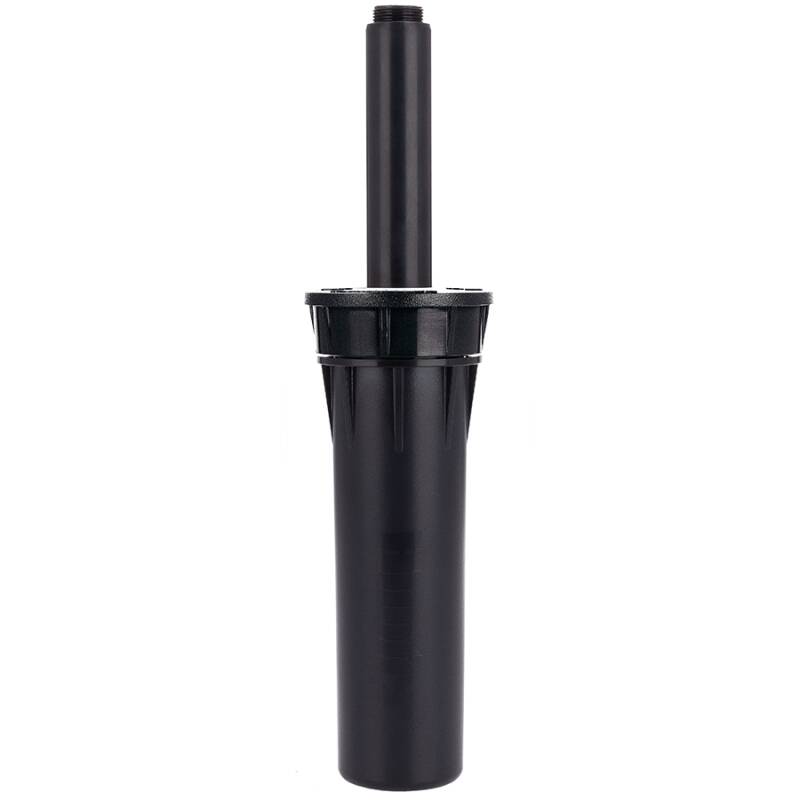

Hunter Pro-Spray spray sprinkler PROS-04: 10cm Pop-Up
BW5012.P00.K10
PROS-04: 10cm pop-up
(1/2" 20,95mm)
10cm
15,5cm
5,7cm
3,45 €*
pc.:
Hunter Pro-Spray spray sprinkler PROS-06: 15cm Pop-Up
BW5012.P00.K15
PROS-06: 15cm pop-up
(1/2" 20,95mm)
15cm
22cm
5,7cm
14,16 €*
pc.:

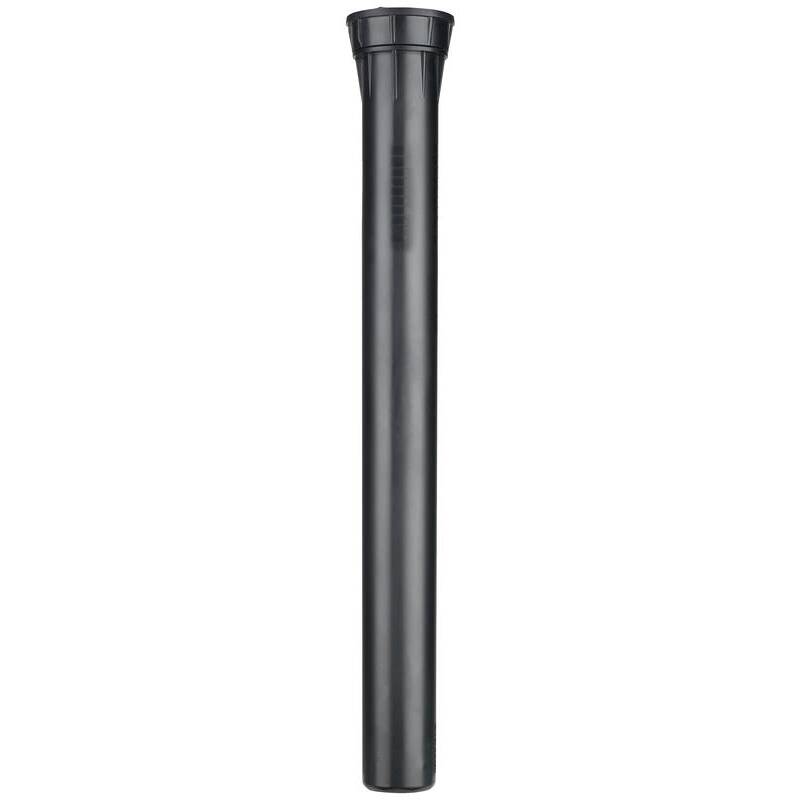

Hunter Pro-Spray spray sprinkler PROS-12: 30cm Pop-Up
BW5012.P00.K30
PROS-12: 30cm pop-up
(1/2" 20,95mm)
30cm
41cm
5,7cm
22,22 €*
pc.:

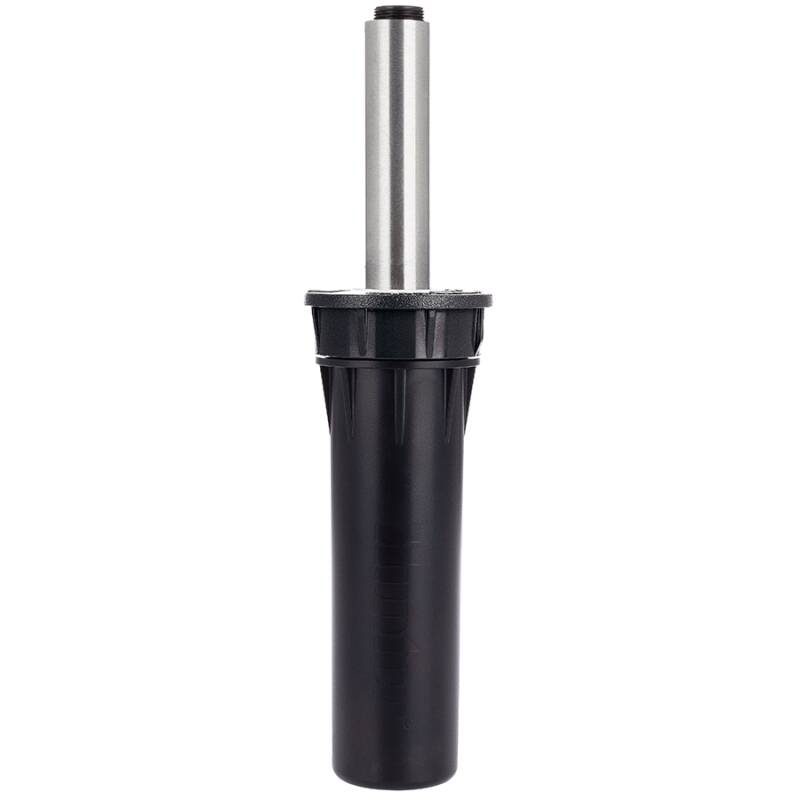

Hunter Pro-Spray spray sprinkler
BW5012.P00.E15
PROS-06: 15cm pop-up Edelstahl
(1/2" 20,95mm)
15cm
22cm
5,7cm
33,68 €*
pc.:

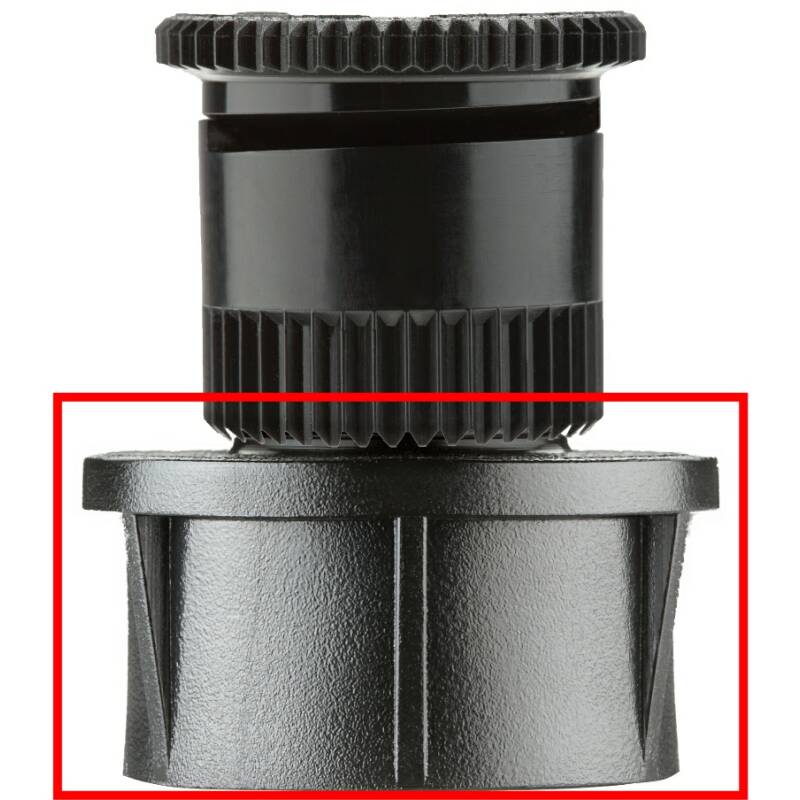

Hunter Pro-Spray spray sprinkler PROS-00 (fix)
BW5012.P00.F00
PROS-00
(1/2" 20,95mm)
---
4 cm
---
1,99 €*
pc.:

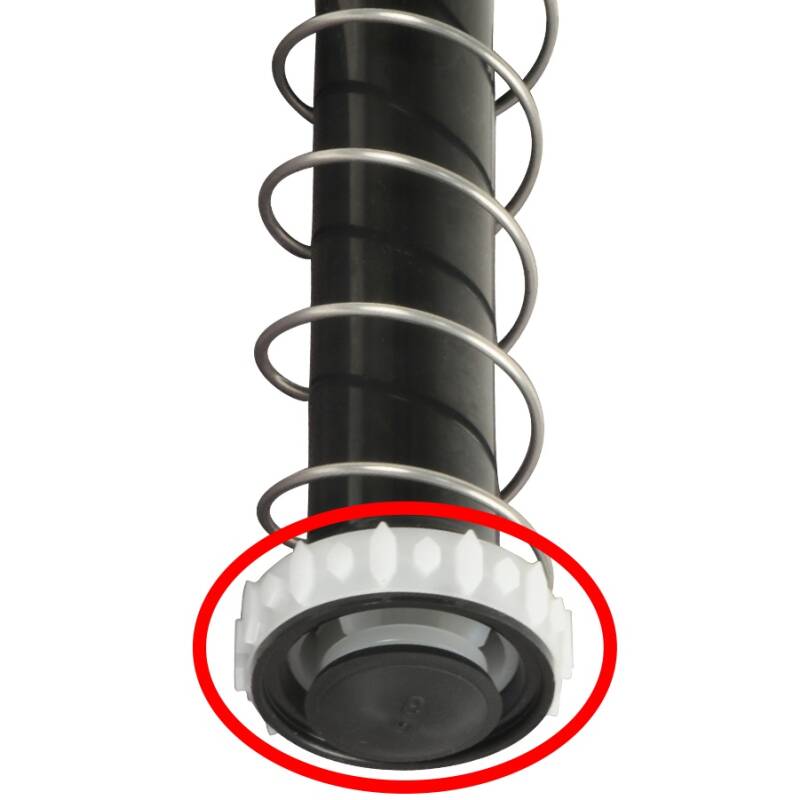

Hunter Pro-Spray spray sprinkler check valve
BW5012.VSR.ALS
Auslaufsperrventil
---
---
---
---
2,20 €*
pc.:

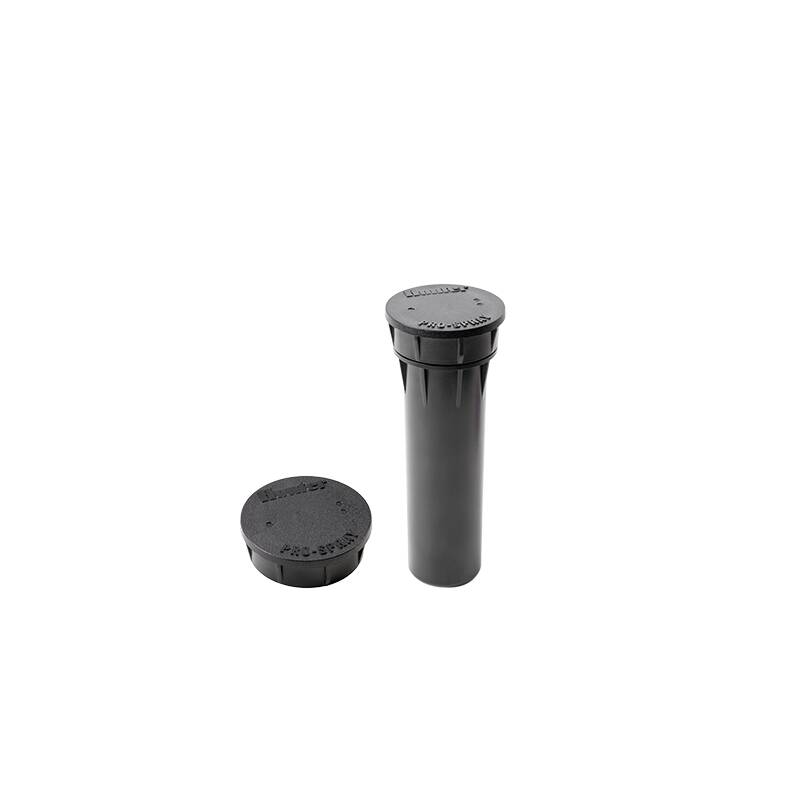

Hunter Pro-Spray spray sprinkler SHUT-OFF CAP
BW5012.VSR.VSK
Verschlusskappe
---
---
---
5,7cm
3,00 €*
pc.:

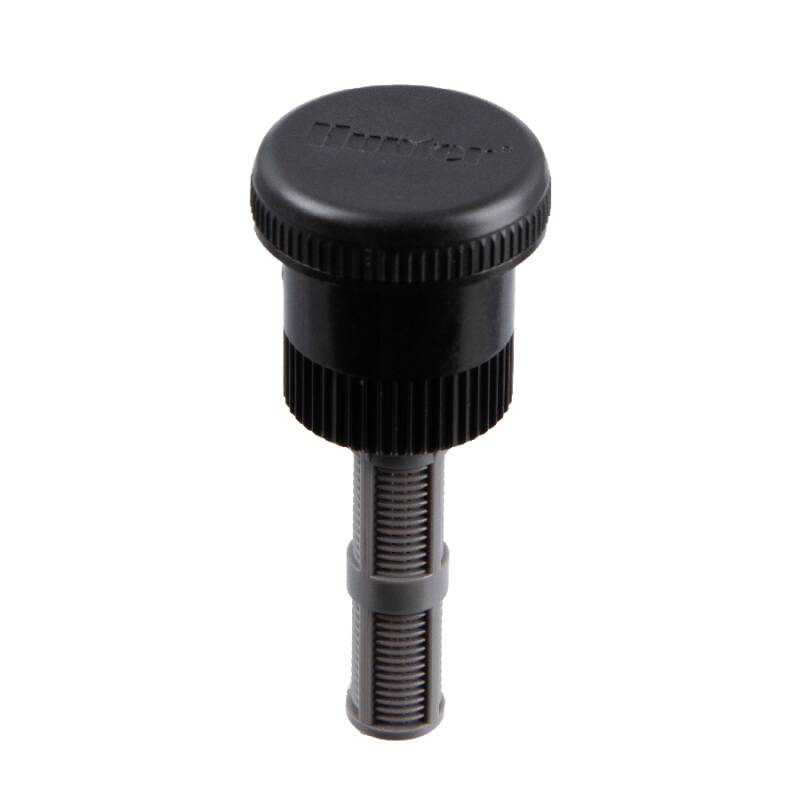

Hunter Pro Spray Pop-up Sprinkler Nozzle
BW5012.VSR.ABS
Hunter Absperrdüse
---
---
---
---
2,69 €*
pc.:
riser seal
BW5012.VSR.ASD
Aufsteigerdichtung 472300SP
---
---
---
---
2,50 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

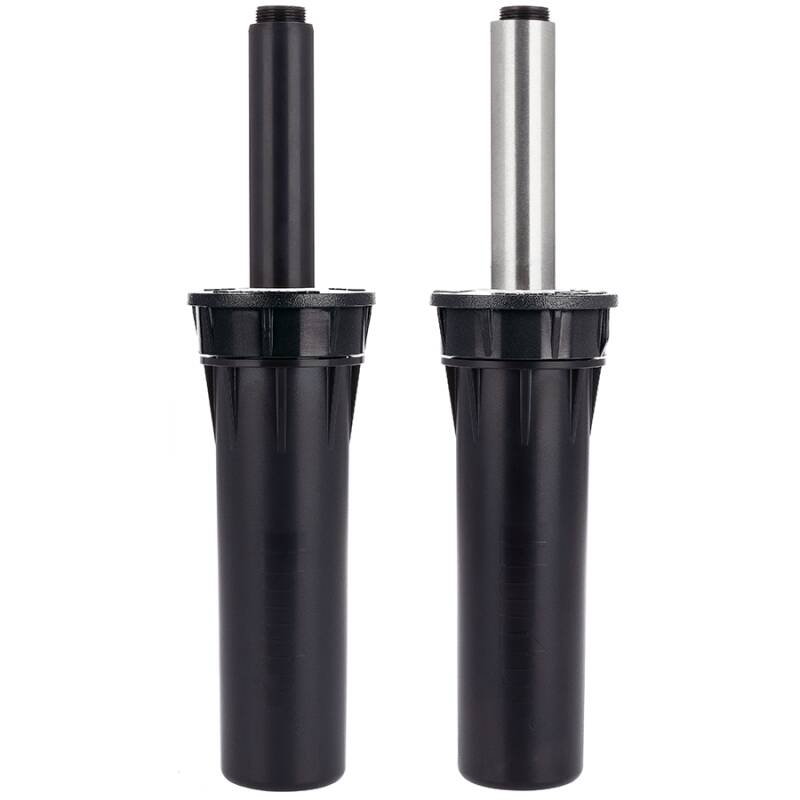

Hunter Pro-Spray pop-up sprinkler

The robust and durable sprinkler for private and commercial green spaces

Hunter Pro-Spray sprinklers (supplied without nozzles) are precision engineered to provide long-term, reliable performance for residential and commercial applications. The sprinkler can be adjusted during spraying. The Hunter Pro-Spray is suitable for adjustable nozzles, fixed angle nozzles and MP rotators. All nozzles with internal threads of all common brands can be mounted on the adapter for the standpipe.


PROS-00 illustration including spray nozzle (not included)


The optional non-return valve prevents leaks around the lower nozzles up to a height difference of 2.1 meters.


BR0004 Rückschlagventil Vorteil
BR0004 Rückschlagventil Vorteil
BR0004 Rückschlagventil Vorteil

Leak-free wiper seal

This pressure-activated, multifunctional wiper seal was developed to reduce water loss. The design of the wiper seal protects the riser during operation and prevents the ingress of dirt particles when retracted, making it less likely that the riser will get stuck.

BR005 Anwendung

Leak-free housing cap at high pressure

The Pro-Spray line includes a rib-reinforced housing for heavy-duty use and a robust cover cap that can withstand extremely harsh environmental conditions, such as heavy foot traffic or improper operation of heavier machinery. In addition, a multi-threaded support structure ensures high strength in the clamping mechanism between the cap and housing, so that the sprinkler can withstand high overpressure at the inlet.

BR005 Anwendung

Spring for heavy-duty use

The extremely strong return spring ensures trouble-free retraction under all conditions.

BR005 Anwendung

Innovative seal design

Temperature differences and fluctuating pressures are often the cause of a loose housing cap. In most spray nozzle housings, O-rings are used for sealing, but these become leaky after even a slight loosening of the housing cap. The Pro-Spry housing cap can be opened up to 360° without the sprinkler leaking, regardless of the pressure.


DOWNLOAD Hunter Pro-Spray instruction manual
DOWNLOAD Hunter Pro-Spray operating data cutsheet
READ MORE Hunter Pro-Spray all facts & figures
DOWNLOAD the thread identification - or why 1" is not 25.4mm

BR0004 Beispiel 1
BR0004 Beispiel 2
BR0004 Beispiel 3
