Hunter Soil-Clik moisture sensor

SKU: BW4035
Auswahl Steuerzone / Lieferland
159,32 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
Price
Quantity
BW4035.SOI.CLK
Soil Clik
159,32 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

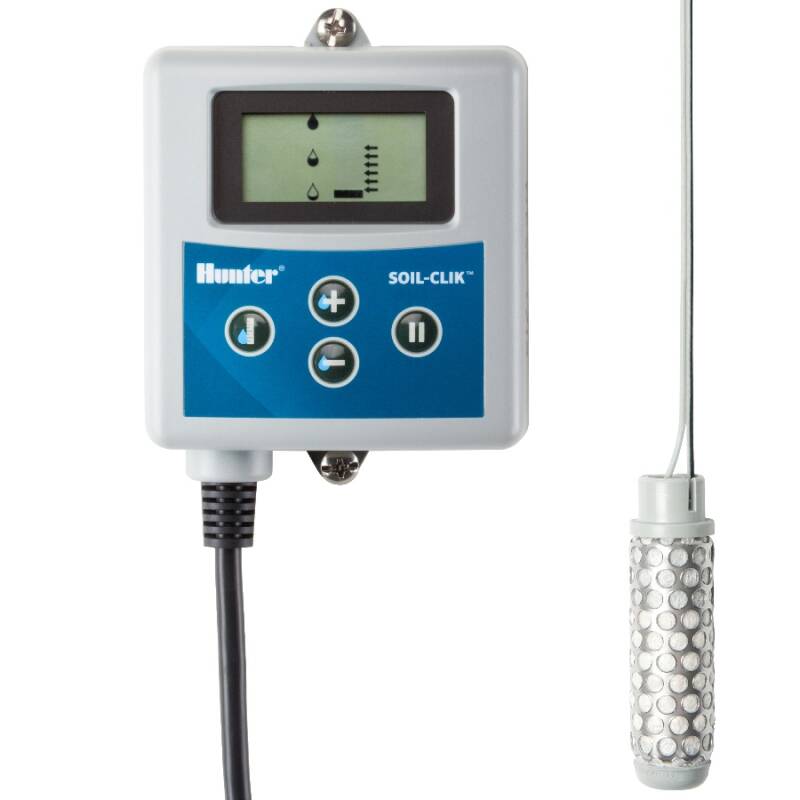

Moisture sensor Soil moisture sensor Hunter Soil-ClikTM measuring system

The Soil-ClikTM switches off the irrigation when the required soil moisture has been reached.


The Soil-ClikTM system makes it easy to measure soil moisture. The sensor's proven technology measures soil moisture within the root zone. To avoid unnecessary water loss, the soil moisture is determined and the irrigation system is switched off when the predefined moisture level is reached.


It consists of two components. A soil moisture sensor, which is installed in the ground, and an electronic module as the link between the control unit and the sensor. Installation is simple: the sensor is installed in the root zone of the plants to be watered. The distance between the sensor and the programming module can be up to 300m. The necessary settings and adjustments can be made on the module using a simple button operation. Moisture measurement is activated immediately.
The module is suitable for connection to all AC (alternating current) control units and AC control units from other manufacturers using the 80cm long control cable.


Soil-ClikTM itself is already an active water-saving component and, in conjunction with SolarSync, a sustainable, environmentally friendly water-saving system.


Features:

  • Soil moisture level and status at a glance
  • The bypass button allows the moisture sensor to be bypassed at the touch of a button
  • Low-voltage supply via the control unit
  • 5-year guarantee from the manufacturer

Operating data:

  • Power consumption: 24 VAC, 100mA max.
  • Cable to measuring probe: max. 300m - not included in scope of delivery
  • max. distance of the control module to the control unit: 2m
  • Output: Normally closed, dry contact

Soil-ClikTM control module:

  • height 11.4cm - width 8.9cm - depth 3.0cm

Soil-ClikTM measuring probe:

  • Diameter 2.0cm - Height 8.3cm

Hunter Soil Click moisture sensor - the active water saving component


The Soil Click moisture sensor from Hunter is connected via the Hunter sensor input or by interrupting the ground wires in standard 24 VAC irrigation systems

BR0203 Hunter Soil Click Feuchtesensor

Switches off the irrigation when the required soil moisture has been reached


The Hunter Soil Click moisture sensor is easy to install and the soil moisture probe can be installed up to 300m away from the controller.

BR0203 Hunter Soil Click Feuchtesensor

DOWNLOAD Hunter Soil Click moisture sensor cutsheet
DOWNLOAD Hunter Soil Click moisture sensor brochure
DOWNLOAD Hunter Soil Click moisture sensor user manual
