Hunter flow indicator for Hunter HC/PRO-HC

from
178,06 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Product picture
Item no.
Variation
Connection
Price
Quantity

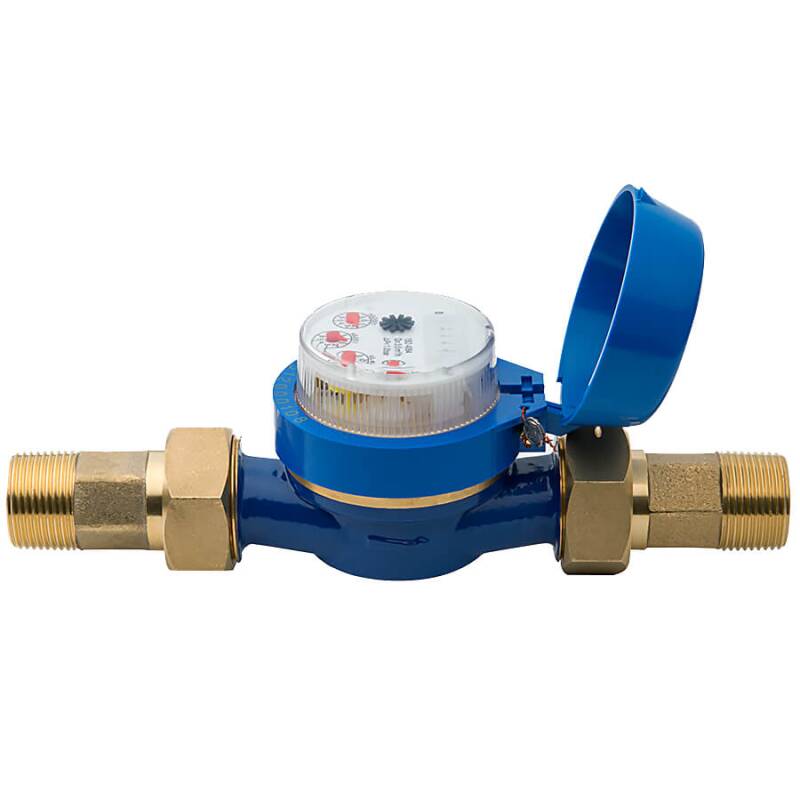

Hunter flow indicator for Hunter HC/PRO-HC HC-075-FLOW-B
BW4030.000.025
HC-075-FLOW-B
3/4" (26,44mm)
261,95 €*
pc.:
Hunter flow indicator for Hunter HC/PRO-HC HC-100-FLOW-B
BW4030.000.032
HC-100-FLOW-B
1" (33,25mm)
271,89 €*
pc.:

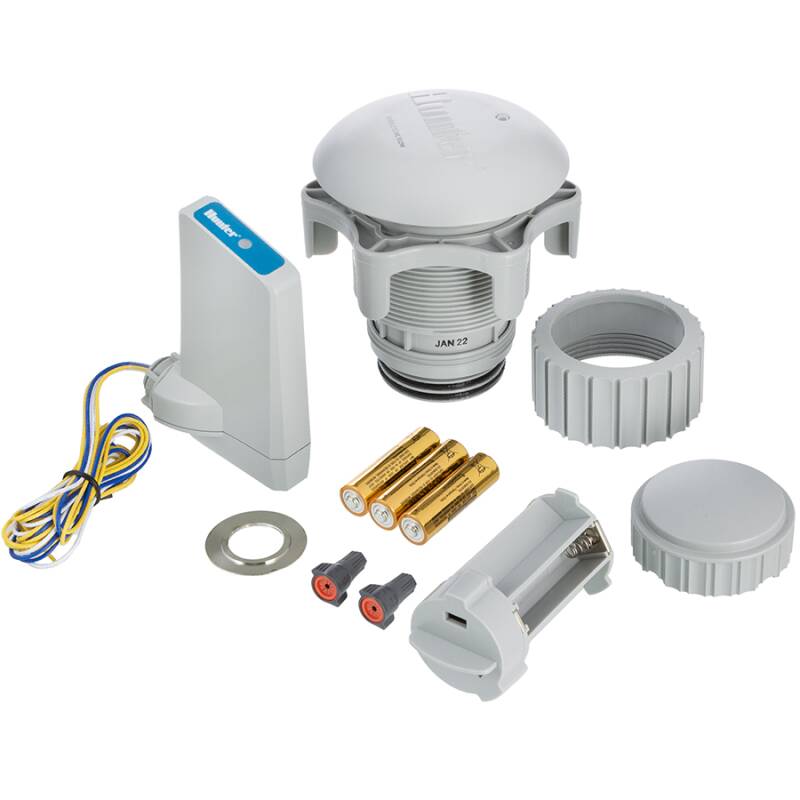

Hunter flow indicator for Hunter HC/PRO-HC Wifi-Kit
BW4030.0NA.352
W-HC-FLOW-INT
---
178,06 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Hunter HC Pulse Flow flow meter

Capture, monitor and report critical flow zone data and total system flows with this robust and easy-to-install flow sensor.

This easy-to-install HC flow meter is now available with an extended range of options for larger pipe sizes and offers better monitoring of flow rates using Hydrawise-enabled WiFi control devices. In conjunction with the Hydrawise platform, the HC flow meter is a convenient option to detect, monitor and report important flow zone data and flow totalization values.


By integrating an HC flow meter into a Hydrawise system installation, you gain additional protection for your system. So you can be sure that your investment is monitored, the plants are healthy and your green space is always in optimum condition. Thanks to the extended range, this flow meter offers authorized dealers a good opportunity to further expand their business by being able to react immediately to problems. For landscape architects, the HC flow meter offers additional security that their carefully planted plants are well cared for over the long term.


The HC flow meter can be connected to Hydrawise-enabled control units.

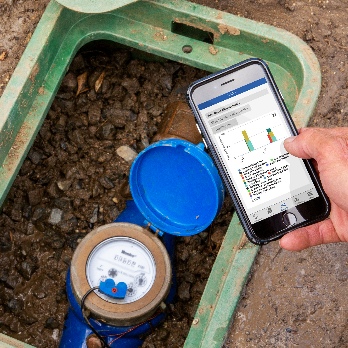

Your system under control via the Hydrawise app

With the Hydrawise app, you always have your system under control:

  • Check the flow rates per irrigation circuit.
  • Abnormal flow rates (leakage) are reported via a warning message.

Hunter HC Pulse Flow mit Hydrawise-App

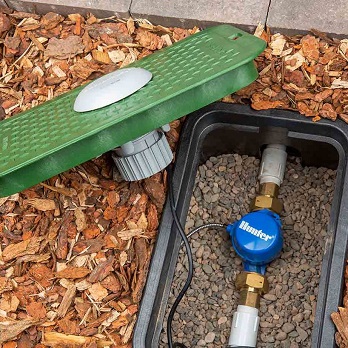

Set for wireless communication - ideal for retrofitting to already installed irrigation systems

  • Sends flow rates at station level and total consumption wirelessly from the sensor to the control unit, without laying cables or earthworks
  • Battery-powered transmitter connects to flow meter to measure and transmit flow rates and total consumption
  • Receiver is powered by host controller and transmits flow data from sensor/transmitter to controller and cloud software
  • Range 152 m from transmitter to receiver (line of sight)

Hunter W-HC-FLOW-INT



Main advantages:

  • Compatible with HC, HPC, Pro-HC and HCC;
  • Reports flow rates per zone
  • Sends automatic alerts for high, low or abnormal flow rates
  • The flow logs in Hydrawise provide information on the water consumption of the entire system and individual zones, enabling precise water cost and consumption planning
  • Robust brass connection fittings for easy installation or removal for winterizing
  • The flow rate can be read off analogously on the measuring device and the rotary dial indicates any leaks
  • Dimension 3/4" version: 232 x 80 x 80mm (LxWxH)
  • Dimension 1" version: 262 x 80 x 93mm (LxWxH)

DOWNLOAD Hunter HC flow meter data sheet cutsheet
DOWNLOAD Hunter HC flow meter quick guide cutsheet

© Picture credits Hunter Industries
