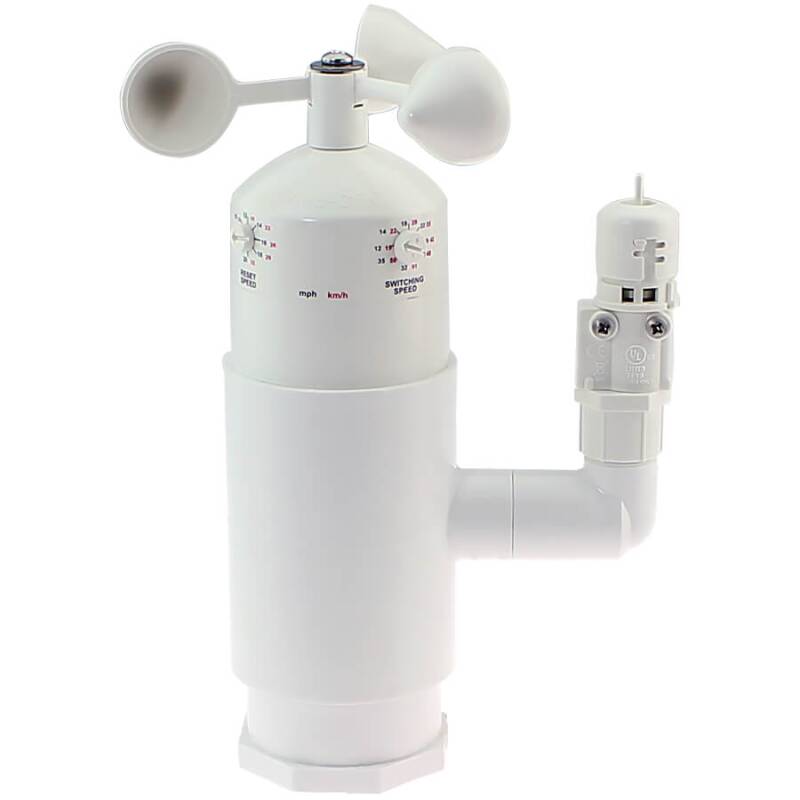

Hunter Mini Weather Station MWS
MWS helps any system cope with wind and rain conditions.
Ensuring efficient irrigation means being prepared for changing weather conditions. Hunter's Mini Weather Station helps system operators be as prepared as possible by combining Hunter's wind and rain sensors into one easy-to-use unit. The Mini-Clik rain sensor shuts off irrigation when it rains and leaves it off until the amount of precipitation that has occurred is equalized. The Wind-Clik switches the system off in strong winds and automatically resets it when the weather conditions have improved. With two wires connected to the control unit, the mini weather station is easy to install and ready to use to ensure efficient irrigation even during drastic weather changes.
Note: Includes 7m control power cable (3 x 0.5mm²) and 2x Scotchlok cable connectors.
Main benefits:
- Compact sensor that monitors wind and rain and switches off the irrigation system when weather conditions require it.
- Easy installation in automatic sprinkler systems.
- Adjustable wind speed for shutdown at 19 to 56 km/h.
- System shutdown for rainfall from 3 mm to 25 mm.
Operating data:
- Height: 10 cm, diameter of wind vane: 13 cm.
- Rated switch current: max. 5A at 24 VAC.
- Release speed: 19 to 56 km/h.
- Reset speed: 13 to 39 km/h.
- Mounting: Adhesive sleeve on 50mm PVC pipe or attachment to 1/2" cable conduit via adapter (included).
DOWNLOAD cutsheet Hunter Mini Weather Station MWS
