IBC connection set 32mm side by side set with tap 3/4"

SKU: IB0900.S60.025

Auswahl Steuerzone / Lieferland

22,96 €

incl. 19% VAT , plus

Available immediately
Delivery time: 1 - 4 Workdays (DE - int. shipments may differ)

View item details in PDF

How to measure a threaded fitting

pc.

Available immediately
Delivery time: 1 - 4 Workdays (DE - int. shipments may differ)

All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.

Main item including dimensions

Description

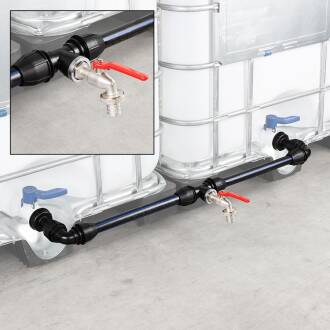

IBC connection set for containers next to each other with brass tap

Quickly and easily connect IBC containers next to each other with a central brass tap
Expand side by side infinitely with the extension set
Perfectly positionable connection - no more sealing problems - no more positioning problems

With the perfectly positionable IBC container connection S60*6 from , your system is connected rock solid, yet easy to disassemble and without exposed seals, which crumble over time under UV radiation or homemade "do-it-yourself connections".

Use a connection set to connect two containers. To connect three containers next to each other, you need an additional extension, and to connect four containers next to each other, you need two extensions, and so on.

Four taps are available

3/4" tap with spout, steel lever

1" faucet with spout, steel lever

3/4" faucet with spout, V2A stainless steel lever

1" faucet with spout, V2A stainless steel lever

PE pipe vs. hose

Actually, there is no question that PE pipe has all the advantages as a connecting pipe for your IBC connection set: professional, firm, stable connection - cut-resistant - UV-stable - no algae formation because it is not translucent - any questions: +49-9241-910 9100

The chrome-plated brass faucet

centrally placed brass faucet, chrome-plated – not a cheap zinc die-cast
Connection fitting with metal reinforcement ring
no exposed seals that slowly crumble under UV radiation
in 3/4" or 1" variants, depending on selection
with steel lever or V2A lever, depending on selection

The advantages of our connection set in detail

IBC container connection S60*6 - with IB0003.100.M60 can be extended to S100*8
all pipe connections made of high-quality PE100 drinking water pipe (UV-resistant)
always easy to position perfectly
it is extremely secure and yet easy to dismantle
no exposed seals that slowly crumble under UV radiation
no additional sealing work between pipe and clamp fittings
UV-, weather- and ozone-resistant
Pipe dimension 32mm
with the "plug & work" IBC container connection S60*6 from

Connection:

IBC coarse thread S60*6

Temperature:

constant up to 60°C, briefly 80°C

Quality:

UV-stabilized

Material:

PP polypropylene

Seal S60*6:

PU foam flat seal

Color:

Black

Ball valve:

3/4" or 1" brass, chrome-plated, according to selection

Control lever:

Steel or V2A stainless steel, as selected

Extra:

plus 1 roll of Teflon tape

For developers, DIYers, tinkerers & expanders

Contents:

1x brass faucet steel lever
or
1x brass tap with stainless steel lever
2x 90° angle clamp 2x 32mm clamp
1x clamp T-piece clamp 32mm x internal thread identical to tap
2x IBC container connection S60*6 x 32mm
Teflon tape
2 x 47cm PE pipe 32mm

Tip: A metal tap requires some maintenance. Especially in the area where the lever breaks, moisture collects, which can lead to rust. A squirt of rust solvent or WD40 after installation and at regular intervals avoids this
