All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

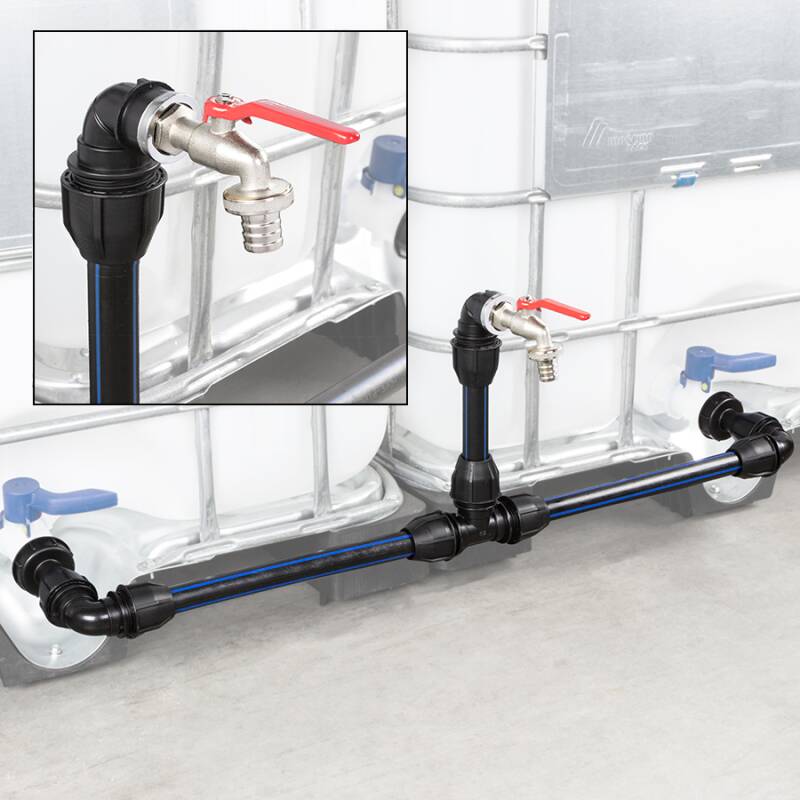

IBC Connection Set for Side-by-Side Containers with Swan Neck Faucet
- Quickly and conveniently connect IBC containers side by side with a centrally placed chrome-plated brass faucet for easily filling a watering can from the water supply of your IBC containers
- Extend side by side infinitely with the extension set
- Perfectly positionable connection - no more leakage issues - no more positioning problems
With the perfectly positionable IBC Container Connection S60*6 from
, your system is securely connected, yet easily dismountable, with no exposed seals that crumble over time due to UV radiation or makeshift "DIY connections".
With one connection set, you can connect two containers. For connecting 3 containers side by side, you need an additional 1 extension, for connecting 4 containers side by side, 2 extensions, and so on.
Connection:
IBC Coarse Thread S60*6
Temperature:
Up to 60°C constant, briefly up to 80°C
Material:
PE Pipe 32mm, PP Clamp Fitting
Seal S60*6:
PU Foam Flat Seal
Color:
Black
Ball Valve:
3/4" or 1", depending on selection
Scope of Delivery:
The set is partially pre-assembled and requires complete assembly and thread sealing. A roll of Teflon tape is included.
The Swan Neck for Convenient Filling of a Watering Can
- Centrally placed Swan Neck
- PE100 drinking water pipe 32mm
- No exposed O-rings
- No additional sealing work between pipe and clamp fittings
- Available in 3/4" or 1" versions depending on selection
- IBC Container Connection S60*6 - expandable to S100*8 via IB0003.100.M60
- UV-, weather-, and ozone-stable
- With the "plug & work" IBC Container Connection S60*6 from
Tip: A metal faucet requires some maintenance. Especially in the shear area of the lever, moisture accumulates, which can lead to rust. A spritz of rust remover or WD40 after installation and periodically will prevent this, and you will enjoy your IBC Container Set Swan Neck with Faucet from for a long time.
IBC Container Connection Sizes
Connection Size
S60*6 DN50 (2") Coarse Thread
S60 (2.36") Outer thread size 60mm
6mm (0.24") Thread pitch
Connection Size
S75*6 DN50 (2") Coarse Thread
S75 (2.95") Outer thread size 75mm
6mm (0.24") Thread pitch
Connection Size
S80*6 DN50 (2") Coarse Thread
S80 (3.15") Outer thread size 80mm
6mm (0.24") Thread pitch
Connection Size
S100*8 DN80 (3") Coarse Thread
S100 (3.94") Outer thread size 100mm
8mm (0.32") Thread pitch
