Variants

Product picture
Item no.
Variation
B
D
DN
G
H
L
L1
Price
Quantity

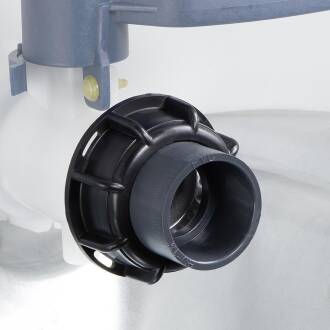

IBC container coupling with U-PVC socket
IB0010.060.040
S60*6 x 40mm
23
40
32
S60*6
73
48
27
6,85 €*
pc.:
IBC container coupling with U-PVC socket
IB0010.00S.100
Erweiterung auf S100*8
---
---
---
S100*8
---
---
---
6,57 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

IBC Container Anschluss S60*6 Innengewinde x PVC-U Klebemuffe

Die Verbindung zwischen den Welten.

Professionelle, passgenaue, trennbare Anbindung von PVC-U auf IBC Containeranschluss S60*6.

Anschluss:
Überwurf Innengewinde x PVC-U Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Wertigkeit:
bedingt UV-stabil
Material:
PP Polypropylen, PVC-U Klebemuffe
Dichtung zum IBC:
PU-Schaum Flachdichtung
Farbe:
Schwarz, PVC-U Einlegeanschlussmuffe Farbe Grau
Verarbeitungshinweis:
der Anschlussstutzen mit Aussengewinde muss plan sein. Ein Ausgleichen von Randbeschädigungen durch max. Aufdrehen des Anschlusses kann den Deckelteil unter Druck setzen, so dass dieser vom Gewindeteil abreisst - dies kann auch zu einem späterem Zeitpunkt geschehen, wenn die Materialermüdung endgültig ist.

orange dot IBC Container Anschlussgrößen


IBC Containeranschluss S60*6

Anschlussgröße

S60*6 DN50 (2") Grobgewinde

S60 (2,36") Gewinde Aussenmaß 60mm
6mm (0,24") Gewindesteigung


IBC Containeranschluss S75*6

Anschlussgröße

S75*6 DN50 (2") Grobgewinde

S75 (2,95") Gewinde Aussenmaß 75mm
6mm (0,24") Gewindesteigung


IBC Containeranschluss S80*6

Anschlussgröße

S80*6 DN50 (2") Grobgewinde

S80 (3,15") Gewinde Aussenmaß 80mm
6mm (0,24") Gewindesteigung


IBC Containeranschluss S100*8

Anschlussgröße

S100*8 DN80 (3") Grobgewinde

S100 (3,94") Gewinde Aussenmaß 100mm
8mm (0,32") Gewindesteigung
