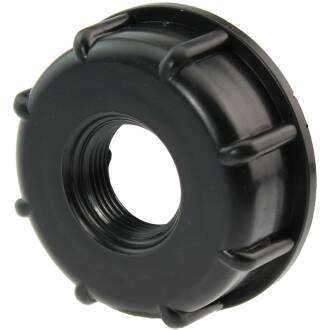

IBC container coupling with female thread

from
1,73 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
Variants

Product picture
Item no.
Variation
B
B1
G
G1
H
Price
Quantity
IBC container coupling with female thread
IB0002.060.020
S60*6 x 1/2"
23
14
S60*6
1/2" (20,95mm)
73
1,73 €*
pc.:
IBC container coupling with female thread
IB0002.060.025
S60*6 x 3/4"
23
14
S60*6
3/4" (26,44mm)
73
1,73 €*
pc.:
IBC container coupling with female thread
IB0002.060.032
S60*6 x 1"
23
17
S60*6
1" (33,25mm)
73
1,73 €*
pc.:
IBC container coupling with female thread
IB0002.060.X32
S60*6 x 1"
52
19
S60*6
1" (33,25mm)
80
1,96 €*
pc.:
IBC container coupling with female thread
IB0002.060.040
S60*6 x 1 1/4"
50
21
S60*6
1 1/4" (41,91mm)
80
1,96 €*
pc.:
IBC container coupling with female thread
IB0002.060.050
S60*6 x 1 1/2"
51
16
S60*6
1 1/2" (47,81mm)
77
1,96 €*
pc.:
IBC container coupling with female thread
IB0002.060.063
S60*6 x 2"
51
16
S60*6
2" (59,61mm)
77
2,05 €*
pc.:
IBC container coupling with female thread
IB0002.100.063
S100*8 x 2"
54
30
S100*8
2" (59,61mm)
117
4,71 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

IBC Container Anschluss Innengewinde x Innengewinde

Anschluss:
Innengewinde x Innengewinde (Gewindetyp siehe Tabelle)
Temperatur:
bis 60°C konstant, kurzzeitig 80°C
Wertigkeit:
UV-stabil
Material:
PP Polypropylen
Dichtung zum IBC:
PU-Schaum Flachdichtung
Dichtung BSP Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
bzw. Version 1", 1 1/2" und 2" flachdichtend mit PU-Schaum Flachdichtung
Farbe:
Schwarz
technischer Hinweis:
1", 1 1/2" und 2" bei BSP R (konisch zulaufenden Aussengewinde) Gegengewinde
Schaumdichtung entnehmen und abdichten mit Teflonband o.ä. oder Gewindekonus des Aussengewindes kürzen
Verarbeitungshinweis:
der Anschlussstutzen mit Aussengewinde muss plan sein. Ein Ausgleichen von Randbeschädigungen durch max. Aufdrehen des Anschlusses kann den Deckelteil unter Druck setzen, so dass dieser vom Gewindeteil abreisst - dies kann auch zu einem späterem Zeitpunkt geschehen, wenn die Materialermüdung endgültig ist.

orange dot IBC Container Anschlussgrößen


IBC Containeranschluss S60*6

Anschlussgröße

S60*6 DN50 (2") Grobgewinde

S60 (2,36") Gewinde Aussenmaß 60mm
6mm (0,24") Gewindesteigung


IBC Containeranschluss S75*6

Anschlussgröße

S75*6 DN50 (2") Grobgewinde

S75 (2,95") Gewinde Aussenmaß 75mm
6mm (0,24") Gewindesteigung


IBC Containeranschluss S80*6

Anschlussgröße

S80*6 DN50 (2") Grobgewinde

S80 (3,15") Gewinde Aussenmaß 80mm
6mm (0,24") Gewindesteigung


IBC Containeranschluss S100*8

Anschlussgröße

S100*8 DN80 (3") Grobgewinde

S100 (3,94") Gewinde Aussenmaß 100mm
8mm (0,32") Gewindesteigung

orange dot Download

DOWNLOAD RoHS Konformitätserklärung - HT CONNECT GmbH & Co. KG

DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD PP Polypropylen Temperatur-/Druckdiagramm
DOWNLOAD chemische Beständigkeit von Kunststoffen
