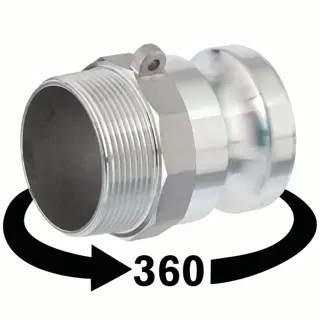

Kamlock coupling aluminium type F male part with external thread

SKU: KLA600
Auswahl Steuerzone / Lieferland
Price on request
  • Available immediately
View item details in PDF

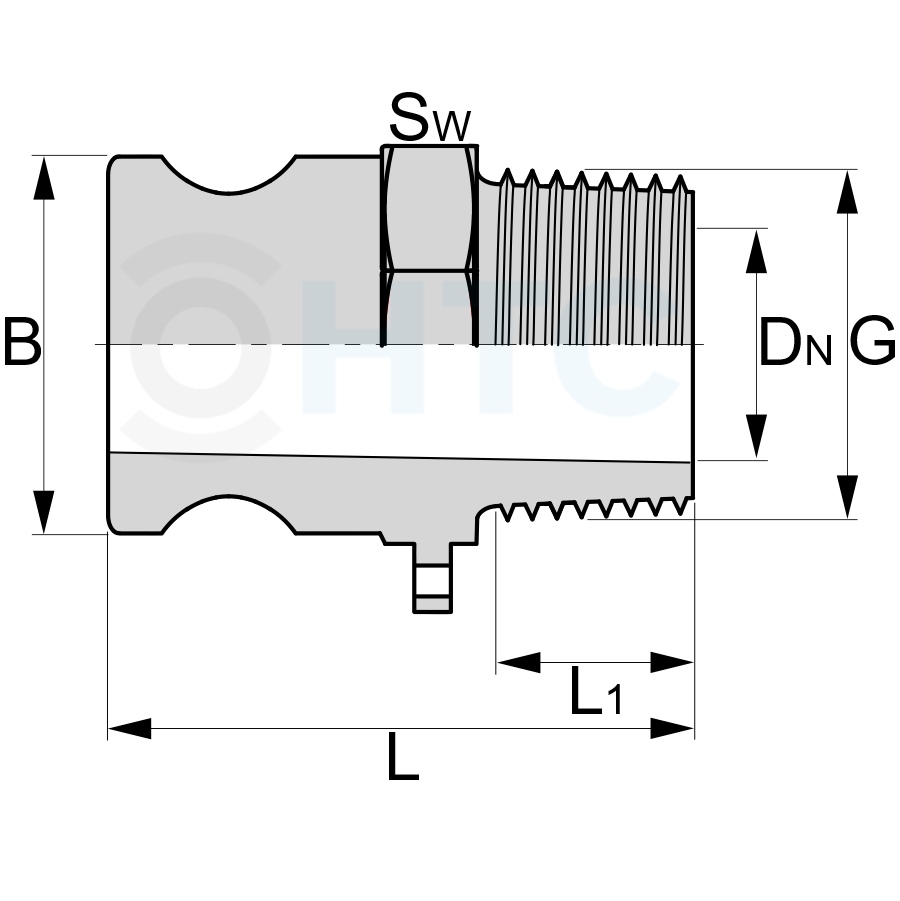

How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
B
DN
G
L
L1
SW
Price
Quantity
KLA600.000.020
1/2"
24
12,5
T 1/2" (20,96mm)
56
15,5
25,5
2,07 €*
pc.:
KLA600.000.025
3/4"
32
18
T 3/4" (26,44mm)
62,5
18
32,5
2,18 €*
pc.:
KLA600.000.032
1"
37
22,5
T 1" (33,25mm)
73
21
39
2,46 €*
pc.:
KLA600.000.040
1 1/4"
45
26,5
T 1 1/4" (41,91mm)
80
23
47
3,17 €*
pc.:
KLA600.000.050
1 1/2"
53
36
T 1 1/2" (47,81mm)
75
21
55,5
4,09 €*
pc.:
KLA600.000.063
2"
63
46,5
T 2" (59,61mm)
83
21
65
5,18 €*
pc.:
KLA600.000.075
2 1/2"
76
59,5
T 2 1/2" (75,18mm)
88,5
22
80
7,51 €*
pc.:
KLA600.000.090
3"
92
75
T 3" (87.88mm)
94
29
95
9,14 €*
pc.:
KLA600.000.110
4"
119
104,5
T 4" (113,03mm)
98
28
122,5
15,14 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Hose Coupling Lever Arm Coupling System Camlock Aluminum Type F Male Part with Male Thread

The Camlock couplings originated in the USA and are certainly one of the most widespread coupling types worldwide. The basis was the standard of the American military.

The Camlock hose coupling quick coupling system impresses with its simple locking mechanism. A family that logically consists of male and female parts, complementing each other, and is therefore universally used in agriculture, industry, and private households in practical installations.

The selection of the right components can be made without extensive expertise, as "male" and "female" parts only need to have identical dimensions (dimension "B") – in our offers, dimension B must always be identical.

Connections with female threads have the European BSP G pipe thread, and connections with male threads have the BSP T pipe thread (tapered or conical) and are compatible with all fittings with identical BSP G pipe threads.


Connection:
Type F Male Part x Male Thread
Thread:
BSPT DIN 2999 tapered or conical thread with sealing via thread flanks. For optimal sealing, installation with Teflon tape or similar is recommended
Material:
Aluminum
Standard:
MIL A-A-59326A
Temperature:
-20°C to 80°C
Working pressure (PN):
16 bar | -20°C to 40°C
Camlock

   Camlock System in Detail


  1. Plug (Male Part) Stainless Steel V4A 1.4408

  2. Coupler (Female Part) Stainless Steel V4A 1.4408

  3. Bolt Galvanized Steel

  4. Flat Seal NBR

  5. Lever V2A Stainless Steel

  6. Ring Anodized Steel
DOWNLOADRoHS Confirmation HTC
DOWNLOAD The thread designation - or why 1" is not exactly 25.4mm
