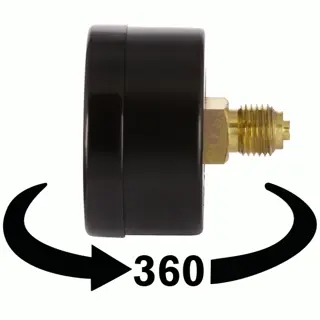

Manometer 1 1/2", brass rear centered joint 1/4"

SKU: MA0102
Auswahl Steuerzone / Lieferland
3,47 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately

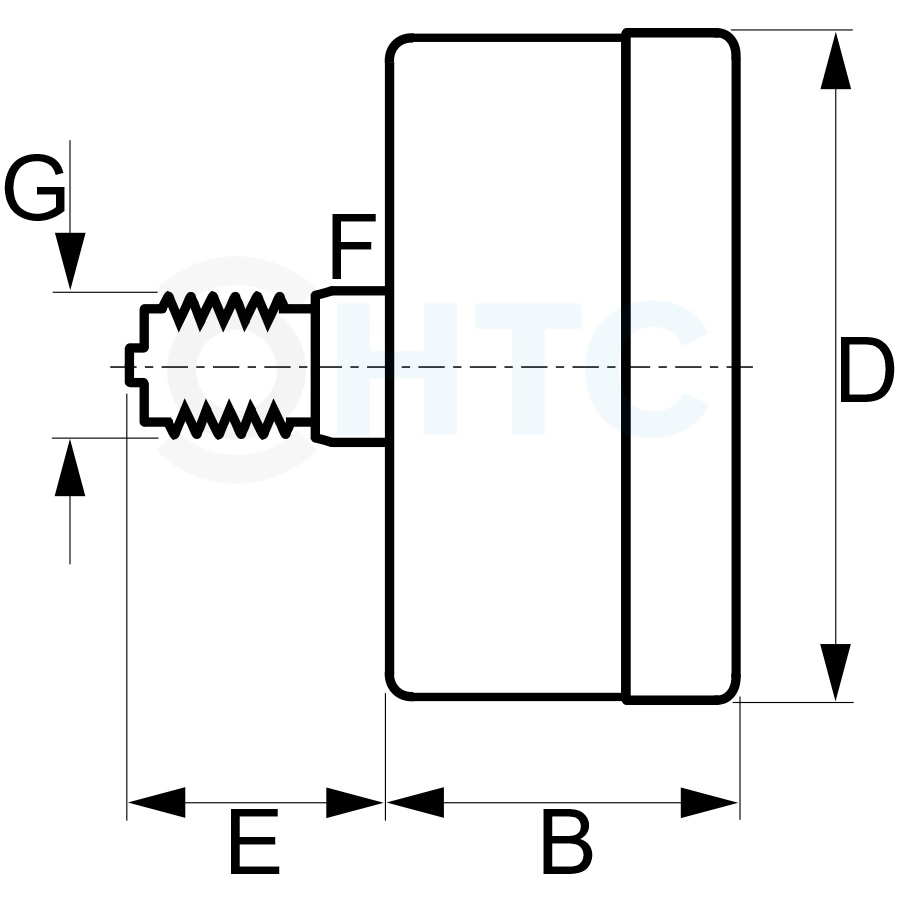

   Variants

Item no.
Variation
B
D
E
F
G
Measuring range
Price
Quantity
MA0102.012.002
0 - 2,5 bar
28,2
52,5
20
Q 14
1/4" (13,16mm)
0 - 2,5 bar
3,47 €*
pc.:
MA0102.012.004
0 - 4 bar
28,2
52,5
20
Q 14
1/4" (13,16mm)
0 - 4 bar
3,47 €*
pc.:
MA0102.050.006
0 - 6 bar
29
52,5
20
Q 14
1/4" (13,16mm)
0 - 6 bar
3,47 €*
pc.:
MA0102.000.010
0 - 10 bar
28,2
52,5
20
Q 14
1/4" (13,16mm)
0 - 10 bar
3,47 €*
pc.:
MA0102.012.016
0 - 16 bar
28,2
52,5
20
Q 14
1/4" (13,16mm)
0 - 16 bar
3,47 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

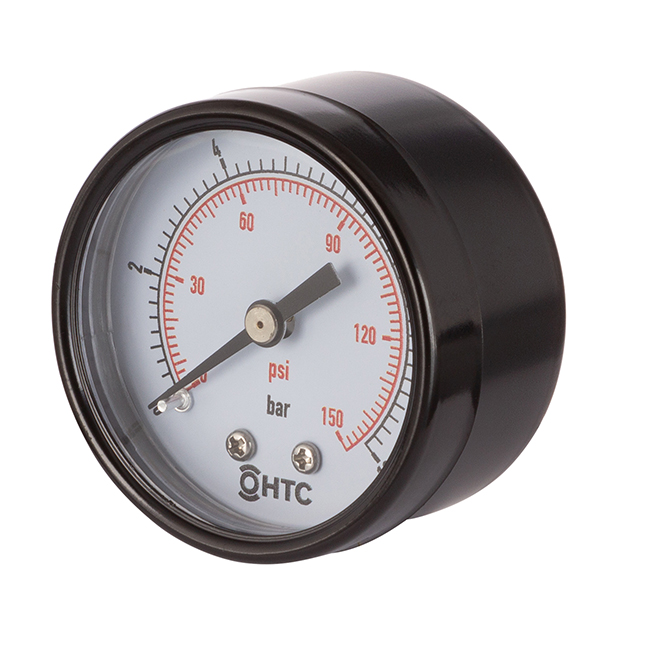

Coiled Tube Pressure Gauge 1 1/2" (~Ø 50mm) Axial Centered Connection

For gaseous and liquid media that do not attack copper

Connection:
1/4" Male Thread (axial centered) – Brass
Thread:
BSP Pipe Thread G, non-self-sealing, seal with Teflon tape or similar
Temperature:
EN 837-1 | -20°C to 60°C
Accuracy:
± 2.00 %
Housing Material:
Steel
Color:
Black Painted
DOWNLOAD The Thread Designation – or why 1" is not exactly 25.4mm
