Micro spray / Microjet Irritec

SKU: BW5072.IRR
Auswahl Steuerzone / Lieferland
0,20 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
Colour
Casting distance
Total height
Price
Quantity

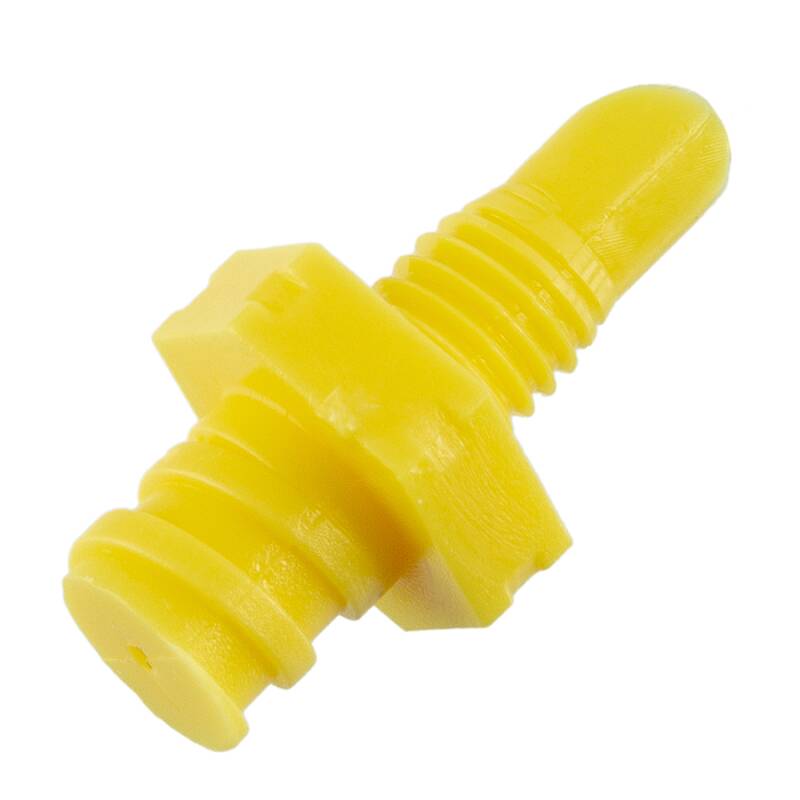

Micro spray / Microjet Irritec body 0,8mm yellow
BW5072.IRR.008
Mikrosprüher Basis 0,8mm
Gelb
1,9 m
20
0,20 €*
pc.:

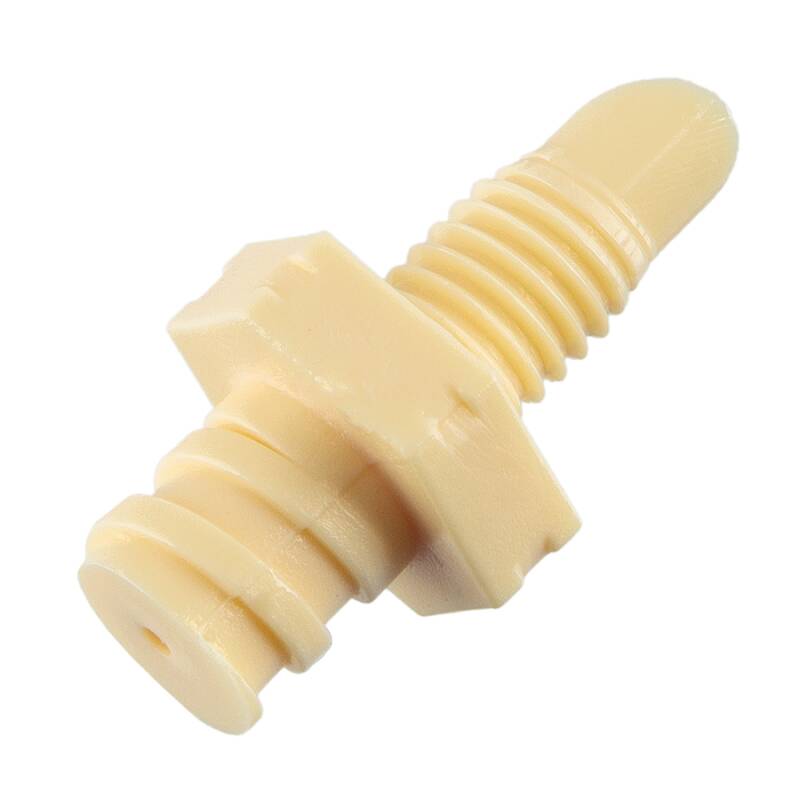

Micro spray / Microjet Irritec body 1,0mm avory
BW5072.IRR.010
Mikrosprüher Basis 1,0mm
Elfenbein
2,1 m
20
0,20 €*
pc.:

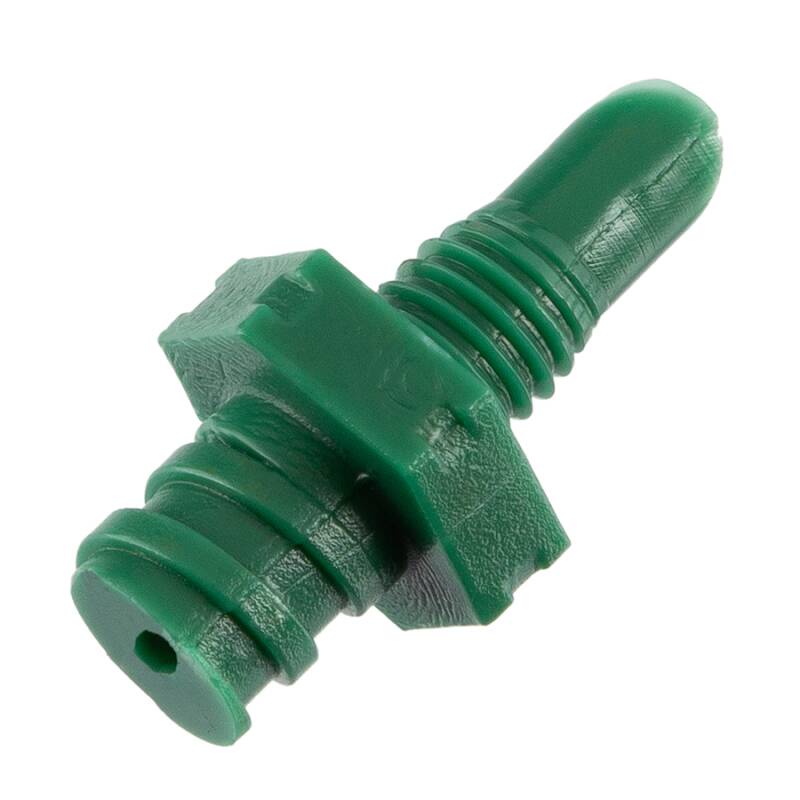

Micro spray / Microjet Irritec body 1,3mm green
BW5072.IRR.013
Mikrosprüher Basis 1,3mm
Grün
2,8 m
20
0,20 €*
pc.:

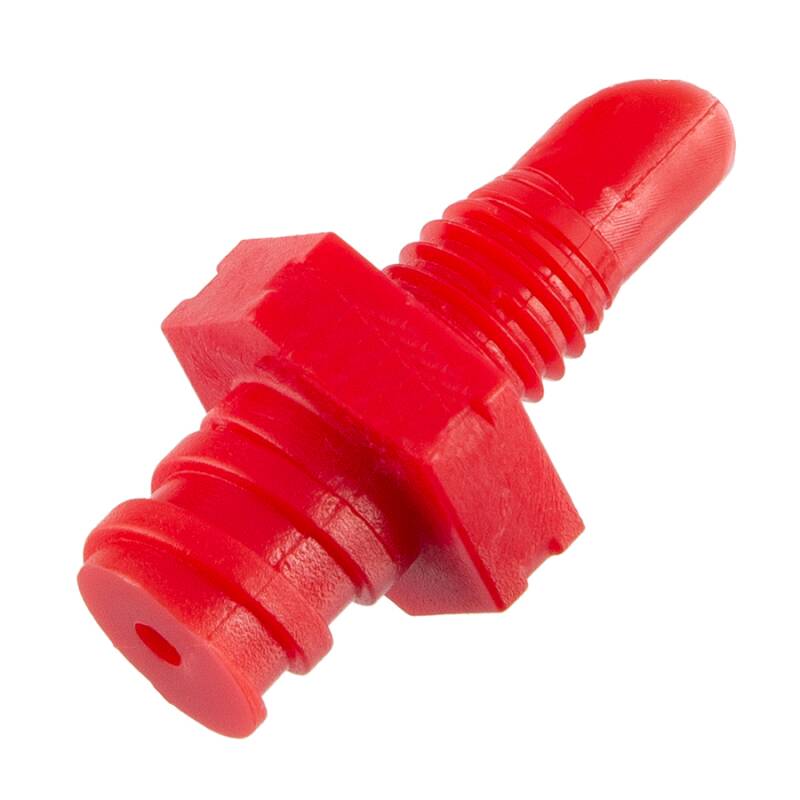

Micro spray / Microjet Irritec body 1,5mm red
BW5072.IRR.015
Mikrosprüher Basis 1,5mm
Rot
3,2 m
20
0,20 €*
pc.:

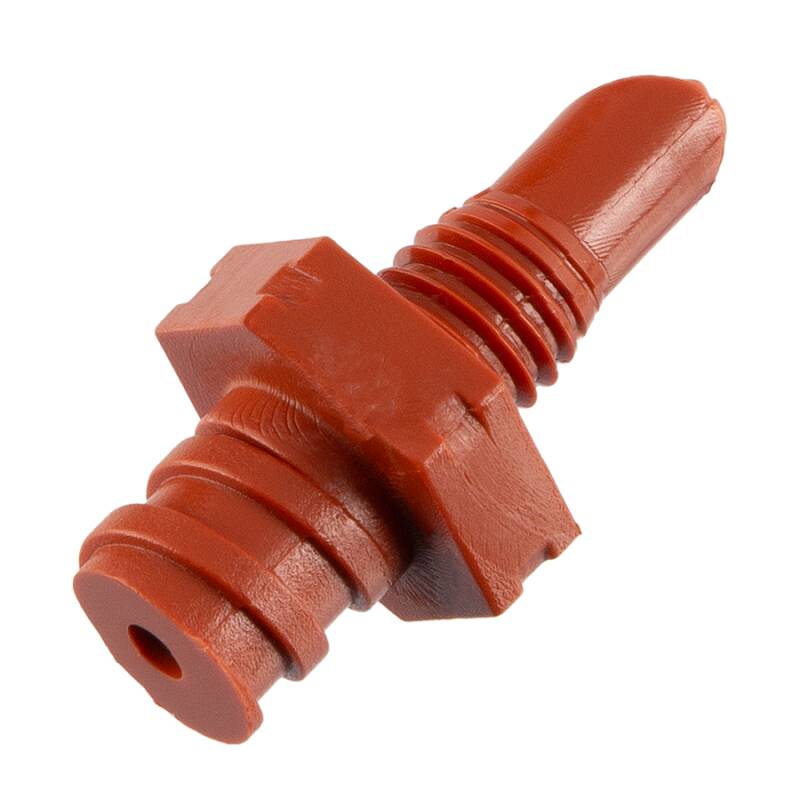

Micro spray / Microjet Irritec body 1,8mm brown
BW5072.IRR.018
Mikrosprüher Basis 1,8mm
Braun
3,4 m
20
0,20 €*
pc.:
Micro spray / Microjet Irritec body 2,0mm blue
BW5072.IRR.020
Mikrosprüher Basis 2,0mm
Blau
3,6 m
20
0,20 €*
pc.:

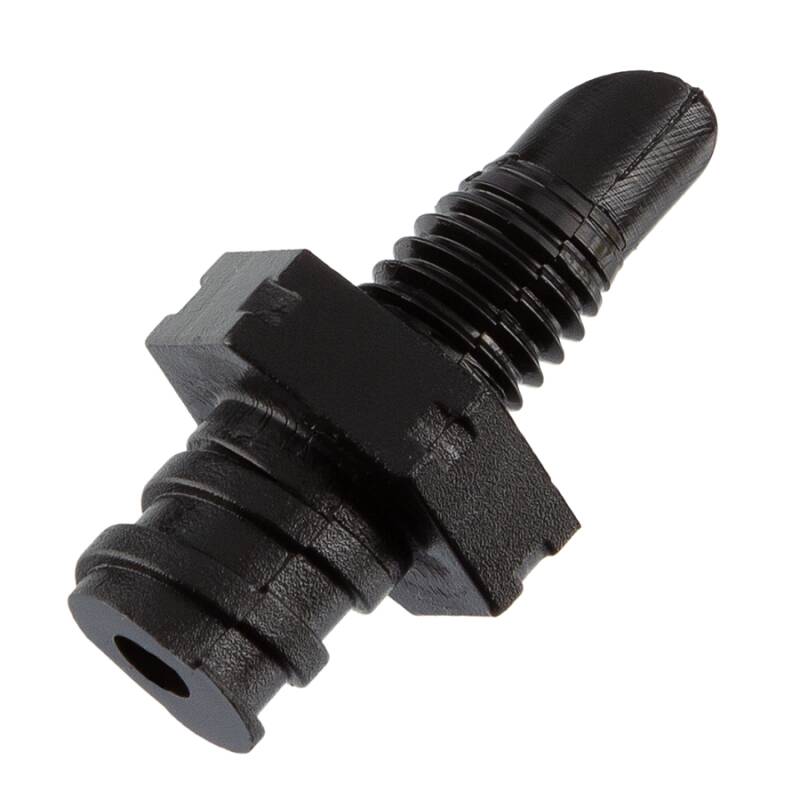

Micro spray / Microjet Irritec body 2,3mm black
BW5072.IRR.023
Mikrosprüher Basis 2,3mm
Schwarz
3,8 m
20
0,20 €*
pc.:

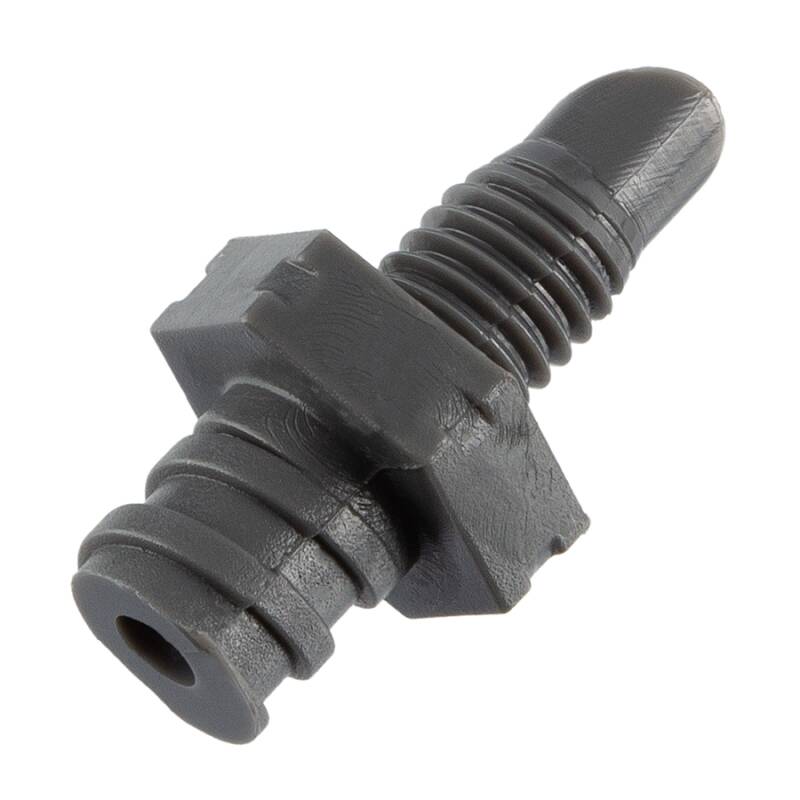

Micro spray / Microjet Irritec body 2,5mm grey
BW5072.IRR.025
Mikrosprüher Basis 2,5mm
Grau
3,9 m
20
0,20 €*
pc.:

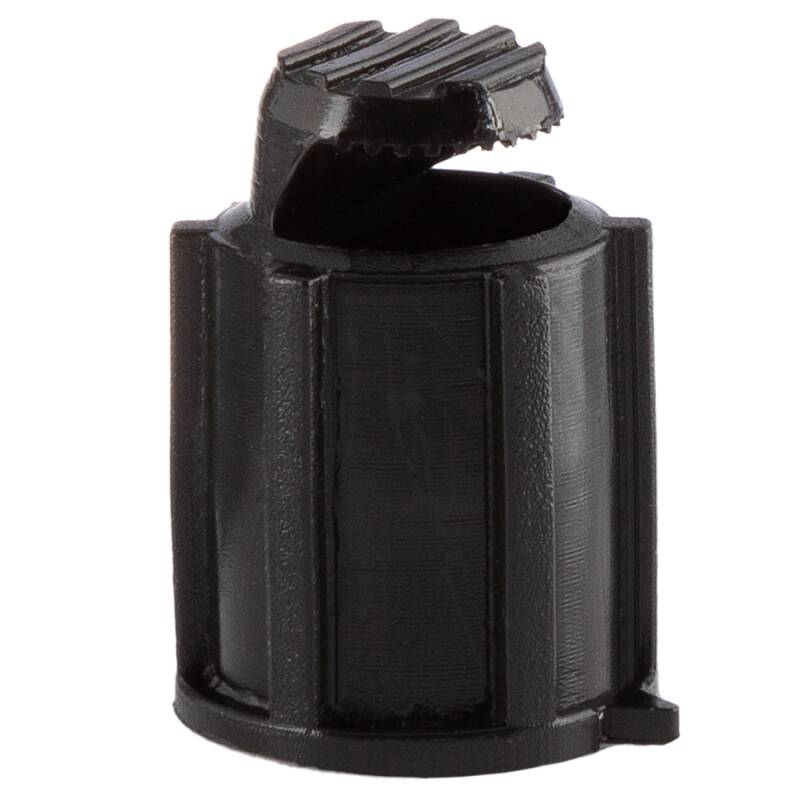

Micro spray / Microjet Irritec cap 180°
BW5072.IRR.180
Mikrosprüher Kappe 180°
Schwarz
---
14
0,20 €*
pc.:

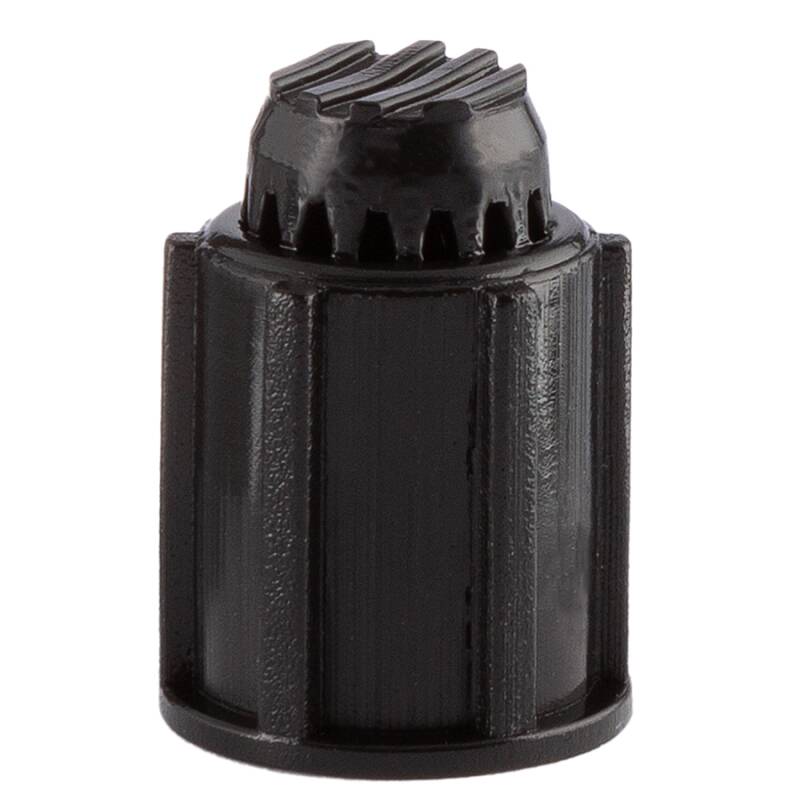

Micro spray / Microjet Irritec cap 360°
BW5072.IRR.360
Mikrosprüher Kappe 360°
Schwarz
---
14
0,20 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Microjet micro sprayer base and individual cap

Note: Pre-filtering with at least 120 mesh and pressure reduction according to the table below is required!



Mikrosprüher

Individual combination of Microjet micro sprayers

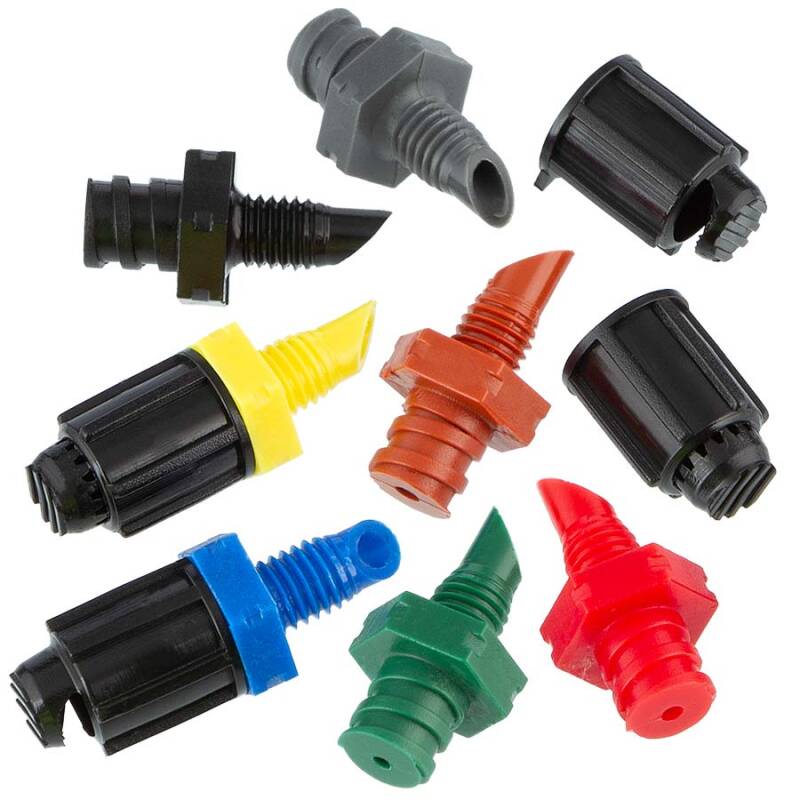

The micro sprayer consists of a base and a cap, which are screwed together. The hole size in the base determines the amount of water. Eight bases with fixed openings from 0.8mm - 2.5mm are available in different colors. The attached cap determines the ejection pattern of the sprayer. A 180° and a 360° cap are available.

Color Flow rate in l/h Throw distance in m
1 bar 1.5 bar 2 bar
Yellow 27 33 39 1,9
Ivory 36 44 53 2,1
green 59 71 84 2,8
Red 81 97 110 3,2
Brown 107 134 154 3,4
Blue 128 157 180 3,6
Black 165 198 225 3,8
Gray 170 210 240 3,9
