All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

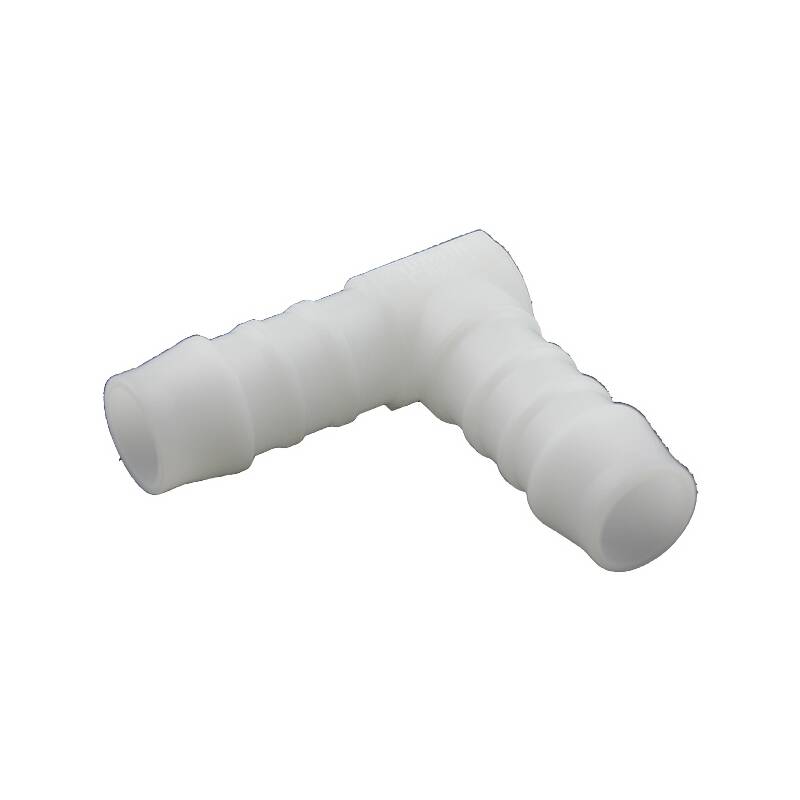

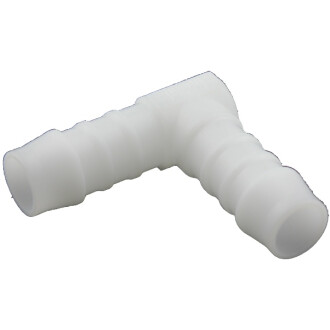

POM Plastic Elbow 90°, 2-Way Hose Nozzle
Connection:
2-Way Hose Nozzle
Temperature:
-40°C to 80°C, short-term 110°C
Working Pressure (PN):
max. 10 bar at 20°C medium water
Material:
POM
Color:
White
Application Area:
Normaplast® hose connectors are proven hose and pipe connection components made of plastic that securely, reliably, and economically connect media-carrying lines.
Normaplast® hose and pipe connectors are used in the automotive industry, almost all other industrial sectors, as well as in plant construction and irrigation systems.
Hose nozzles made of PA6: Due to the high stiffness at low friction values, as well as the excellent dimensional stability and thermal stability as a technical plastic, PA6 is particularly used in the industry for precision parts. The precise molding of these hose nozzles clearly demonstrates this.
Advantages at a glance
- Extremely high strength
- Durability
- Lightweight
- Damping/absorption capacity
- Wear resistance
- High impact resistance
- Max. allowable pressure 10 bar
- Temperature range -40°C to 120°C depending on the plastic used
- Can be used for cooling water, windshield washer fluid, gasoline, oils
- Flammability class (UL 94)
- POM, PP, PA6.6, and PA12: HB (horizontal burning position)
