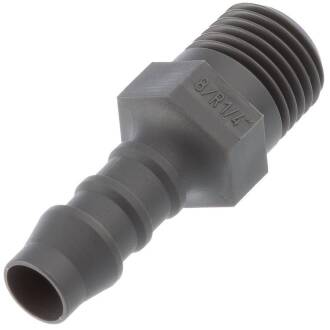

Nylon hose tail with male thread

SKU: NS0802
Auswahl Steuerzone / Lieferland
from
0,73 €
incl. 19% VAT , plus shipping costs
  • Available immediately
array(3) { ["meta keywords"]=> string(30) "Nylon_POM_Schlauchtülle_Norma" ["bild_abmessungen"]=> string(39) "/bilder/abmessungen/N-802_Zeichnung.jpg" ["tabellen_ansicht"]=> string(1) "1" }
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
D1
D2
D3
L1~
SW
Price
Quantity
NS0802.009.004
4mm x 1/8"
4
1/8" (9,73mm)
2,5
27
10
0,73 €*
pc:
NS0802.009.006
6mm x 1/8"
6
1/8" (9,73mm)
4
32,5
10
0,94 €*
pc:
NS0802.009.008
8mm x 1/8"
8
1/8" (9,73mm)
5,6
38
14
1,08 €*
pc:
NS0802.012.004
4mm x 1/4"
4
1/4" (13,16mm)
2,5
32
14
0,96 €*
pc:
NS0802.012.006
6mm x 1/4"
6
1/4" (13,16mm)
4
37,5
14
1,12 €*
pc:
NS0802.012.008
8mm x 1/4"
8
1/4" (13,16mm)
5,6
41
14
1,08 €*
pc:
NS0802.012.010
10mm x 1/4"
10
1/4" (13,16mm)
7
43,5
14
1,12 €*
pc:
NS0802.016.006
6mm x 3/8"
6
3/8" (16,66mm)
4
39
17
1,21 €*
pc:
NS0802.016.008
8mm x 3/8"
8
3/8" (16,66mm)
5,6
41
17
1,27 €*
pc:
NS0802.016.010
10mm x 3/8"
10
3/8" (16,66mm)
7
43,5
17
1,27 €*
pc:
NS0802.016.012
12mm x 3/8"
12
3/8" (16,66mm)
8,6
45,5
17
1,32 €*
pc:
NS0802.016.014
14mm x 3/8"
14
3/8" (16,66mm)
10
56
17
1,57 €*
pc:
NS0802.020.008
8mm x 1/2"
8
1/2" (20,96mm)
5,6
5,6
22
1,79 €*
pc:
NS0802.020.012
12mm x 1/2"
12
1/2" (20,96mm)
8,6
54
22
1,93 €*
pc:
NS0802.020.014
14mm x 1/2"
14
1/2" (20,96mm)
10
56
22
1,77 €*
pc:
NS0802.020.016
16mm x 1/2"
16
1/2" (20,96mm)
12
58
22
2,30 €*
pc:
NS0802.025.016
16mm x 3/4"
16
3/4" (26,44mm)
12
58
27
2,30 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Plastic PA6 hose nozzle with male thread

Connection:
hose nozzle x male thread
Thread:
BSP pipe thread R, non-self-sealing, sealing with Teflon tape or similar.
Temperature:
- 40°C to 90°C, short-term 120°C
Working pressure (PN):
max. 10 bar at 20°C medium water
Material:
PA6
Color:
Grey
Application area:

Normaplast® hose connectors are proven hose and pipe connection components made of plastic that connect media-carrying lines safely, reliably and economically.

Normaplast® hose and pipe connectors are used in automotive engineering, almost all other industrial sectors, as well as in plant construction and irrigation systems.

Hose nozzles made of PA6: Due to the high stiffness at low friction values and the excellent dimensional stability and thermal resistance as a technical plastic, PA6 is widely used in industry for precision parts. The accurate shaping of these hose nozzles clearly demonstrates this.


Advantages at a glance

  • Extremely high strength
  • Durability
  • Low weight
  • Damping/absorption capability
  • Abrasion resistance
  • High impact resistance
  • max. permissible pressure 10 bar
  • Temperature range -40°C to 120°C depending on the plastic used
  • usable for coolant, windscreen washer fluid, gasoline, oils
  • Flammability class (UL 94)
  • POM, PP, PA6.6 and PA12: HB (horizontal burn position)
DOWNLOAD chemical resistance plastics PA6 and POM
DOWNLOAD the thread designation – or why 1" is not exactly 25.4 mm
