All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

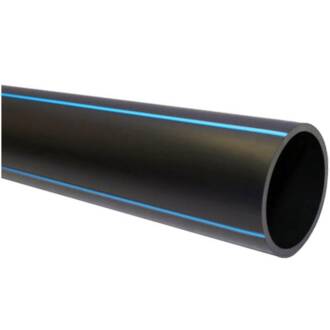

PE-HD 100 pressure pipes 50mm PN 16 bar
PE black pressure pipe with blue identification stripes for DVGW drinking water approval
A-Ø:
50mm
Wall thickness:
at least 4.6mm
Temperature:
up to 60°C at reduced values
Working pressure:
PN 16 bar at 20°C, medium water
Material:
PE HD 100 polyethylene high density, SDR 11, DIN 8074/8075, EN 12201
Color:
PE pipes in black with blue stripes for DVGW drinking water approval
permissible bending radius:
0°C - 50x outer diameter
10°C - 35x outer diameter
20°C - 20x outer diameter
10°C - 35x outer diameter
20°C - 20x outer diameter
The information applies to water as a medium, based on DIN 8074/75
Shipping costs for Germany 2m pipes
:
up to 15 pipes shipping costs 7.90 EUR gross
16 pipes up to 30 pipes shipping costs 15.80 EUR gross
31 pipes to 45 pipes shipping costs 23.70 EUR gross
46 pipes to 60 pipes shipping costs 31.60 EUR gross
Shipping costs to Germany 50m and 100m roll
one-time flat-rate bulky goods shipping fee of €49.90 gross, plus €35.90 gross for the first roll and €25.90 gross for each additional roll
- High chemical resistance, resistant to alkalis, salt solutions and inorganic acids, resistant to alcohol, oil and petrol
- Corrosion resistant
- Resistant to UV rays
- Polyethylene pipes are physiologically and toxicologically harmless
- Frost-resistant due to high elasticity (installation in non-frost-proof surroundings or depths requires constant circulation or a drain at the lowest point)
- High abrasion resistance
Information: a PE pipe for drinking water or service water supply can also be used as a solar pipe for pool water heating within the indicated temperature range up to a maximum of 60°C at reduced valences. However, it is not suitable for hot water installations or for solar systems for heating service water
