Variants

Item no.
Variation
H
H1
L
L1
M
Price
Quantity
PA0132.000.020
20mm
51,5
48
156
68,5
85
11,00 €*
pc:
PA0132.000.025
25mm
58
54
170
78
108
13,24 €*
PA0132.000.032
32mm
70
63
200
92,5
108
18,18 €*
pc:
PA0132.000.040
40mm
75
77
229
101
108
26,17 €*
pc:
PA0132.000.050
50mm
101
91
251
117
150
34,47 €*
pc:
PA0132.000.063
63mm
106
106
300
136
150
57,98 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

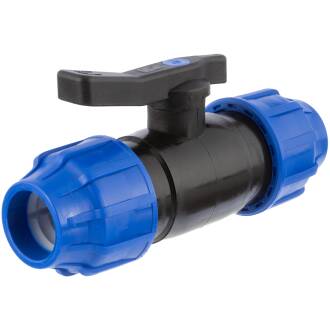

PP Kugelhahn Messingkugel, 2fach Klemme

Anschluss:
2fach Klemme
Zertifikat:
KIWA
Kugel:
Messingkugel verchromt
Temperatur:
bis 80°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C
Material:
PP Polypropylen
Farbe:
Schwarz, Überwurfmutter Blau
  • für Trinkwasser und nährende Flüssigkeiten, Wein etc. geeignet - KIWA Zertifizierung für den Einsatz mit Trinkwasser
  • wetter-, UV- und Ozon-stabil
  • verchromte Messingkugel - kratzsicher auch bei Schmutzwasser
  • für jederzeit lösbare Klemmverbindungen mit PE-Rohr oder PVC Flexschlauch/Klebeschlauch
1
Steckverbindung PPCV/PPGF
2
Schraube Stahl
3
PPGF Handgriff
4
Messing Stift
5
O-Ring NBR
6
Körper PPGF
7
verchromte Messingkugel
8
O-Ring PTFE
9
Überwurfmutter PP
10
Klemmring Polyacetal
11
Sicherheitsring PP
12
O-Ring EPDM

PP Klemm Fittings für den universellen Einsatz bei Brauchwasser, Trinkwasser im privatem Bereich, Transport von nährenden Lösungen sowie industriellen Anforderungen


DOWNLOAD KIWA Zertifikat - Freigabe für den Einsatz mit Trinkwasser
DOWNLOAD verarbeiten von PP Klemm Fittings
DOWNLOAD PP Polypropylen Temperatur-/Druckdiagramm
DOWNLOAD chemische Beständigkeit von Kunststoffen
