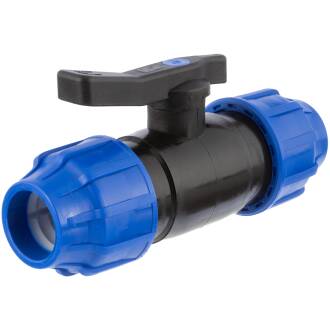

PP ball valve compression fitting with brass ball

Item number: PA0132

9,46 €

including 19% VAT., plus shipping

Choose your delivery country Germany

How to measure a threaded fitting

View item details in PDF

Item no.	#custom.tblheader_ Variante#	H	H1	L	L1	M	Weight	Price	Quantity
PA0132.000.020	20mm	51,5	48	156	68,5	85	187	9,46 €^*	pc:
PA0132.000.025	25mm	58	54	170	78	108	280	11,44 €^*	pc:
PA0132.000.032	32mm	70	63	200	92,5	108	455	15,76 €^*	pc:
PA0132.000.040	40mm	75	77	229	101	108	656	22,80 €^*	pc:
PA0132.000.050	50mm	101	91	251	117	150	1173	31,31 €^*	pc:
PA0132.000.063	63mm	106	106	300	136	150	1695	41,71 €^*	pc:

including 19% VAT., plus shipping

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

E-Mail

I would like to be notified by e-mail when the item becomes available.
You will receive an automatic message after the item arrives that the item is available again. Unfortunately, a delivery date cannot be given in advance.

I have taken note of the privacy policy. I consent to my details and data being collected and stored electronically in order to respond to my enquiry. Note: You can revoke your consent for the future at any time by sending an e-mail to info@ht-connect.de.

Article details

Description

PP Kugelhahn Messingkugel, 2fach Klemme

Anschluss:

2fach Klemme

Zertifikat:

KIWA

Kugel:

Messingkugel verchromt

Temperatur:

bis 80°C

Arbeitsdruck ():

max. 16 bar bei 20°C

Material:

PP Polypropylen

Farbe:

Schwarz, Überwurfmutter Blau

für Trinkwasser und nährende Flüssigkeiten, Wein etc. geeignet - KIWA Zertifizierung für den Einsatz mit Trinkwasser
wetter-, UV- und Ozon-stabil
verchromte Messingkugel - kratzsicher auch bei Schmutzwasser
für jederzeit lösbare Klemmverbindungen mit PE-Rohr oder PVC Flexschlauch/Klebeschlauch

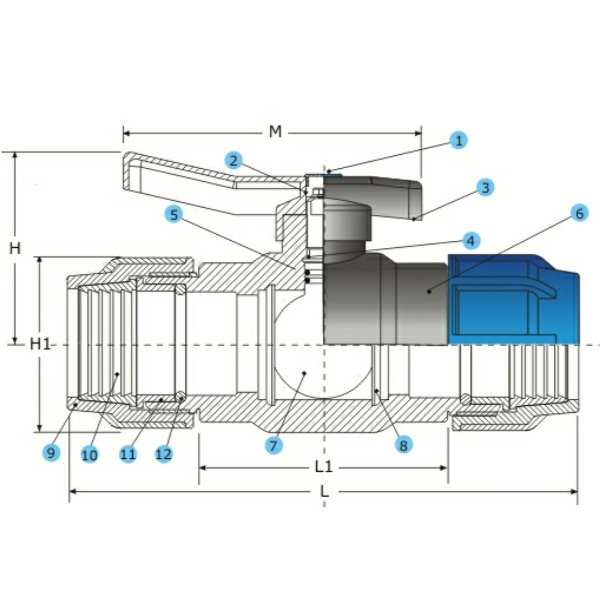

Steckverbindung PPCV/PPGF

Schraube Stahl

PPGF Handgriff

Messing Stift

O-Ring

Körper PPGF

verchromte Messingkugel

O-Ring PTFE

Überwurfmutter PP

Klemmring Polyacetal

Sicherheitsring PP

O-Ring EPDM

PP Klemm Fittings für den universellen Einsatz bei Brauchwasser, Trinkwasser im privatem Bereich, Transport von nährenden Lösungen sowie industriellen Anforderungen

DOWNLOAD KIWA Zertifikat - Freigabe für den Einsatz mit Trinkwasser

DOWNLOAD verarbeiten von PP Klemm Fittings

DOWNLOAD PP Polypropylen Temperatur-/Druckdiagramm

DOWNLOAD chemische Beständigkeit von Kunststoffen
