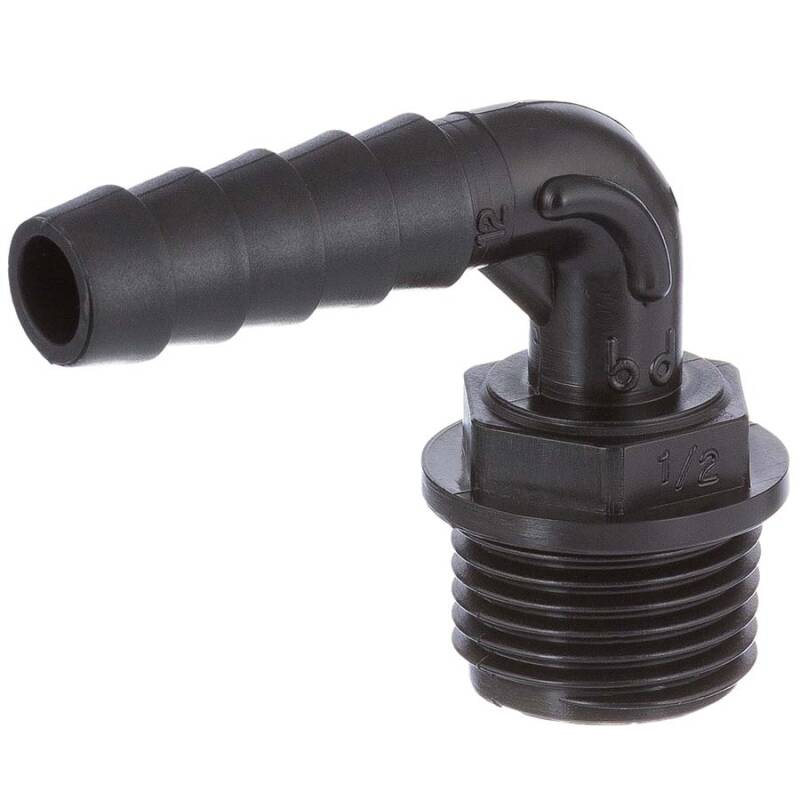

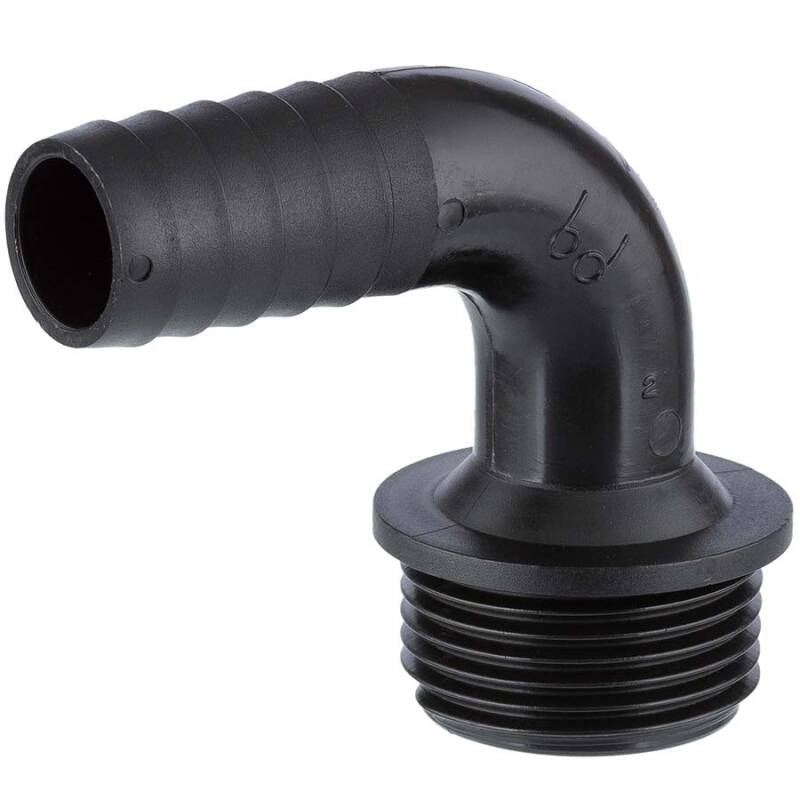

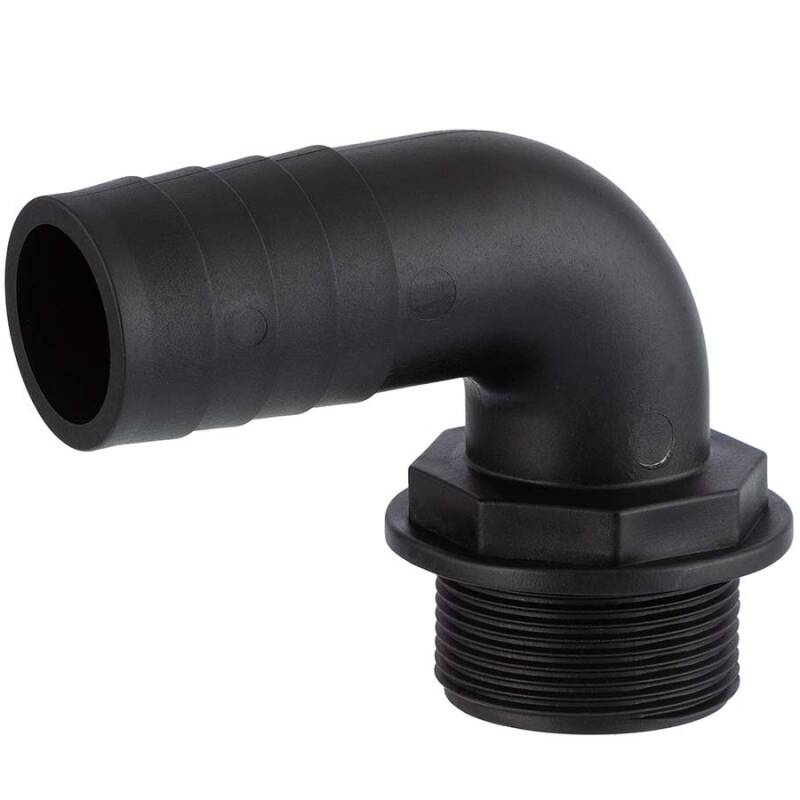

PP elbow 90° hose tail with male thread
0,92 €

including 19% VAT., plus shipping

Item number: PF0803

Product picture Item no. Variation Price Quantity

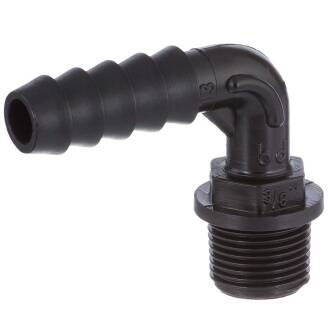

PP-Schlauchtülle 90° Aussengewinde x Tülle 3/8" x 13mm PF0803.016.013 3/8" x 13mm 0,92 €*
PP elbow 90° hose tail with male thread PF0803.020.012 1/2" x 12mm 1,02 €*

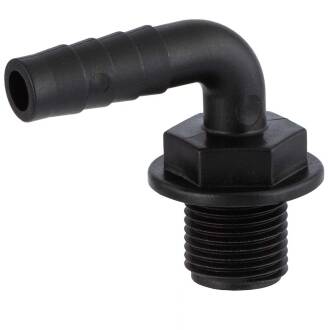

PP-Schlauchtülle 90° Aussengewinde x Tülle 1/2" x 13mm PF0803.020.013 1/2" x 13mm 1,02 €*
PP-Schlauchtülle 90° Aussengewinde x Tülle 1/2" x 16mm PF0803.020.016 1/2" x 16mm 1,02 €*
PP-Schlauchtülle 90° Aussengewinde x Tülle 1/2" x 20mm PF0803.020.020 1/2" x 20mm 1,13 €*
PP-Schlauchtülle 90° Aussengewinde x Tülle 3/4" x 12mm PF0803.025.012 3/4" x 12mm 1,18 €*
PP-Schlauchtülle 90° Aussengewinde x Tülle 3/4" x 16mm PF0803.025.016 3/4" x 16mm 1,20 €*
PP-Schlauchtülle 90° Aussengewinde x Tülle 3/4" x 20mm PF0803.025.020 3/4" x 20mm 1,30 €*
PP-Schlauchtülle 90° Aussengewinde x Tülle 3/4" x 25mm PF0803.025.025 3/4" x 25mm 1,46 €*
PP elbow 90° hose tail with male thread PF0803.032.019 1" x 19mm 1,73 €*
PP elbow 90° hose tail with male thread PF0803.032.020 1" x 20mm 1,79 €*
PP-Schlauchtülle 90° Aussengewinde x Tülle 1" x 25mm PF0803.032.025 1" x 25mm 1,79 €*
PP-Schlauchtülle 90° Aussengewinde x Tülle 1" x 32mm PF0803.032.032 1" x 32mm 1,93 €*
PP-Schlauchtülle 90° Aussengewinde x Tülle 1 1/4" x 32mm PF0803.040.032 1 1/4" x 32mm 2,45 €*
PP-Schlauchtülle 90° Aussengewinde x Tülle 1 1/4" x 40mm PF0803.040.040 1 1/4" x 40mm 4,45 €*
PP-Schlauchtülle 90° Aussengewinde x Tülle 1 1/2" x 38mm PF0803.050.038 1 1/2" x 38mm 4,52 €*
PP-Schlauchtülle 90° Aussengewinde x Tülle 1 1/2" x 40mm PF0803.050.040 1 1/2" x 40mm 4,52 €*
PP-Schlauchtülle 90° Aussengewinde x Tülle 2" x 50mm PF0803.063.050 2" x 50mm 6,59 €*

including 19% VAT., plus shipping

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PP Winkelschlauchtülle 90° Aussengewinde x Tülle

Anschluss:
Aussengewinde x Schlauchtülle 90°
Gewinde:
BSP
Rohrgewinde

Das Whitworth-Gewinde, auch als Zoll-Gewinde bezeichnet wird heute als British Standard Thread (BSP) auf dem europäischem Festland angewendet.

Sir Joseph Whitworth führte es 1841 als ersten genormtes Gewinde in der Welt ein.

G,
nicht selbstdichtend

Ein nicht selbstdichtendes Gewinde besteht meist durch ein paralleles Innengewinde und ein konisches Aussengewinde. Man benötigt Teflonband oder Dichtfaden für Kunststoff bzw. Teflonband, Dichtfaden oder Hanf für Metallgewinde zum Abdichten.

, Abdichtung mit Teflonband o.ä.
Temperatur:
0°C bis 80°C
Arbeitsdruck (
PN
Pressure Nominal, englisch für Nenndruck, der Druck (in bar), für den genormte Rohrleitungsteile ausgelegt sind
):
max. 6 bar bei 20°C
Material:
PP Polypropylen glasfaserverstärkt
Farbe:
Schwarz
  • absolut ungiftig, geruchs- und geschmackslos
  • geeignet für den Transport von Trinkwasser, Wein, Getränke und andere nährenden Flüssigkeiten
  • beständig gegenüber anorganischen Salzen in wässrigen Lösungen, schwach organischen Säuren und Laugen, Alkohol und teilweise Ölen
  • sehr gute mechanische Eigenschaften gegenüber Waschchemikalien o.ä
  • schützt als elektrisch isolierendes Material gegen elektrochemische Korrosion und Perforation, welche durch Streuströme verursacht wird
  • Wetter-, Ozon und UV-beständig
DOWNLOAD Polypropylen PP Temperatur-/ Druckdiagramm
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD RoHS Konformitätserklärung - Bucchi s.R.l.
