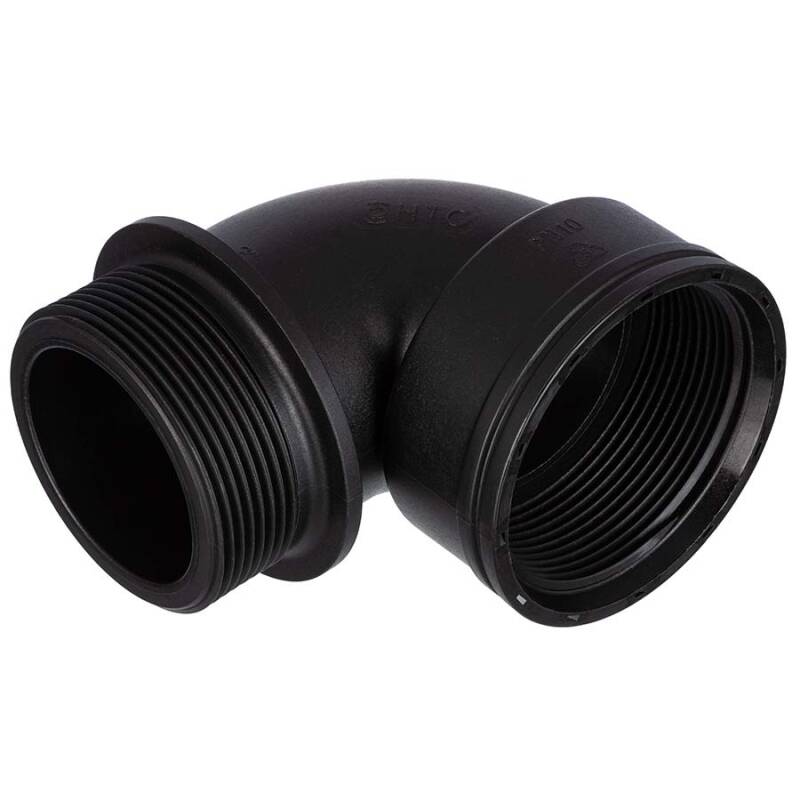

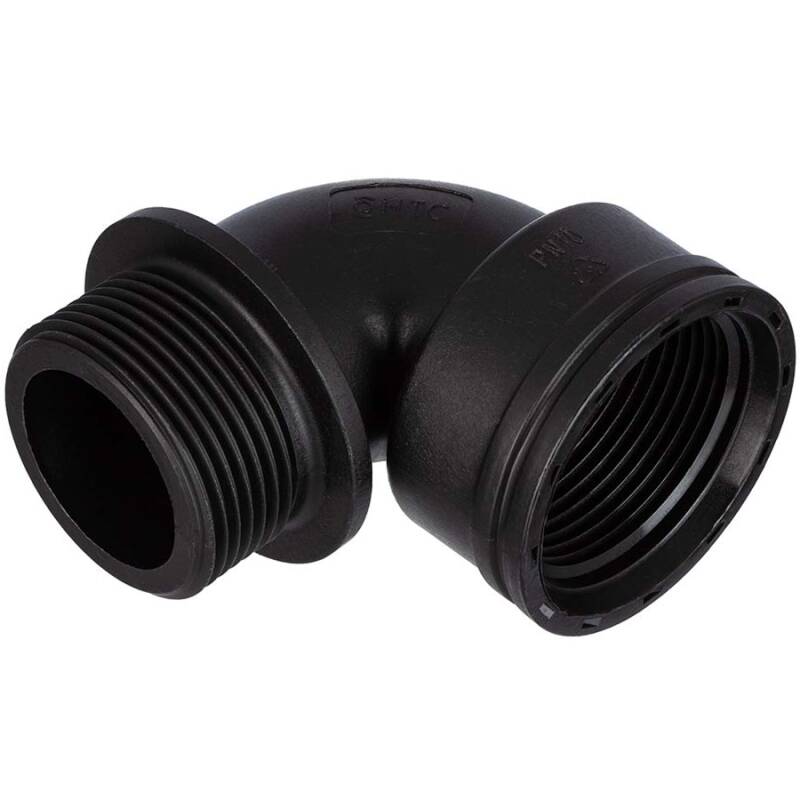

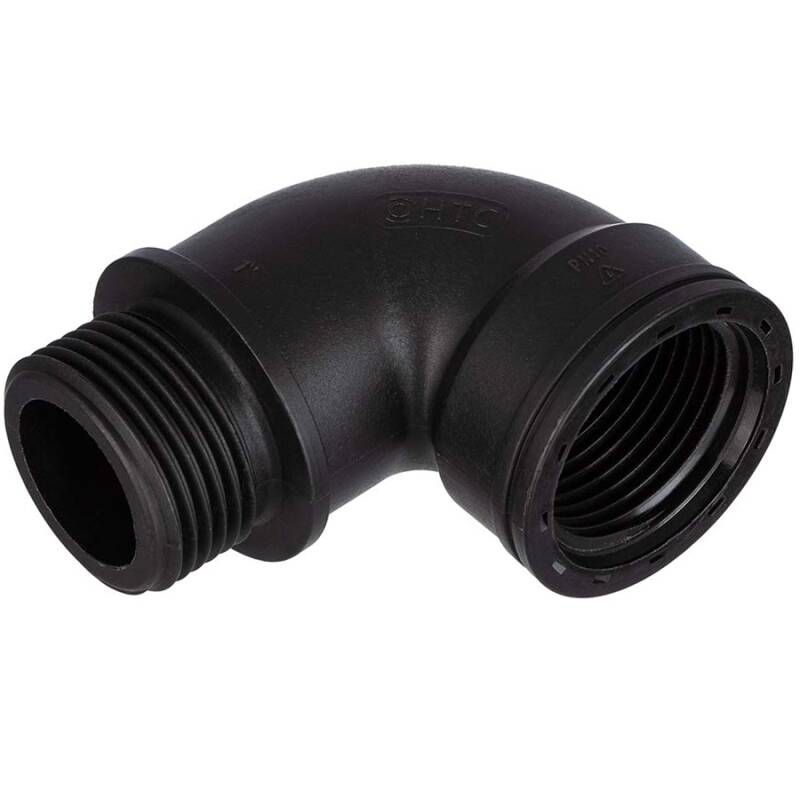

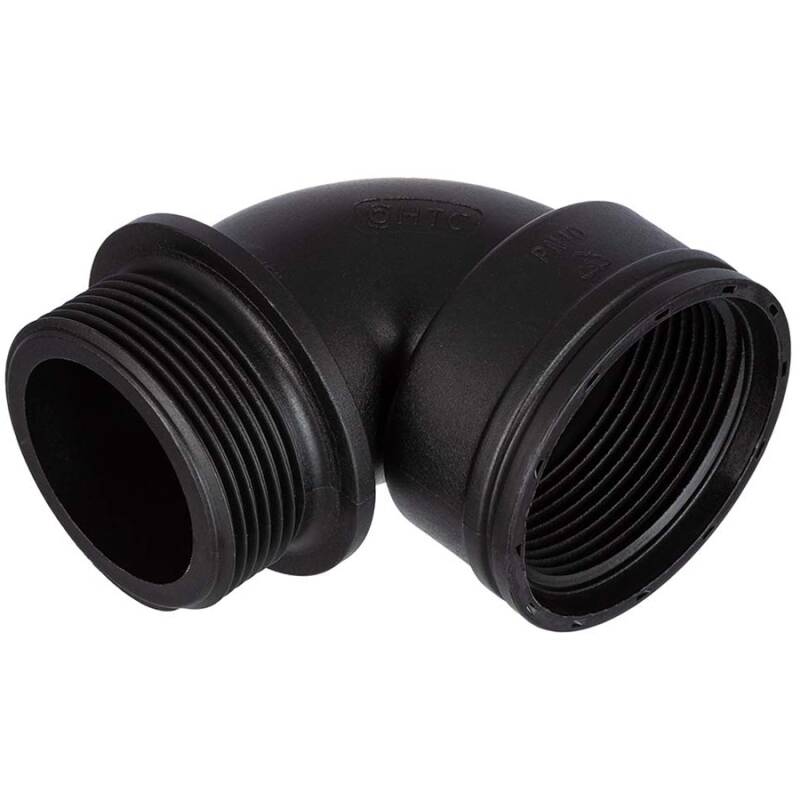

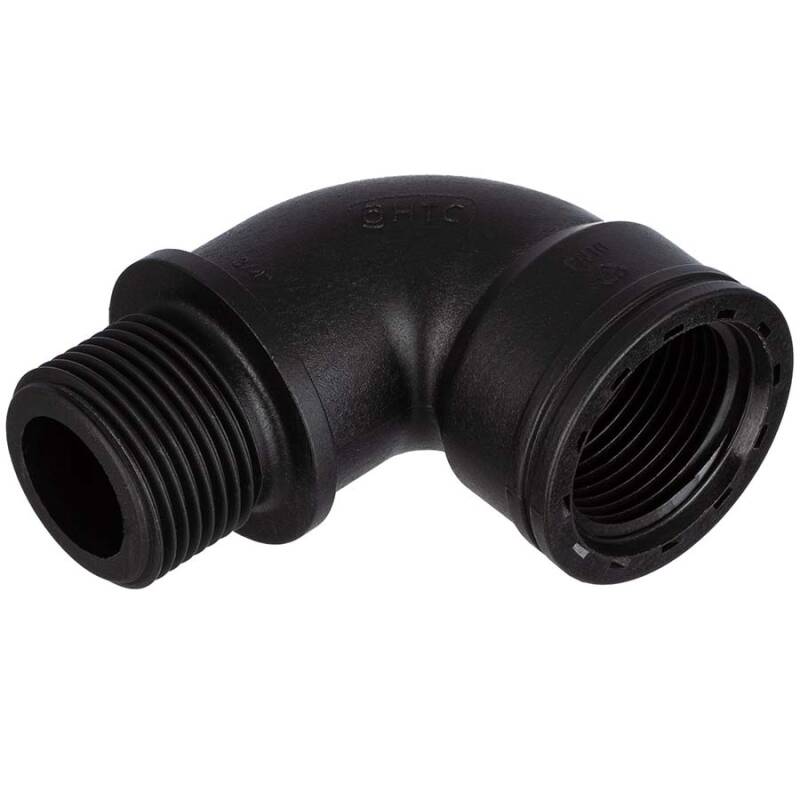

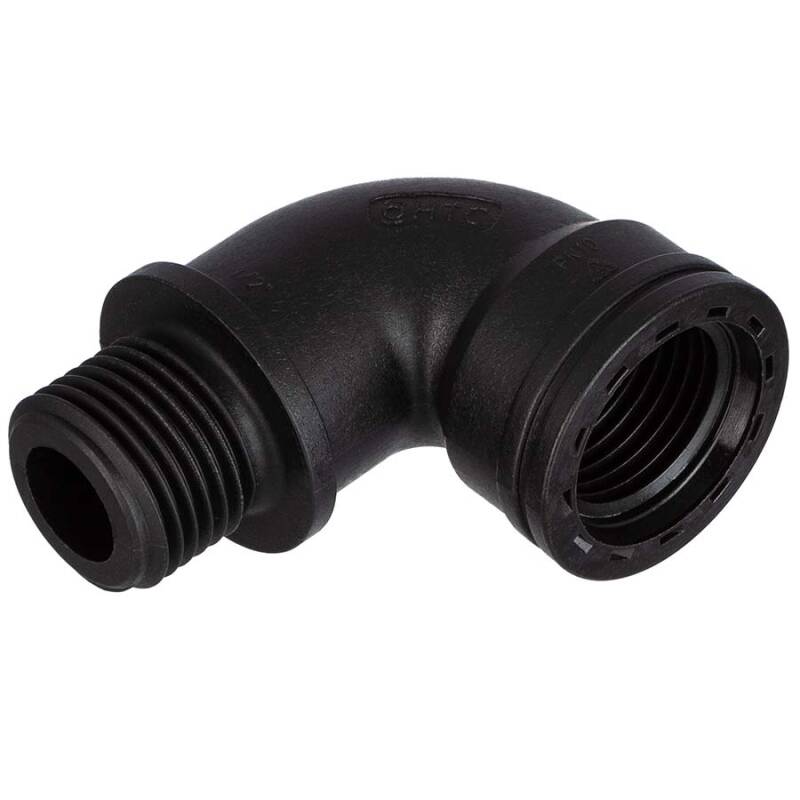

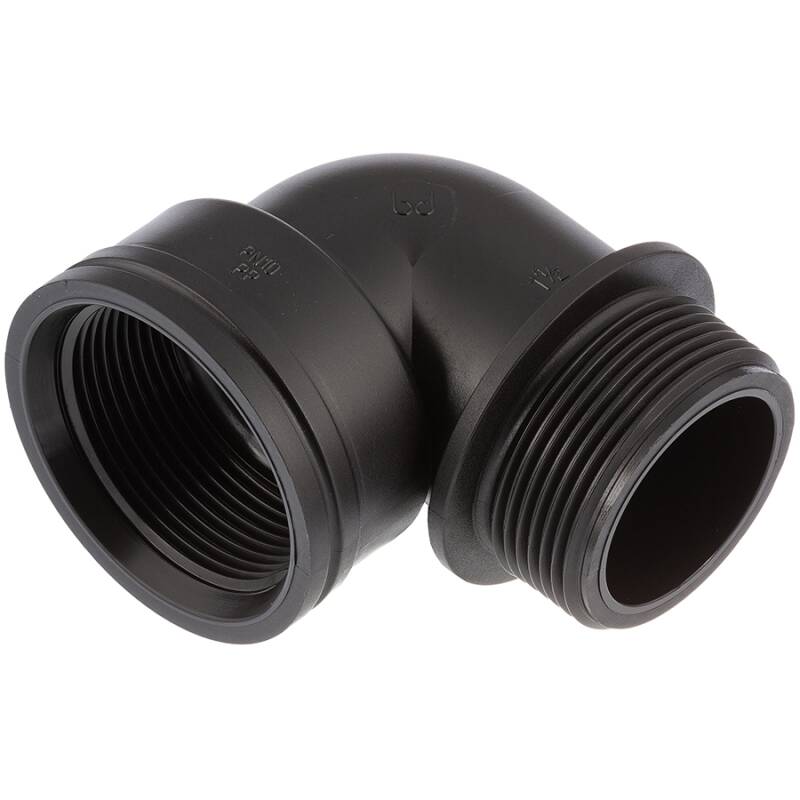

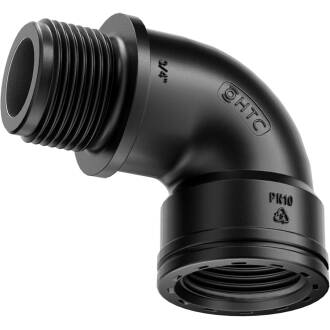

PP female/male threaded 90° elbow

from
0,83 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Product picture
Item no.
Variation
DN
E
G
G1
H
H1
L
L1
Price
Quantity
PP female/male threaded 90° elbow
PF0410.020.020
1/2"
12
29,5
1/2" (20,96mm)
1/2" (20,96mm)
46
59
15,5
17
0,83 €*
pc:
PP female/male threaded 90° elbow
PF0410.025.025
3/4"
17
34,5
3/4" (26,44mm)
3/4" (26,44mm)
55,5
69,5
19
20
0,93 €*
pc:
PP female/male threaded 90° elbow
PF0410.032.032
1"
23
42,5
1" (33,25mm)
1" (33,25mm)
63
79,5
18,5
21
1,08 €*
pc:
PP female/male threaded 90° elbow
PF0410.040.040
1 1/4"
30
53
1 1/4" (41,91mm)
1 1/4" (41,91mm)
77,5
80
20,5
25
2,07 €*
pc:
PP female/male threaded 90° elbow
PF0410.050.050
1 1/2"
57,5
1 1/2"(47,81mm)
1 1/2"(47,81mm)
80
87
21,5
25
2,11 €*
pc:
PP female/male threaded 90° elbow
PF0410.063.063
2"
49
70
2"(59,61mm)
2"(59,61mm)
95
105
23
29
3,24 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PP Polypropylen Winkel 90°, Innengewinde x Aussengewinde

Anschluss:
Innengewinde x Aussengewinde
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
0°C bis 80°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C
Material:
PP Polypropylen faserverstärkt
Farbe:
Schwarz
  • absolut ungiftig, geruchs- und geschmackslos
  • geeignet für den Transport von Trinkwasser, Wein, Getränke und andere nährenden Flüssigkeiten
  • beständig gegenüber anorganischen Salzen in wässrigen Lösungen, schwach organischen Säuren und Laugen, Alkohol und teilweise Ölen
  • sehr gute mechanische Eigenschaften gegenüber Waschchemikalien o.ä
  • schützt als elektrisch isolierendes Material gegen elektrochemische Korrosion und Perforation, welche durch Streuströme verursacht wird
  • Wetter-, Ozon und UV-beständig
DOWNLOADRoHS Bestätigung HTC

DOWNLOAD Polypropylen PP Temperatur-/ Druckdiagramm
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD chemische Beständigkeit von Kunststoffen
