PP female threaded socket

from
0,81 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Product picture
Item no.
Variation
E
G
H
K
L(1)
Price
Quantity

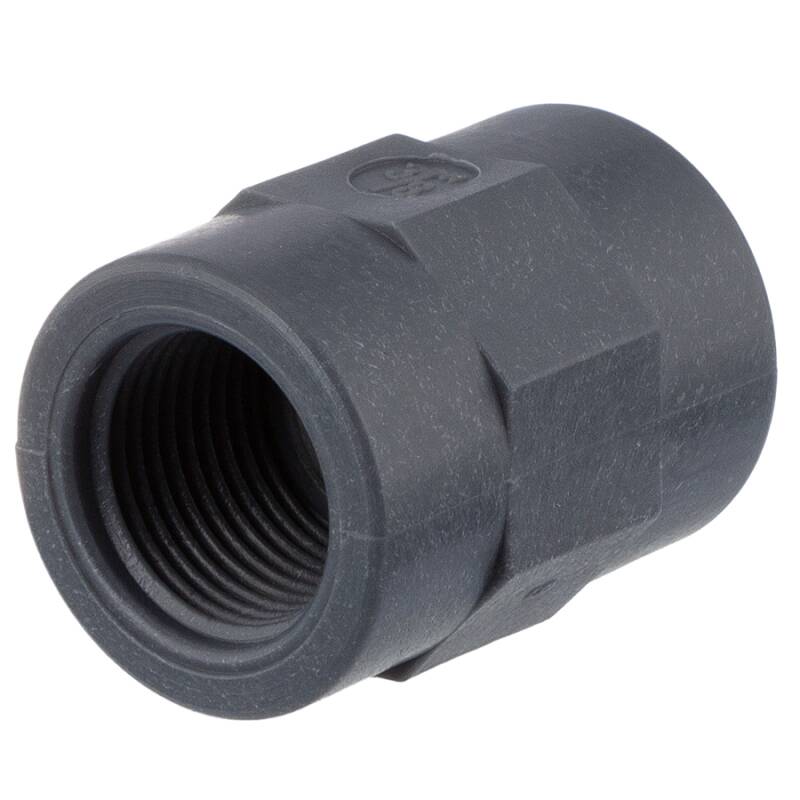

PP female threaded socket
PF0103.000.016
3/8"
24,5
3/8" (16,66mm)
33
25
15
2,19 €*
pc:
PP female threaded socket 1/2"
PF0103.000.020
1/2"
30
1/2 (20,96mm)"
35,5
30
16
0,81 €*
pc:
PP female threaded socket 3/4"
PF0103.000.025
3/4"
35,5
3/4" (26,44mm)
42
36
19
0,86 €*
pc:

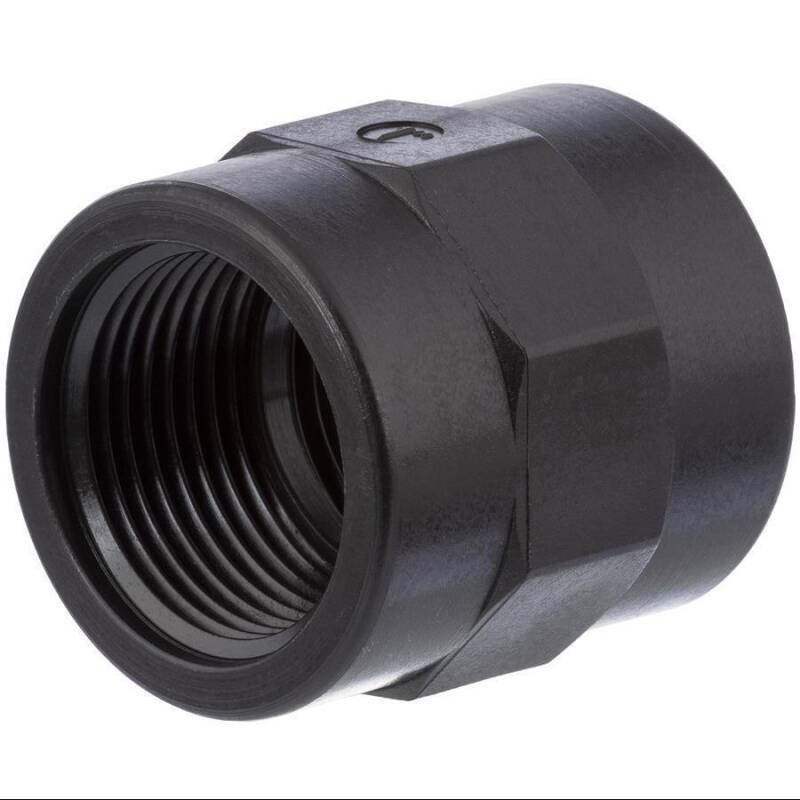

PP female threaded socket 1"
PF0103.000.032
1"
43
1" (33,25mm)
46,5
43
22
1,06 €*
pc:
PP female threaded socket 1 1/4"
PF0103.000.040
1 1/4"
57,5
1 1/4" (41,91mm)
53
58
24
1,95 €*
pc:

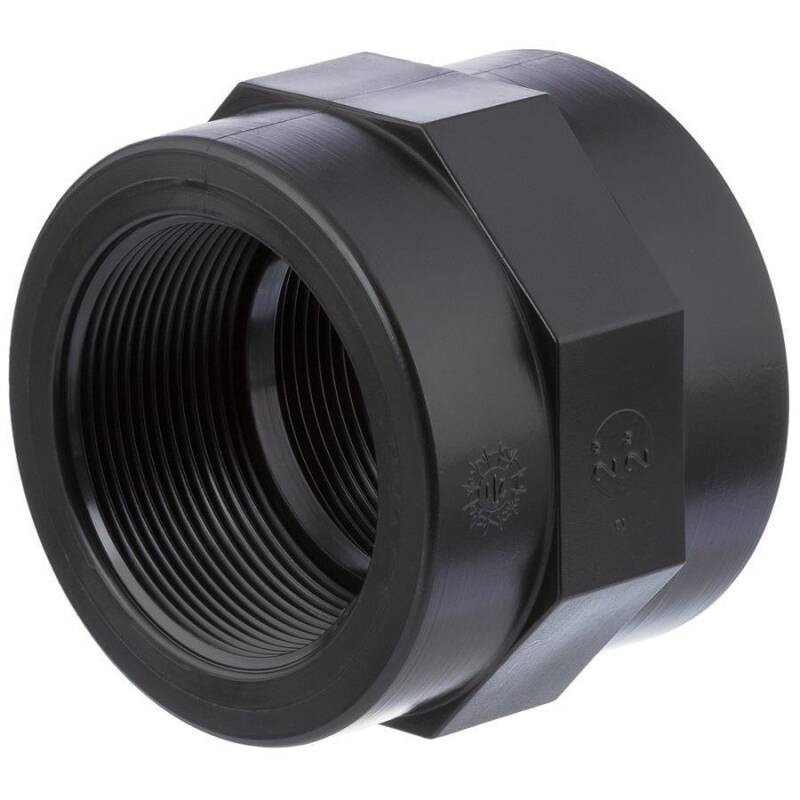

PP female threaded socket 1 1/2"
PF0103.000.050
1 1/2"
65
1 1/2" (47,80mm)
58,5
70
26,5
2,30 €*
pc:
PP female threaded socket 2"
PF0103.000.063
2"
805
2" (59,61mm)
67
83
30
3,26 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PP Polypropylen Muffe 2fach Innengewinde

Anschluss:
2fach Innengewinde
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
0°C bis 80°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C
Material:
PP Polypropylen faserverstärkt
Farbe:
Schwarz, 3/8" in Grau
  • absolut ungiftig, geruchs- und geschmackslos
  • geeignet für den Transport von Trinkwasser, Wein, Getränke und andere nährenden Flüssigkeiten
  • beständig gegenüber anorganischen Salzen in wässrigen Lösungen, schwach organischen Säuren und Laugen, Alkohol und teilweise Ölen
  • sehr gute mechanische Eigenschaften gegenüber Waschchemikalien o.ä
  • schützt als elektrisch isolierendes Material gegen elektrochemische Korrosion und Perforation, welche durch Streuströme verursacht wird
  • Wetter-, Ozon und UV-beständig
DOWNLOAD RoSH Konformitätserklärung - Bucchi s.R.l.

DOWNLOAD Polypropylen PP Temperatur-/ Druckdiagramm
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD chemische Beständigkeit von Kunststoffen
