Variants

Item no.
Variation
DN
DN(1)
DN(2)
E
G
H
L(1)
Price
Quantity
PF0808.032.025
1" x 25/20/13mm
25
20
13
40,5
1" (33,25mm)
93
15
2,57 €*
pc:
PF0808.040.025
1 1/4" x 25/18/12mm
25
18
12
50,5
1 1/4" (41,91mm)
93,5
16
3,09 €*
pc:
PF0808.050.040
1 1/2" x 40/32/25mm
40
32
25
55,5
1 1/2" (47,80mm)
93,5
16
4,45 €*
pc:
PF0808.063.050
2" x 50/38/32mm
50
38
32
70
2" (59,61mm)
93,5
13
6,05 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

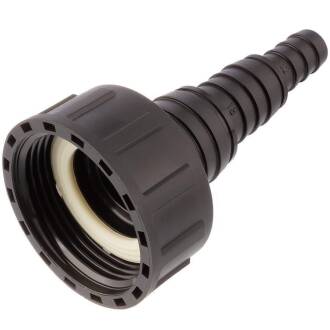

PP Stufenschlauchtülle Überwurfmutter x Tülle 3stufig

Anschluss:
Überwurfmutter mit Aussengewinde x Stufenschlauchtülle
Gewinde:
BSP Rohrgewinde G
Temperatur:
0°C bis 80°C
Arbeitsdruck (PN):
max. 6 bar bei 20°C
Material:
PP Polypropylen glasfaserverstärkt
Dichtung:
Flachdichtung EPDM (lebensmittelecht)
Farbe:
Schwarz ähnl. RAL 9011, Dichtung: Weiss
  • absolut ungiftig, geruchs- und geschmackslos
  • geeignet für den Transport von Trinkwasser, Wein, Getränke und andere nährenden Flüssigkeiten
  • beständig gegenüber anorganischen Salzen in wässrigen Lösungen, schwach organischen Säuren und Laugen, Alkohol und teilweise Ölen
  • sehr gute mechanische Eigenschaften gegenüber Waschchemikalien o.ä
  • schützt als elektrisch isolierendes Material gegen elektrochemische Korrosion und Perforation, welche durch Streuströme verursacht wird
  • Wetter-, Ozon und UV-beständig
DOWNLOAD Polypropylen PP Temperatur-/ Druckdiagramm
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD RoHS Konformitätserklärung - Bucchi s.R.l.
