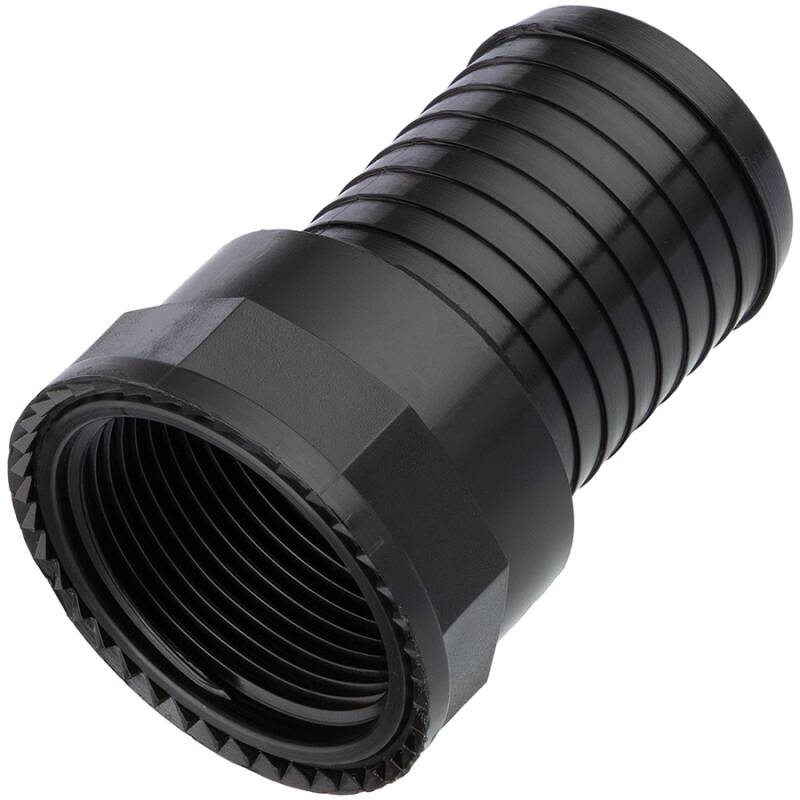

PP hose tail with female thread

from
1,57 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Item no.
Variation
D
DN
G
L
L1
L2
Price
Quantity
PF0804.020.013
1/2" x 13mm
14,5/13
8
1/2" (20,96mm)
50
13
31
2,06 €*
PF0804.020.019
1/2" x 19mm
20,5/19
15
1/2" (20,96mm)
57
13
38
2,26 €*
pc:
PF0804.025.013
3/4" x 13mm
15,5/13,5
10
3/4" (26,44mm)
53
15
33,5
1,57 €*
PF0804.025.019
3/4" x 19mm
21,5/19,5
15
3/4" (26,44mm)
57
15
37,5
2,48 €*
pc:
PF0804.040.032
1 1/4" x 32mm
33/31,5
24,5
1 1/4" (41,91mm)
77,5
25
44
6,21 €*
pc:
PF0804.040.040
1 1/4" x 40mm
41/39,5
32
1 1/4" (41,91mm)
77,5
25
45
6,25 €*
pc:
PF0804.050.040
1 1/2" x 40mm
40,5/39,5
32
1 1/2" (47,81mm)
66,5
17
41
6,70 €*
pc:
PF0804.050.050
1 1/2" x 50mm
50/48,5
38,5
1 1/2" (47,81mm)
60,5
18
39
7,14 €*
PF0804.063.050
2" x 50mm
51/50
41,5
2" (59,61mm)
70
18
43
12,34 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Schlauchtülle PP Schwarz Innengewinde x Schlauchtülle>
Anschluss:
Innengewinde feststehend x Schlauchtülle
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
0°C bis 60°C
Arbeitsdruck (PN):
max. 6 bar bei 20°C
Material:
PP Polypropylen faserverstärkt
Farbe:
Schwarz
  • absolut ungiftig, geruchs- und geschmackslos
  • geeignet für den Transport von Trinkwasser, Wein, Getränke und andere nährenden Flüssigkeiten
  • beständig gegenüber anorganischen Salzen in wässrigen Lösungen, schwach organischen Säuren und Laugen, Alkohol und teilweise Ölen
  • sehr gute mechanische Eigenschaften gegenüber Waschchemikalien o.ä
  • schützt als elektrisch isolierendes Material gegen elektrochemische Korrosion und Perforation, welche durch Streuströme verursacht wird
  • Wetter-, Ozon und UV-beständig

orange dot Download

DOWNLOADRoHS Bestätigung HTC

DOWNLOAD Polypropylen PP Temperatur-/ Druckdiagramm
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD chemische Beständigkeit von Kunststoffen
