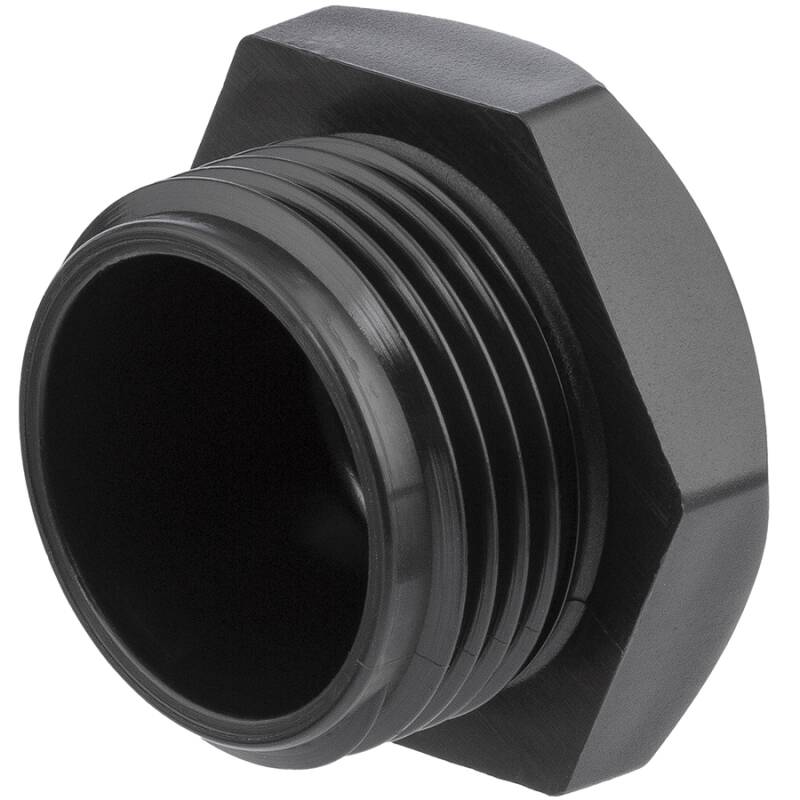

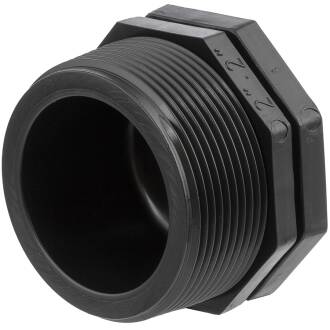

PP male threaded end cap

0,38 €

including 19% VAT., plus shipping

Item number: PF0817

How to measure a threaded fitting

3D View

Item no.	Variation	G1	H	K	L	Price	Quantity
PF0817.000.016	3/8"	3/8" (16,66mm)	21	22	13,5	2,00 €^*	pc:
PF0817.000.020	1/2"	1/2" (20,96mm)	22,5	27	14	0,38 €^*	pc:
PF0817.000.025	3/4"	3/4" (26,44mm)	24	34	15	0,40 €^*	pc:
PF0817.000.032	1"	1" (33,25mm)	25	40	15,5	0,51 €^*	pc:
PF0817.000.040	1 1/4"	1 1/4" (41,91mm)	39	46	20	0,68 €^*	pc:
PF0817.000.050	1 1/2"	1 1/2" (47,80mm)	39	55	20	1,24 €^*	pc:
PF0817.000.063	2"	2" (59,61mm)	43	64	24	1,63 €^*	pc:

including 19% VAT., plus shipping

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

E-Mail

I would like to be notified by e-mail.
You will receive an automatic e-mail as soon as the item is available again. Unfortunately, we are not able to inform you in advance about an expected delivery date.

I have taken note of the privacy policy. I consent to my details and data being collected and stored electronically in order to respond to my enquiry. Note: you can revoke your consent for the future at any time by sending an e-mail to info@ht-connect.de.

Article details

Description Miscellaneous

Description

PP Enkappe Aussengewinde

Anschluss:

Aussengewinde

Gewinde:

BSP G, , Abdichtung mit Teflonband o.ä.

Temperatur:

0°C bis 80°C

Arbeitsdruck ():

max. 10 bar bei 20°C

Material:

PP Polypropylen glasfaserverstärkt

Farbe:

Schwarz, 3/8" in Grau

absolut ungiftig, geruchs- und geschmackslos
geeignet für den Transport von Trinkwasser, Wein, Getränke und andere nährenden Flüssigkeiten
beständig gegenüber anorganischen Salzen in wässrigen Lösungen, schwach organischen Säuren und Laugen, Alkohol und teilweise Ölen
sehr gute mechanische Eigenschaften gegenüber Waschchemikalien o.ä
schützt als elektrisch isolierendes Material gegen elektrochemische Korrosion und Perforation, welche durch Streuströme verursacht wird
Wetter-, Ozon und UV-beständig

DOWNLOAD Polypropylen PP Temperatur-/ Druckdiagramm

DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind

DOWNLOAD chemische Beständigkeit von Kunststoffen

DOWNLOAD RoSH Konformitätserklärung - Bucchi s.R.l.
