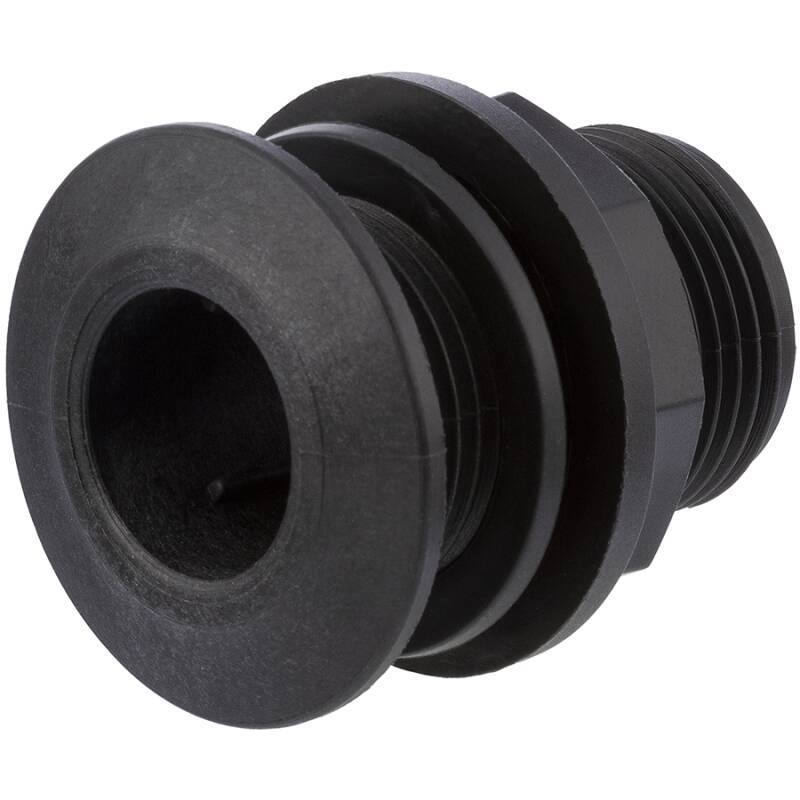

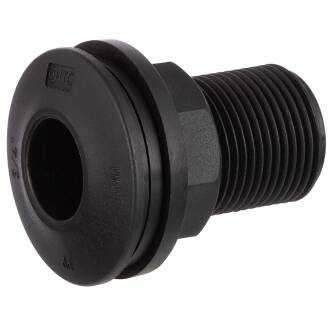

PP male threaded tank adapter with stopper

from
1,48 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Item no.
Variation
D
E
G1
H
L
L1
S
Weight
Price
Quantity
PF0822.000.020
1/2"
13
38
1/2" (20,96mm)
49
38
24,5
2,5
20
1,48 €*
pc:
PF0822.000.025
3/4"
18
43
3/4" (26,44mm)
52
41
27
2,5
28
1,71 €*
pc:
PF0822.000.032
1"
24
50
1" (33,25mm)
56
45
30
2,5
36
2,12 €*
PF0822.000.040
1 1/4"
29,5
57,5
1 1/4" (41,91mm)
65
54
40
2,5
60
2,40 €*
pc:
PF0822.000.050
1 1/2"
34,5
63,5
1 1/2" (47,80mm)
75
64
49
2,5
80
3,28 €*
pc:
PF0822.000.063
2"
45,5
73
2" (59,61mm)
91
80
66
2,5
123
3,67 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PP Tankdurchführung Tankconnector Schottverschraubung - Anschlag x Aussengewinde

techn. Zeichnung: einseitig Endanschlag (links) - Überwurfmutter frei drehend (rechts)

Anschluss:
Anschlag x Aussengewinde
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Material:
PP Polypropylen faserverstärkt
Dichtung:
EPDM (lebensmittelecht)
Temperatur:
0°C bis 80°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C
Farbe:
Schwarz ähnl. RAL 9011
  • absolut ungiftig, geruchs- und geschmackslos
  • geeignet für den Transport von Trinkwasser, Wein, Getränke und andere nährenden Flüssigkeiten
  • beständig gegenüber anorganischen Salzen in wässrigen Lösungen, schwach organischen Säuren und Laugen, Alkohol und teilweise Ölen
  • sehr gute mechanische Eigenschaften gegenüber Waschchemikalien o.ä
  • schützt als elektrisch isolierendes Material gegen elektrochemische Korrosion und Perforation, welche durch Streuströme verursacht wird
  • Wetter-, Ozon und UV-beständig

 Gewinde  mind. Bohrung
 1/2"  21,0mm
 3/4"  26,5mm
 1"  33,5mm
 1 1/4"  42,0mm
 1 3/4"  53,5mm
 2 1/2"  75,5mm
 2"  60,0mm
 3"  88,0mm
 4"  113,5mm
DOWNLOAD Polypropylen PP Temperatur-/ Druckdiagramm
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD RoSH Konformitätserklärung - Bucchi s.R.l.

Provider identification:

Bucchi s.r.l.
Via Bonsi, 57
48022 Lugo, Ravenna
E-Mail: info@bucchi.it


   Media

PF0822.000.020

1/2" .STEP-File

PF0822.000.025

3/4" .STEP-File

PF0822.000.032

1" .STEP-File

PF0822.000.040

1 1/4" .STEP-File

PF0822.000.050

1 1/2" .STEP-File

PF0822.000.063

2" .STEP-File
