All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

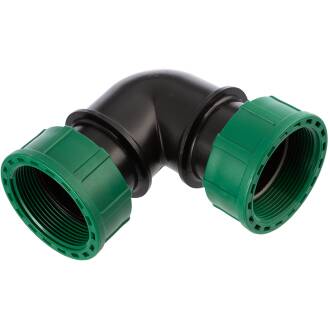

PP polypropylene manifold system fitting with union nut
The manifold system with union nuts (roll nuts). These individual components can be used to create almost any variant of a modular manifold system.
The union nuts are already fitted with internal O-rings and seal against flat-sealing external threads.
In contrast to a manifold system made of PVC-U, a manifold system made of polypropylene has all the advantages of this plastic, such as UV resistance and higher values.
Connection:
Male thread or union nut Female thread with sealing ring
Legend:
F = female = union nut incl. sealing ring
M = male = external thread
M = male = external thread
Thread:
BSP pipe thread G, not self-sealing, sealing against each other with integrated sealing ring against flat-sealing external thread
Temperature:
0°C to 60°C
Working pressure (PN):
max. 10 bar at 20°C Medium water, distributor for irrigation systems
material:
PP polypropylene / POM
O-ring:
NBR
Color:
Black, union nut: Green or black
Important: The manifold units are not suitable as a suspended manifold on a wall without sufficient protection against tensile forces from rising (suspended) pipes or heavy side attachments. The resulting forces can deform the manifold. Pipes must be secured or fixed in such a way that no tensile forces or lateral forces can act on the manifold and cause deformation.
The advantages of PP polypropylene manifolds compared to PVC-U
- Absolutely non-toxic, odorless and tasteless
- suitable for transporting drinking water, wine, drinks and other nourishing liquids
- resistant to inorganic salts in aqueous solutions, weak organic acids and alkalis, alcohol and some oils
- very good mechanical properties against washing chemicals etc.
- protects as an electrically insulating material against electrochemical corrosion and perforation caused by stray currents
- Weather, ozone and UV resistant
- Temperature resistant up to +60°C
- smooth-running union nuts even at high temperatures
