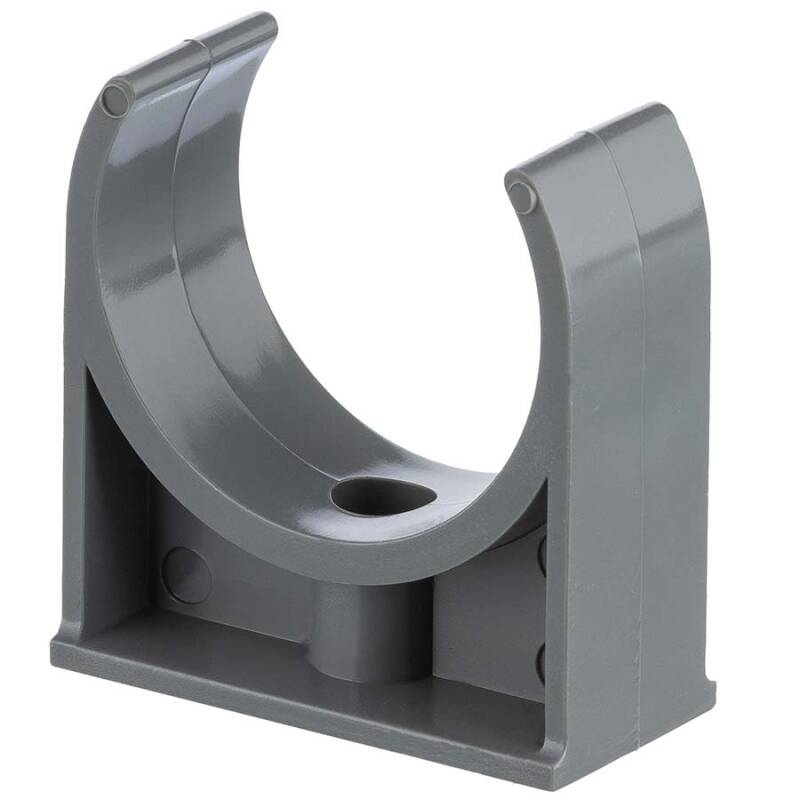

PVC-U pipe clamp HTC

SKU: AF0812
Auswahl Steuerzone / Lieferland
from
0,29 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
B
D
D1
d
d1
h
H
Pipe O-ø
Price
Quantity
PVC-U pipe clamp HTC, 20mm
AF0812.000.020
20mm
17
20
25
4,3
7,5
20,5
38
20
0,29 €*
pc.:
PVC-U pipe clamp HTC, 25mm
AF0812.000.025
25mm
20
25
31
4,3
7,5
20,5
40,5
25
0,36 €*
pc.:
PVC-U pipe clamp HTC, 32mm
AF0812.000.032
32mm
24
32
39
4,3
7,5
20,5
46
32
0,46 €*
pc.:
PVC-U pipe clamp HTC, 40mm
AF0812.000.040
40mm
26
40
48
5,7
9,5
20,5
53
40
0,54 €*
pc.:
PVC-U pipe clamp HTC, 50mm
AF0812.000.050
50mm
28
50
58
5,7
9,5
19,5
60,5
50
0,70 €*
pc.:
PVC-U pipe clamp HTC, 63mm
AF0812.000.063
63mm
30
63
71
5,3
9
20,5
69,5
63
0,81 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PVC-U Rohrschelle Rohrklemme HTC

Günstige Alternative aus verwindungssteifen PVC-U.
Anschluss:
vertikal oder horizontal - siehe Hinweis: Verwendung von Rohrschellen
Temperatur:
bis 60°C konstant, kurzzeitig 80°C
Material:
PVC-U
Farbe:
Farbe: Grau

DOWNLOAD Verwendung von Rohrklemmen
