PP pipe clamp

0,43 €

including 19% VAT., plus shipping

Item number: AF0810

How to measure a threaded fitting

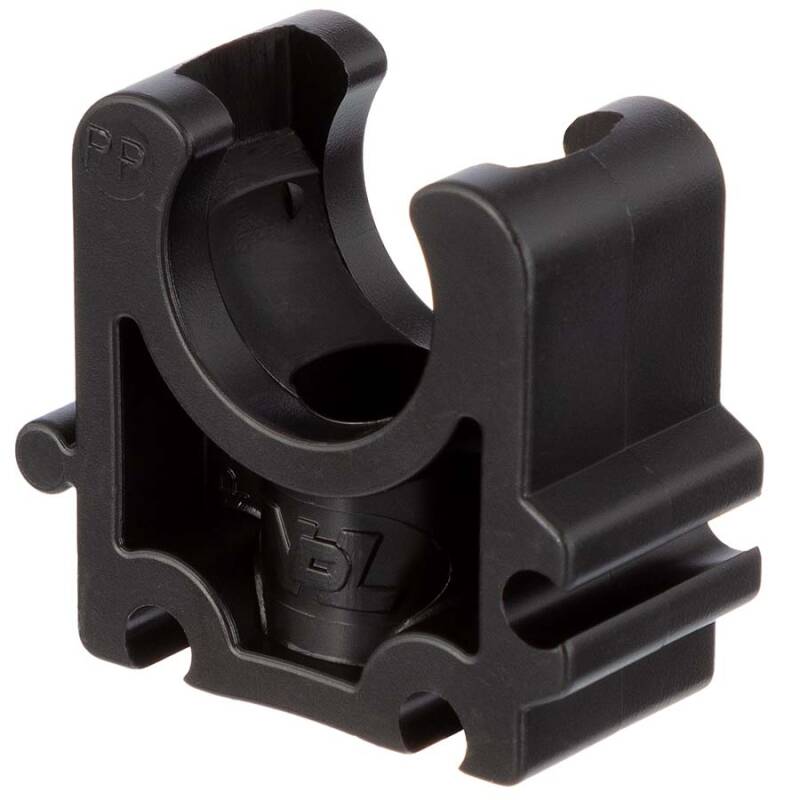

Rohrklemme 10 - 16mm Hersteller: VDL - nicht kompatibel mit Rohrklemme 20 - 200mm

Product picture	Item no.	Variation	A	B	C	D	E	F	Pipe A-Ø	Ø Schraubloch	Weight	Manufacturer	Price	Quantity
	AF0810.000.010	10mm	22	29	20	25	12	---	10	4	4		0,55 €^*	pc.:
	AF0810.000.012	12mm	22	29	20	26	12	---	12	4	4		0,61 €^*	pc.:
	AF0810.000.016	16mm	28	35	22	31	16	---	16	5	6		0,74 €^*	pc.:

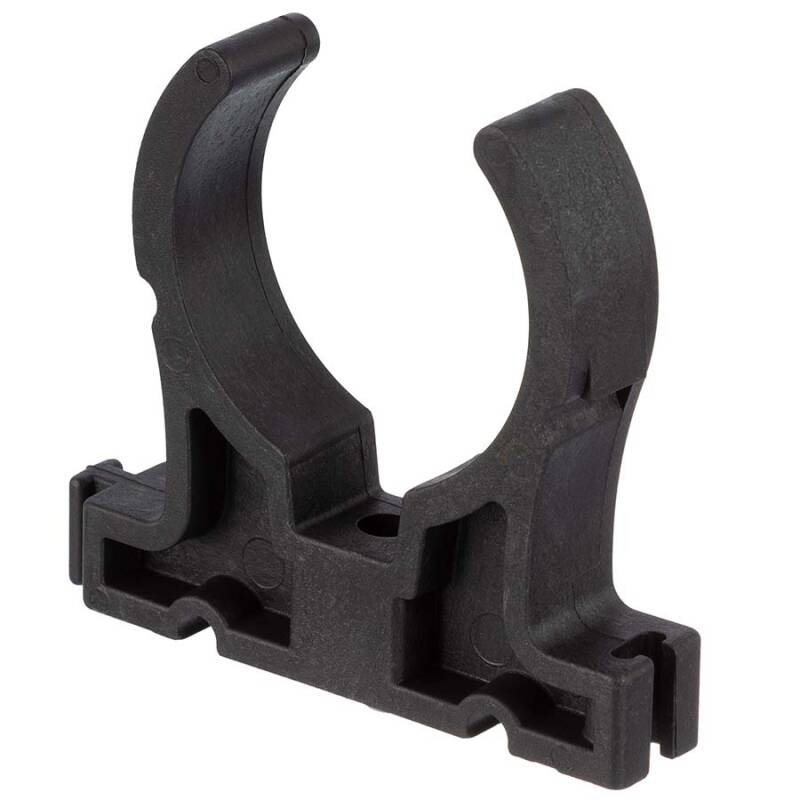

	AF0810.000.020	20mm	40	45	28	39	12	---	20	5	6		0,43 €^*	pc.:
	AF0810.000.025	25mm	45	50	33	44	13	---	25	5	8		0,48 €^*	pc.:
	A-810-32	32mm	53	58	40	40	14	---	32	5	12		0,50 €^*	pc.:
	AF0810.000.040	40mm	62	67	45	60	15	---	40	5	12		0,52 €^*	pc.:
	AF0810.000.050	50mm	75	80	50	60	16	68	50	5	30		0,79 €^*	pc.:
	AF0810.000.063	63mm	90	95	60	76	16	85	63	5	40		0,94 €^*	pc.:
	AF0810.000.075	75mm	105	110	70	88	20	98	75	6,3	63		1,19 €^*	pc.:
	AF0810.000.090	90mm	130	135	90	104	24	116	90	6,3	106		1,36 €^*	pc.:
	AF0810.000.110	110mm	150	155	90	126	24	142	110	8,3	125		3,25 €^*	pc.:
	AF0810.000.125	125mm	165	170	95	146	26	153	125	8,3	166		4,03 €^*	pc.:
	AF0810.000.160	160mm	235	240	115	184	28	195	160	10,3	275		4,95 €^*	pc.:
	AF0810.000.200	200mm	275	280	142	230	31	238	200	10,3	425		6,15 €^*	pc.:

including 19% VAT., plus shipping

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

E-Mail

I would like to be notified by e-mail.
You will receive an automatic e-mail as soon as the item is available again. Unfortunately, we are not able to inform you in advance about an expected delivery date.

I have taken note of the privacy policy. I consent to my details and data being collected and stored electronically in order to respond to my enquiry. Note: you can revoke your consent for the future at any time by sending an e-mail to info@ht-connect.de.

Article details

Description

PP Rohrschelle Rohrklemme Profi

Anschluss:

vertikal oder horizontal - siehe Hinweis: Verwendung von Rohrschellen

Temperatur:

bis 60°C konstant, kurzzeitig 80°C

Material:

Polypropylen

Farbe:

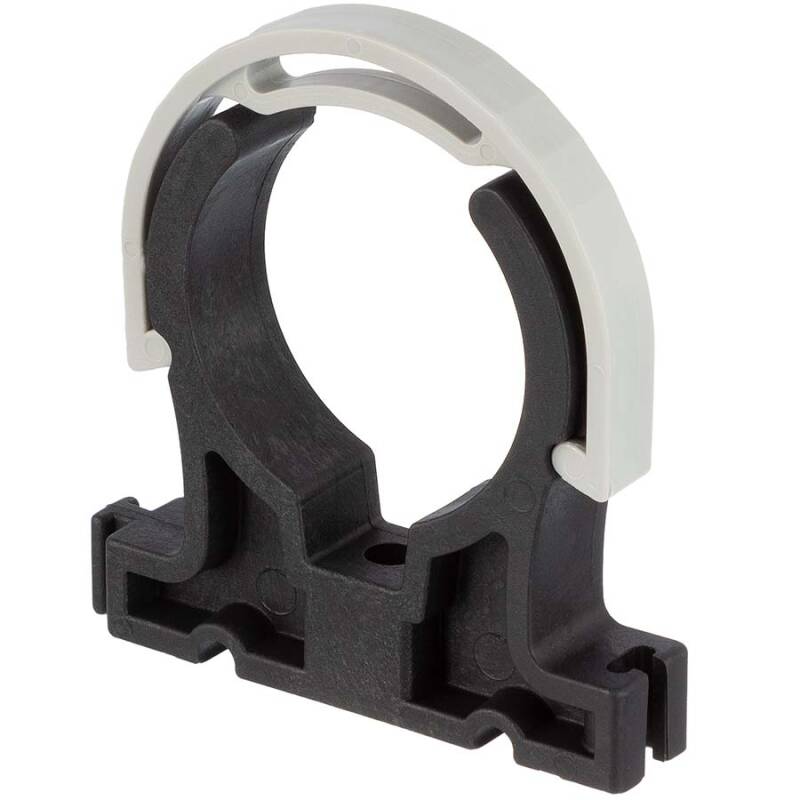

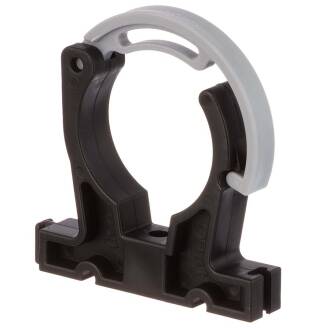

Basis Farbe: Schwarz, Haltebügel (ab 50mm) Farbe: Grau

PP Rohrschelle Rohrklemme, schwere Qualität

Verbinden Sie Rohrhalter von 20mm - 200mm Rohrdurchmesser schnell und einfach miteinander durch das integrierte "Zaspin Mecanic"-System für die maximale Stabilität parallel verlaufender Rohrstränge und ein optisch ansprechendes Gesamtbild.

Nicht kompatibel mit Rohrklemmen 10, 12 und 16mm

DOWNLOAD Verwendung von Rohrklemmen
