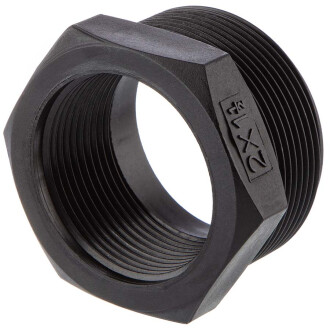

PP reducing male/female threaded bush

from
0,54 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
Variants

Product picture
Item no.
Variation
E
G
G1
H
K
L
L(1)
Price
Quantity

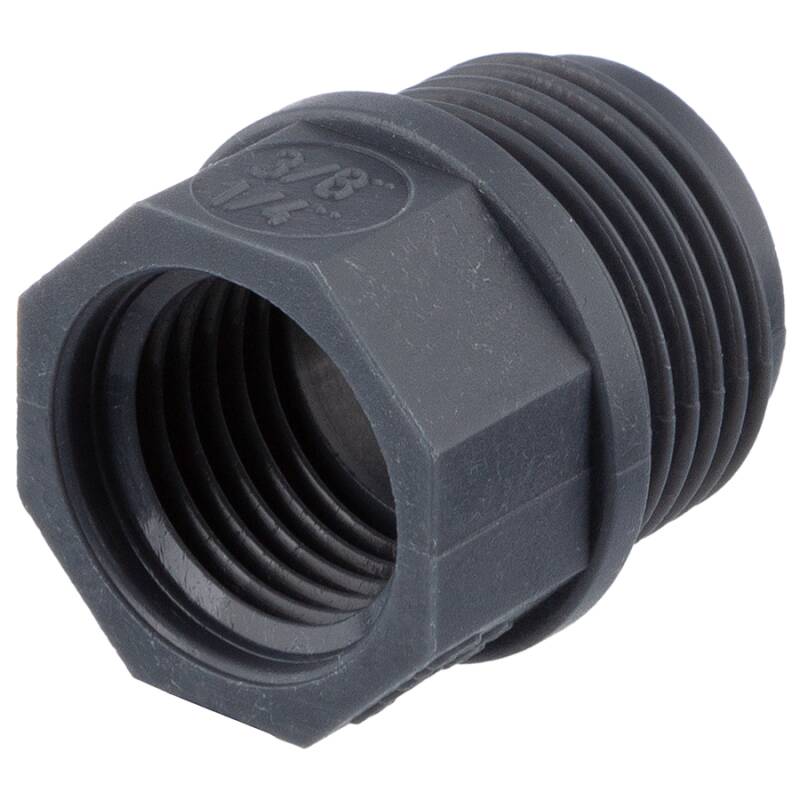

PP reducing male/female threaded bush 3/8" x 1/4"
PF0206.016.012
3/8" x 1/4"
19
1/4" (13,16mm)
3/8" (16,66mm)
20,5
17
9,5
10
2,68 €*
pc:

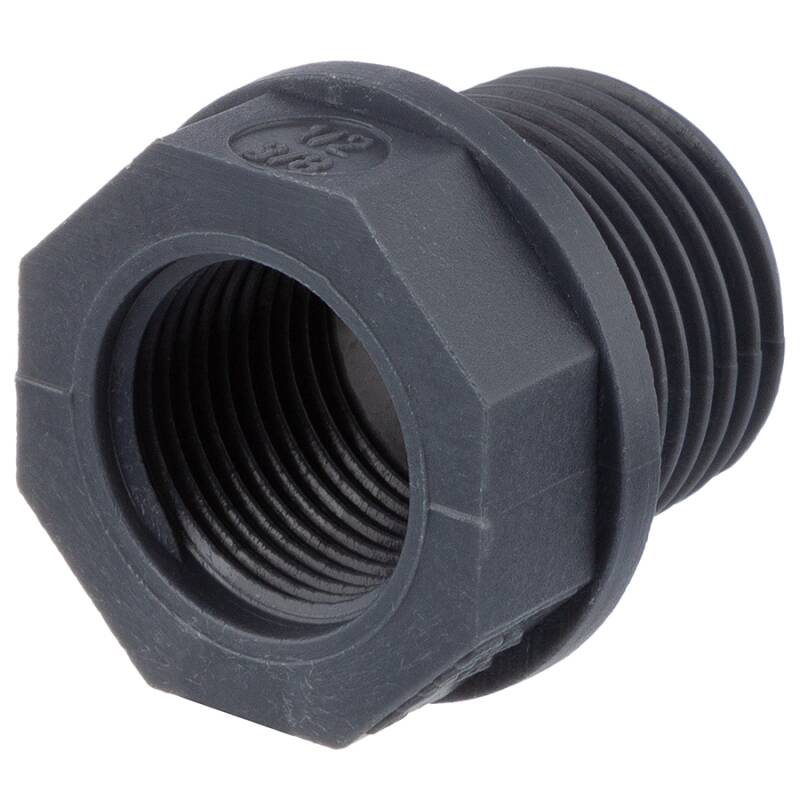

PP reducing male/female threaded bush 1/2" x 3/8"
PF0206.020.016
1/2" x 3/8"
28
3/8" (16,66mm)
1/2" (20,96mm)
27
25,5
16
15,5
2,68 €*
pc:

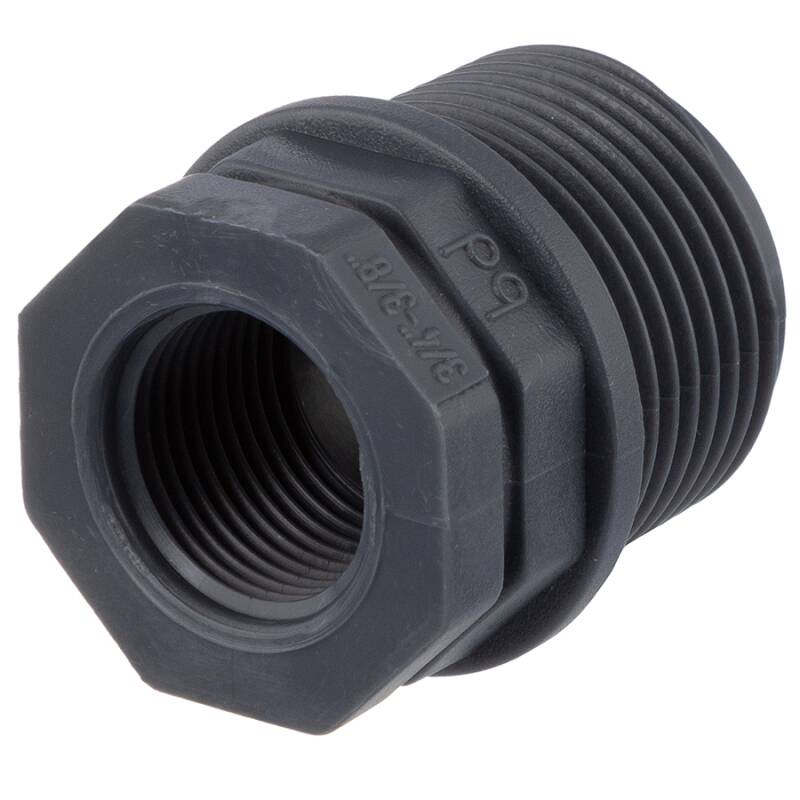

PP reducing male/female threaded bush 3/4" x 3/8"
PF0206.025.016
3/4" x 3/8"
30,5
3/8" (16,66mm)
3/4" (26,44mm)
33
27
18
15
2,68 €*
pc:

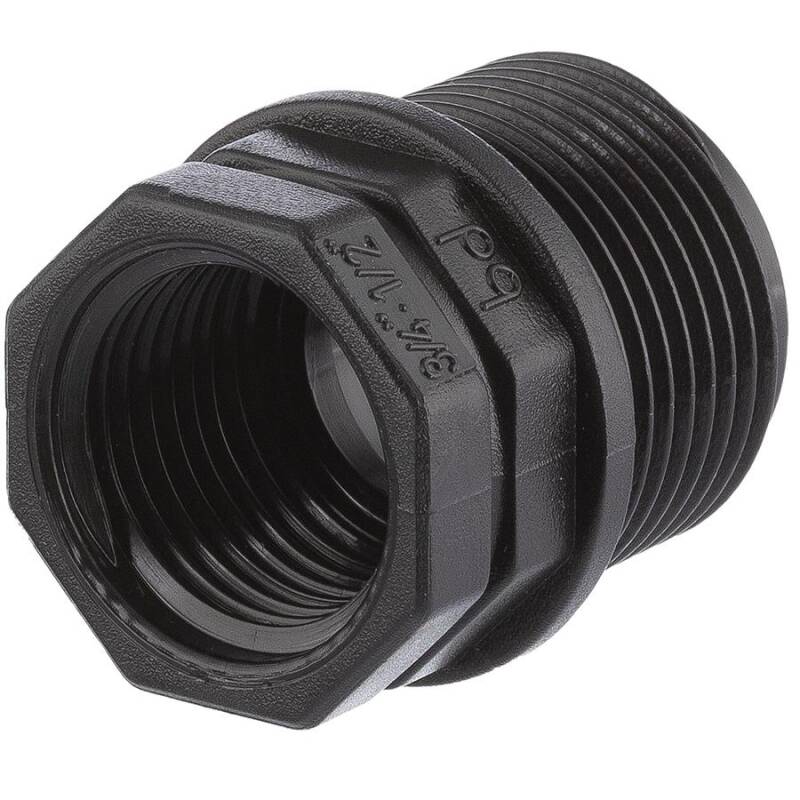

PP reducing male/female threaded bush 3/4" x 1/2"
PF0206.025.020
3/4" x 1/2"
31
1/2" (20,96mm)
3/4" (26,44mm)
33
27
18
17
0,65 €*
pc:

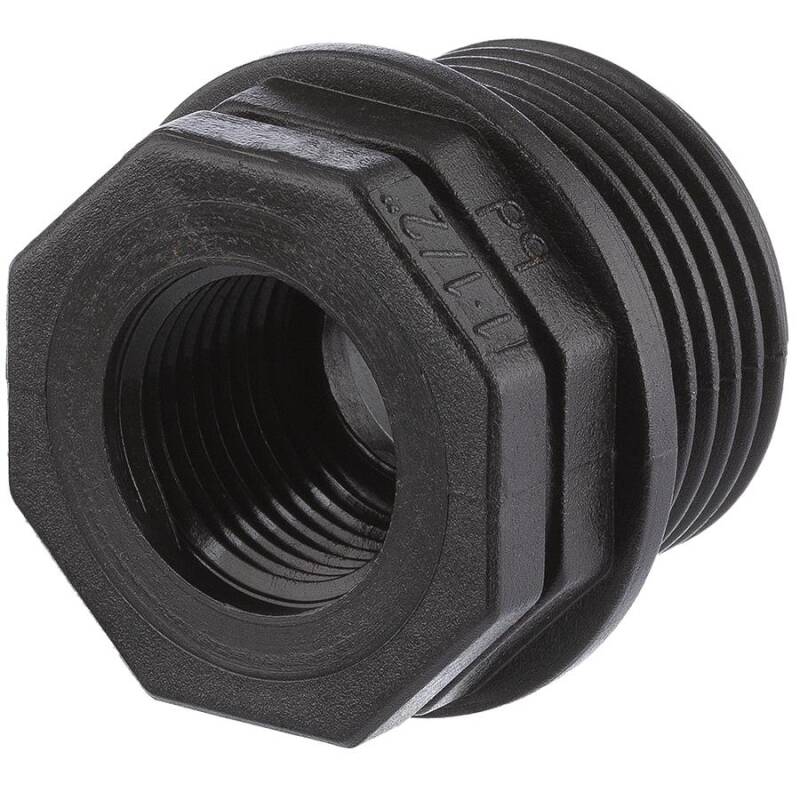

PP reducing male/female threaded bush 1" x 1/2"
PF0206.032.020
1" x 1/2"
41
1/2" (20,96mm)
1" (33,25mm)
35
36
19,5
17
0,70 €*
pc:

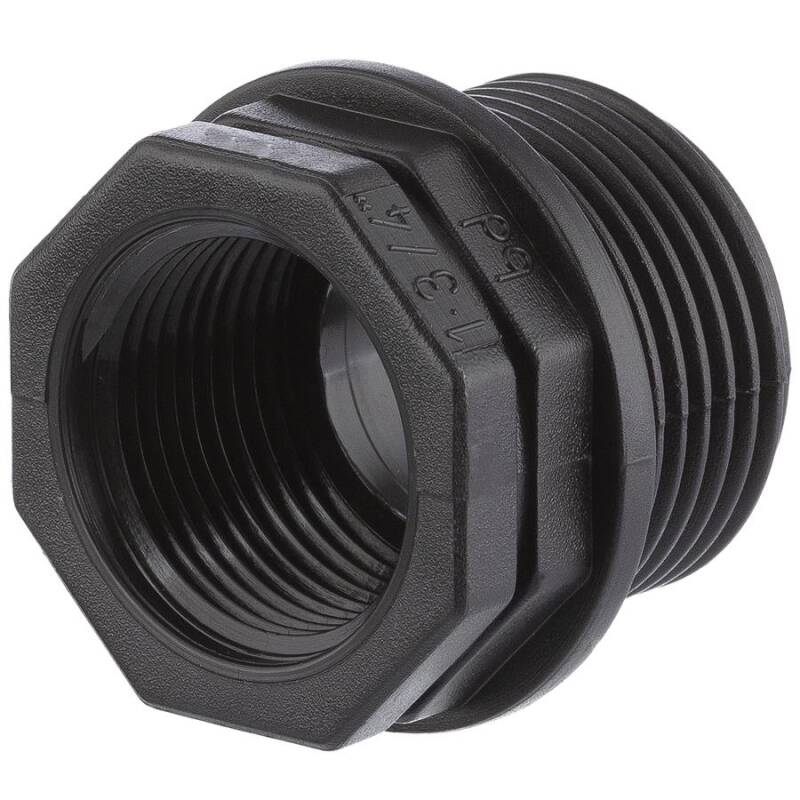

PP reducing male/female threaded bush 1" x 3/4"
PF0206.032.025
1" x 3/4"
41
3/4" (26,44mm)
1" (33,25mm)
35
36
19,5
19
0,54 €*
pc:
PP reducing male/female threaded bush 1 1/4" x 1/2"
PF0206.040.020
1 1/4" x 1/2"
49,5
1/2" (20,96mm)
1 1/4" (41,91mm)
39
46
21
15
1,36 €*
pc:

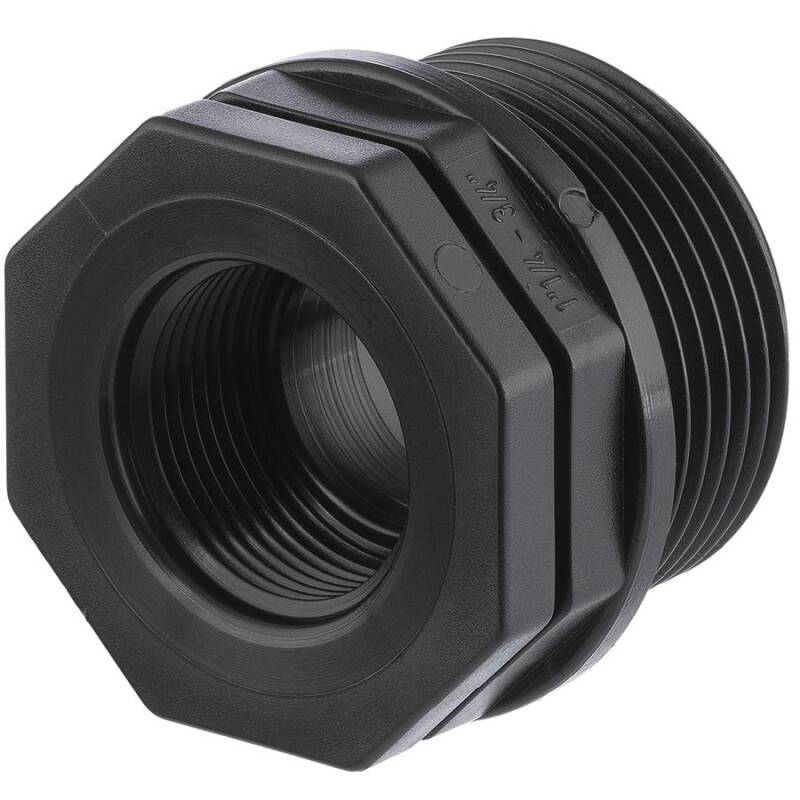

PP reducing male/female threaded bush 1 1/4" x 3/4"
PF0206.040.025
1 1/4" x 3/4"
49,5
3/4" (26,44mm)
1 1/4" (41,91mm)
39
46
21
16
1,36 €*
pc:

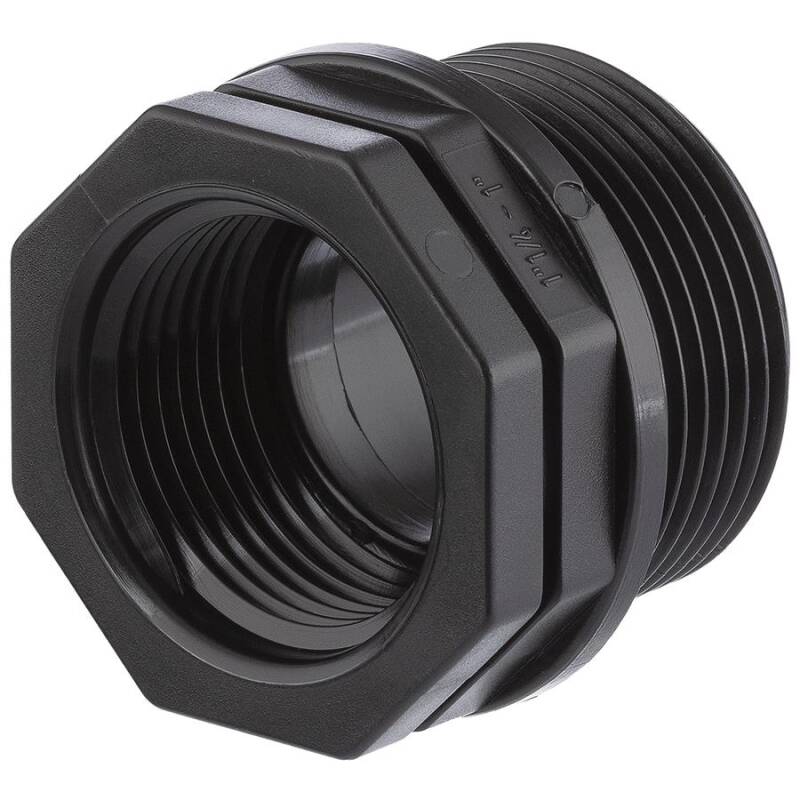

PP reducing male/female threaded bush 1 1/4" x 1"
PF0206.040.032
1 1/4" x 1"
49,5
1" (33,25mm)
1 1/4" (41,91mm)
39
46
21
19
1,36 €*
pc:

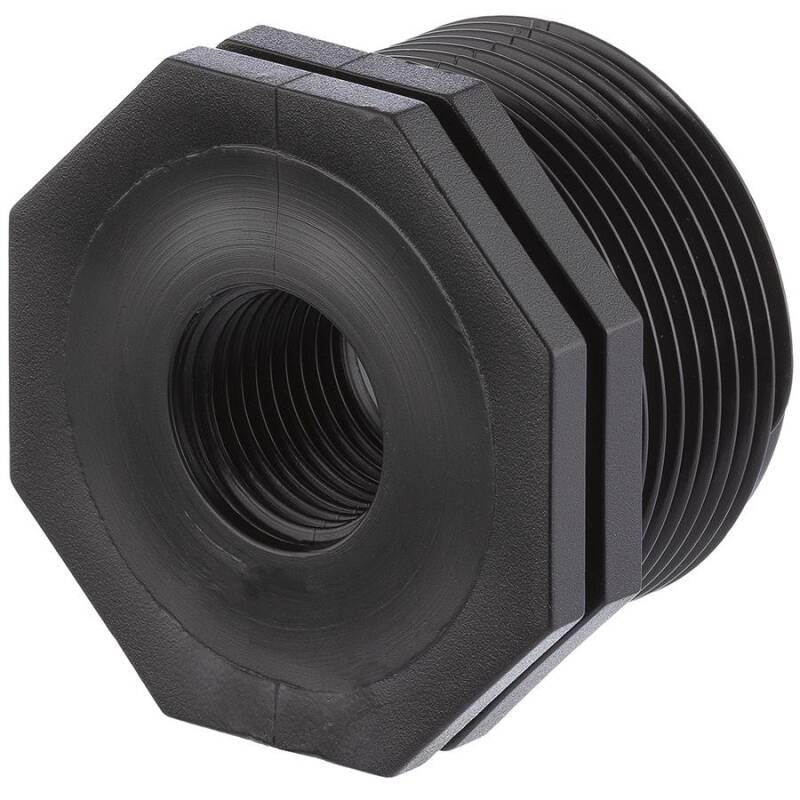

PP reducing male/female threaded bush 1 1/2" x 1/2"
PF0206.050.020
1 1/2" x 1/2"
---
1/2" (20,96mm)
1 1/2" (47,81mm)
36,5
54
24
18
1,88 €*
pc:

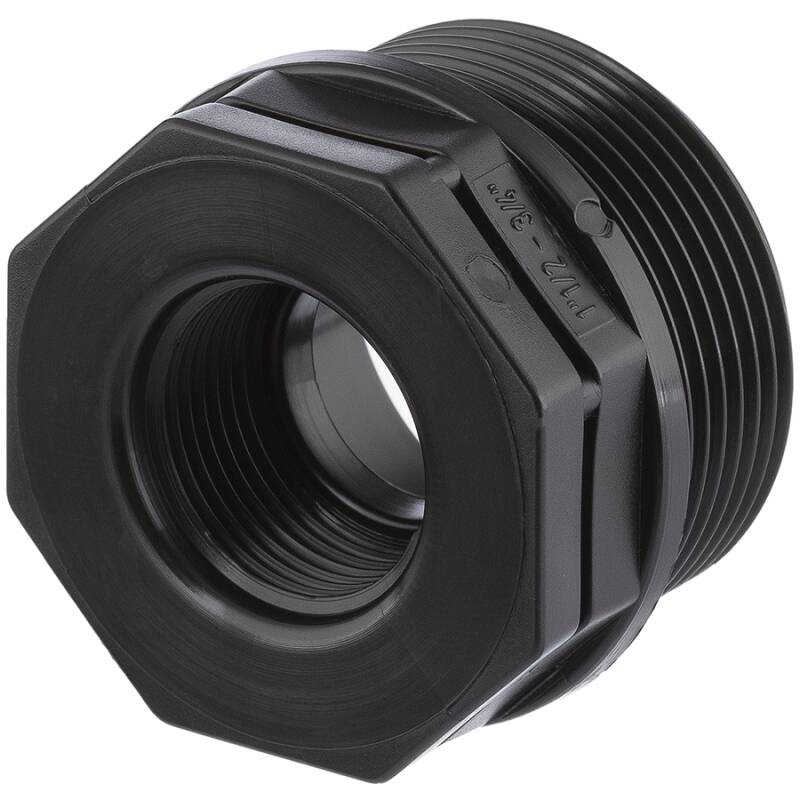

PP reducing male/female threaded bush 1 1/2" x 3/4"
PF0206.050.025
1 1/2" x 3/4"
54
3/4" (26,44mm)
1 1/2" (47,80mm)
39
50
21
16
2,02 €*
pc:

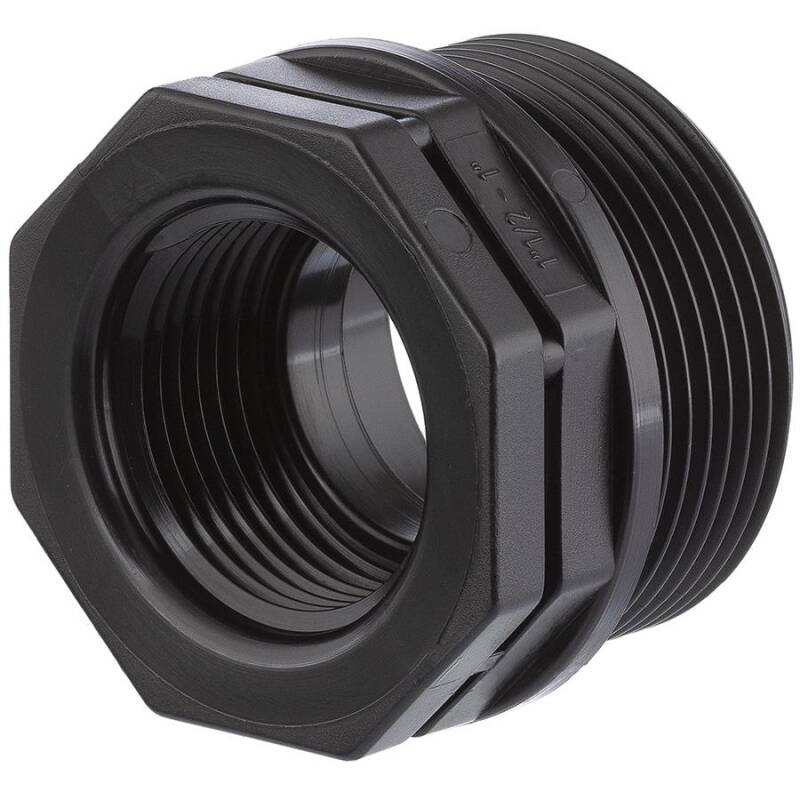

PP reducing male/female threaded bush 1 1/2" x 1"
PF0206.050.032
1 1/2" x 1"
54
1" (33,25mm)
1 1/2" (47,80mm)
39
50
21
19
2,02 €*
pc:

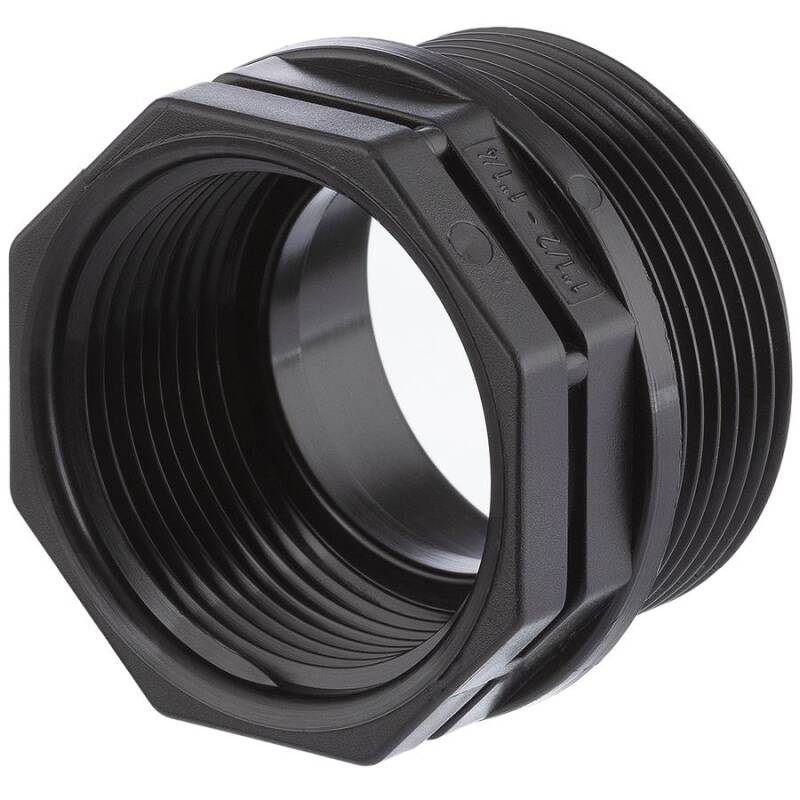

PP reducing male/female threaded bush 1 1/2" x 1 1/4"
PF0206.050.040
1 1/2" x 1 1/4"
54
1 1/4" (41,91mm)
1 1/2" (47,80mm)
39
50
21
21
2,02 €*
pc:
PP reducing male/female threaded bush 2" x 3/4"

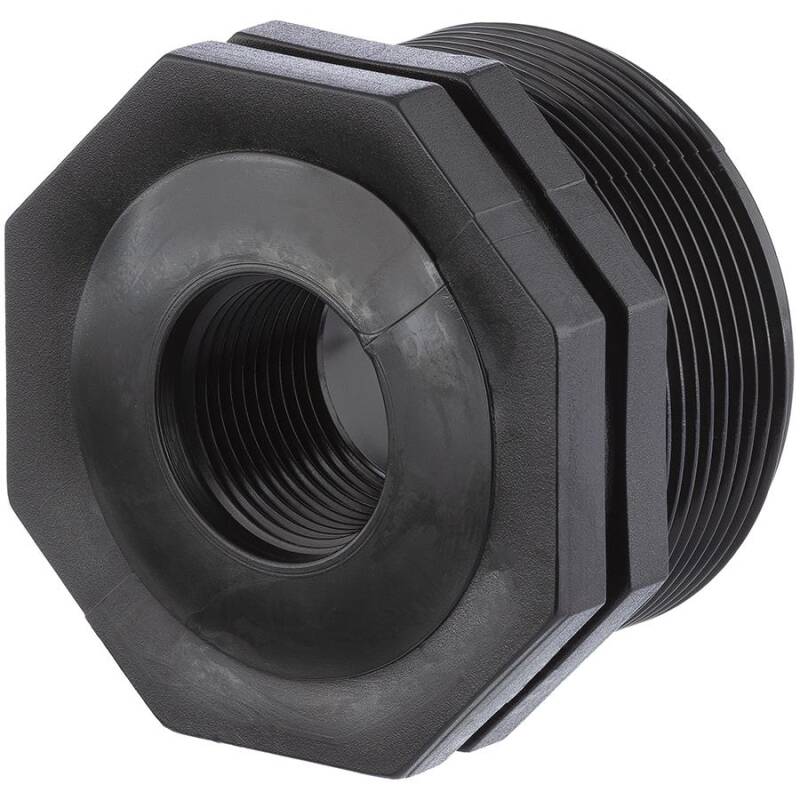

PF0206.063.025
2" x 3/4"
---
3/4" (26,44mm)
2" (59,61mm)
43,5
65
25
21
2,73 €*
pc:

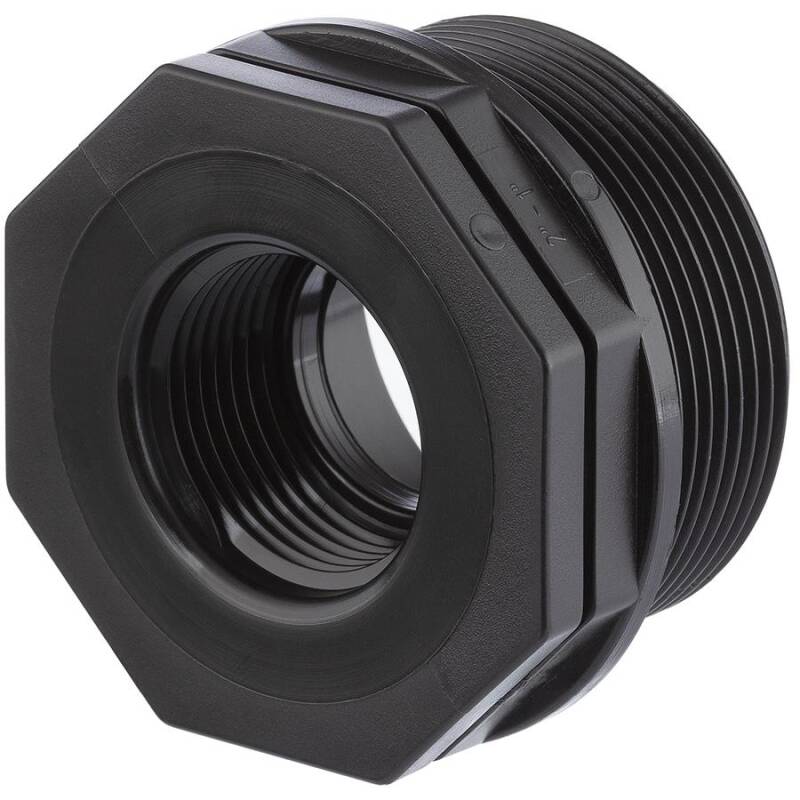

PP reducing male/female threaded bush 2" x 1"
PF0206.063.032
2" x 1"
69
1" (33,25mm)
2" (59,61mm)
43,5
65
25,5
19
2,73 €*
pc:

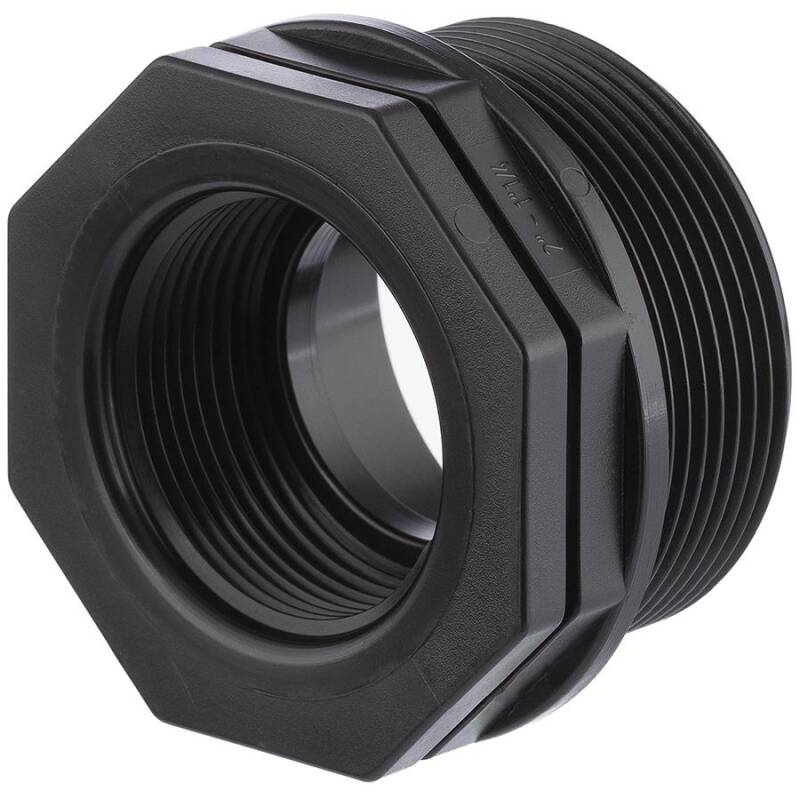

PP reducing male/female threaded bush 2" x 1 1/4"
PF0206.063.040
2" x 1 1/4"
69
1 1/4" (41,91mm)
2" (59,61mm)
43,5
65
25,5
21
2,73 €*
pc:

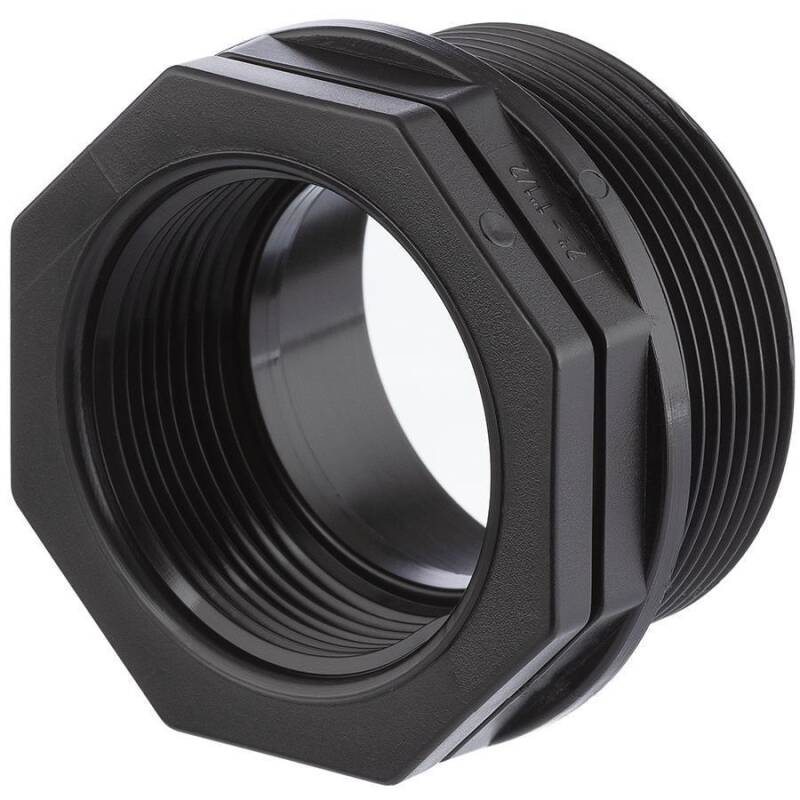

PP reducing male/female threaded bush
PF0206.063.050
2" x 1 1/2"
---
1 1/2" (47,81mm)
2" (59,61mm)
38
61
23
26
2,73 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PP Polypropylen Reduzierring Aussengewinde x Innengewinde

Anschluss:
Aussengewinde x Innengewinde
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
0°C bis 80°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C
Material:
PP Polypropylen glasfaserverstärkt
Farbe:
Schwarz, 3/8" x 1/4", 1/2" x 3/8" und 3/4" x 3/8" in Grau
  • absolut ungiftig, geruchs- und geschmackslos
  • geeignet für den Transport von Trinkwasser, Wein, Getränke und andere nährenden Flüssigkeiten
  • beständig gegenüber anorganischen Salzen in wässrigen Lösungen, schwach organischen Säuren und Laugen, Alkohol und teilweise Ölen
  • sehr gute mechanische Eigenschaften gegenüber Waschchemikalien o.ä
  • schützt als elektrisch isolierendes Material gegen elektrochemische Korrosion und Perforation, welche durch Streuströme verursacht wird
  • Wetter-, Ozon und UV-beständig
DOWNLOAD Polypropylen PP Temperatur-/ Druckdiagramm
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD RoSH Konformitätserklärung - Bucchi s.R.l.
