All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

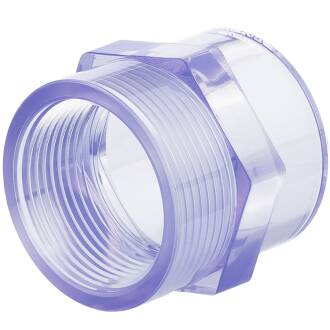

PVC-U Threaded Female Socket Transparent, Solvent Socket x Female Thread
PVC-U transparent fittings and pipes can be bonded just like grey PVC-U using any standard PVC-U solvent cement and provide the same high mechanical strength and quality.
Connection:
Solvent socket x female thread
Thread:
BSP pipe thread G, not self-sealing – seal with PTFE tape or similar.
Temperature:
up to 45°C constant, temporarily up to 60°C
Operating pressure (PN):
max. 10 bar at 20°C (medium: water)
Material:
PVC-U
Color:
Transparent, bluish
DOWNLOAD
RoHS confirmation HTC
DOWNLOAD
Bonding of PVC-U pipes and fittings
DOWNLOAD
The thread designation – or why 1" is not exactly 25.4 mm
DOWNLOAD
Sealing and connecting plastic threads
DOWNLOAD
Chemical resistance of plastics
DOWNLOAD
External characteristics of injection-moulded fittings
