Description

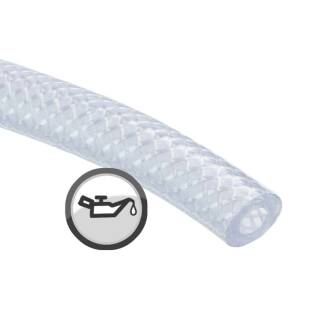

PVC hose fabric-reinforced OIL-RESISTANT
Multi-layer PVC pressure hose with highly tear-resistant polyester fabric reinforcement.
Applications: For compressed air technology and general industrial applications.
Imprint:
YES
Resistance:
Soft PVC, OIL RESISTANT
Color:
Transparent
Yarn:
Polyester yarn
Foodstuffs:
NO
REACH:
1907/2006/EC
RoHS:
2015/863
Material:
Soft PVC
Temperature:
-20°C to +65°C
Tolerance:
DIN 16940
Shipping costs Germany Hose cut to size and rolls XXL
:
6mm, 100m roll, per roll shipping costs 7,90 EUR gross
9mm, 100m roll, per roll shipping costs 7,90 EUR gross
13mm, 100m roll, per roll Shipping costs 7,90 EUR gross
13mm, 100m roll, per roll Shipping costs 12,90 EUR gross
19mm, 25m roll, per roll Shipping costs 7,90 EUR gross
19mm, 50m roll, per roll Shipping costs 12,90 EUR gross
25mm per section 6 - 20m Shipping costs 7,90 EUR gross
25mm, 25m roll, per roll Shipping costs 9,90 EUR gross
25mm, 50m roll, per roll Shipping costs 15,90 EUR gross
Cut-off quantities under roll length are delivered as one length.
- multi-layer PVC hose with a high-strength polyester yarn pressure carrier
- environmentally friendly, cadmium-free, free from toxic components
- temperature range -20°C to +65°C
- high flexibility and reinforcement density, free of heavy metals
- durable, resistant to ozone, UV and oxygen
- self-extinguishing after removal from the flame
- Resistant to oil and petrol
- transparent with fabric insert and imprint
- REACH: compliant according to 1907/2006/EC
- RoHS: compliant according to 2011/65/EU
