Pressure regulator female x male thread

wichtiger Hinweis

Nicht für den Innenbereich geeignet! Der Druckminderer besitzt zum Druckausgleich eine seitliche Öffnung, an der Wasser entweichen kann!


  • Available immediately
   Variants

Product picture
Item no.
Variation
Length
Connection
Input pressure
Output pressure
Price
Quantity
TECO In-line Pressure Reducer female x male thread 3/4" 1,0 bar - red
BW3350.T10.025
TECO 1,0 bar - rot
80
3/4" IG (26,44mm) x 3/4" AG (26,44mm)
max. 6 bar
1,0 bar
6,15 €*
pc.:
TECO In-line Pressure Reducer female x male thread 3/4" 1,4 bar - blue
BW3350.T14.025
TECO 1,4 bar - blau
80
3/4" IG (26,44mm) x 3/4" AG (26,44mm)
max. 6 bar
1,4 bar
6,15 €*
pc.:
TECO In-line Pressure Reducer female x male thread 3/4" 1,8 bar - black
BW3350.T18.025
TECO 1,8 bar - schwarz
80
3/4" IG (26,44mm) x 3/4" AG (26,44mm)
max. 6 bar
1,8 bar
6,15 €*
pc.:
TECO In-line Pressure Reducer female x male thread 3/4" 2,5 bar - green
BW3350.T25.025
TECO 2,5 bar - grün
80
3/4" IG (26,44mm) x 3/4" AG (26,44mm)
max. 6 bar
2,5 bar
6,15 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

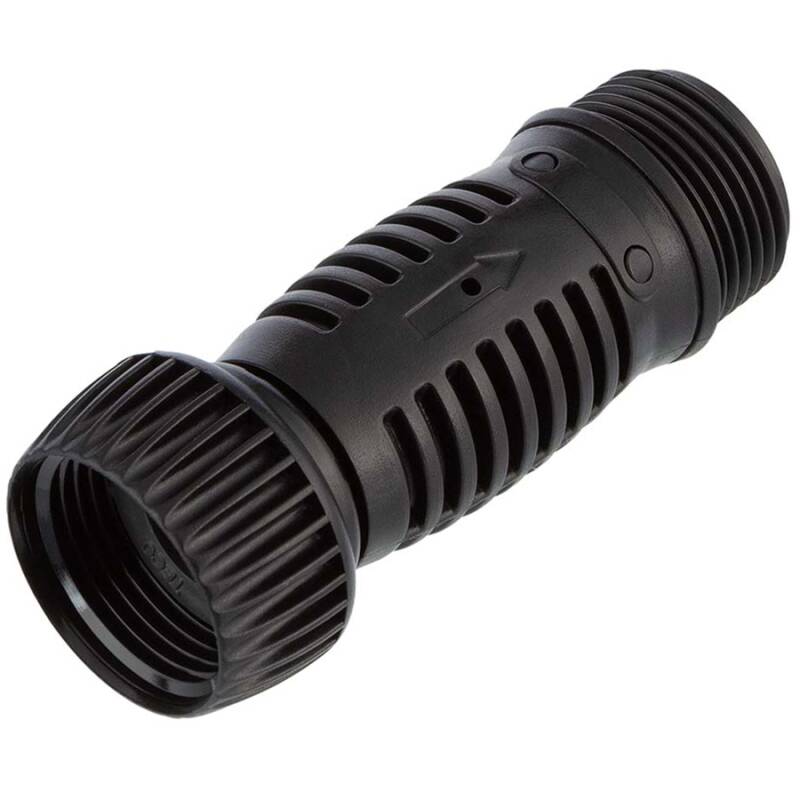

Pressure Regulator Pre-set Internal x External Thread

Pre-set pressure regulators specifically designed for drip irrigation applications with low flow. Four different models are available to optimize overall system performance. By installing the pressure regulator, a constant maximum pressure (fixed output pressure) is ensured for all installations, provided the input pressure is higher.


Important: For self- and system protection, the pressure regulator features a side opening for pressure equalization, allowing water to escape. For this reason, it is not suitable for indoor use. It is also not designed to absorb short, high-pressure shocks (water hammer) caused by pump starts or similar events. It is intended solely to protect subsequent applications in drip irrigation or micro-irrigation systems.

Important: Pressure regulators must be used with a pre-filter to ensure that no foreign particles enter the pressure regulator!

  • Perfect for drip irrigation and micro-irrigation systems
  • Pre-set pressure regulator
  • Can be installed horizontally and vertically
  • Connection: Input internal thread 3/4" and output external thread 3/4"
DOWNLOAD The Thread Identification - or why 1" is not exactly 25.4mm
