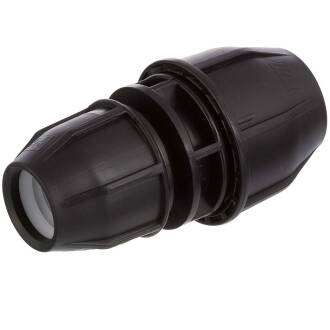

Reducing compression fitting

from
0,98 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

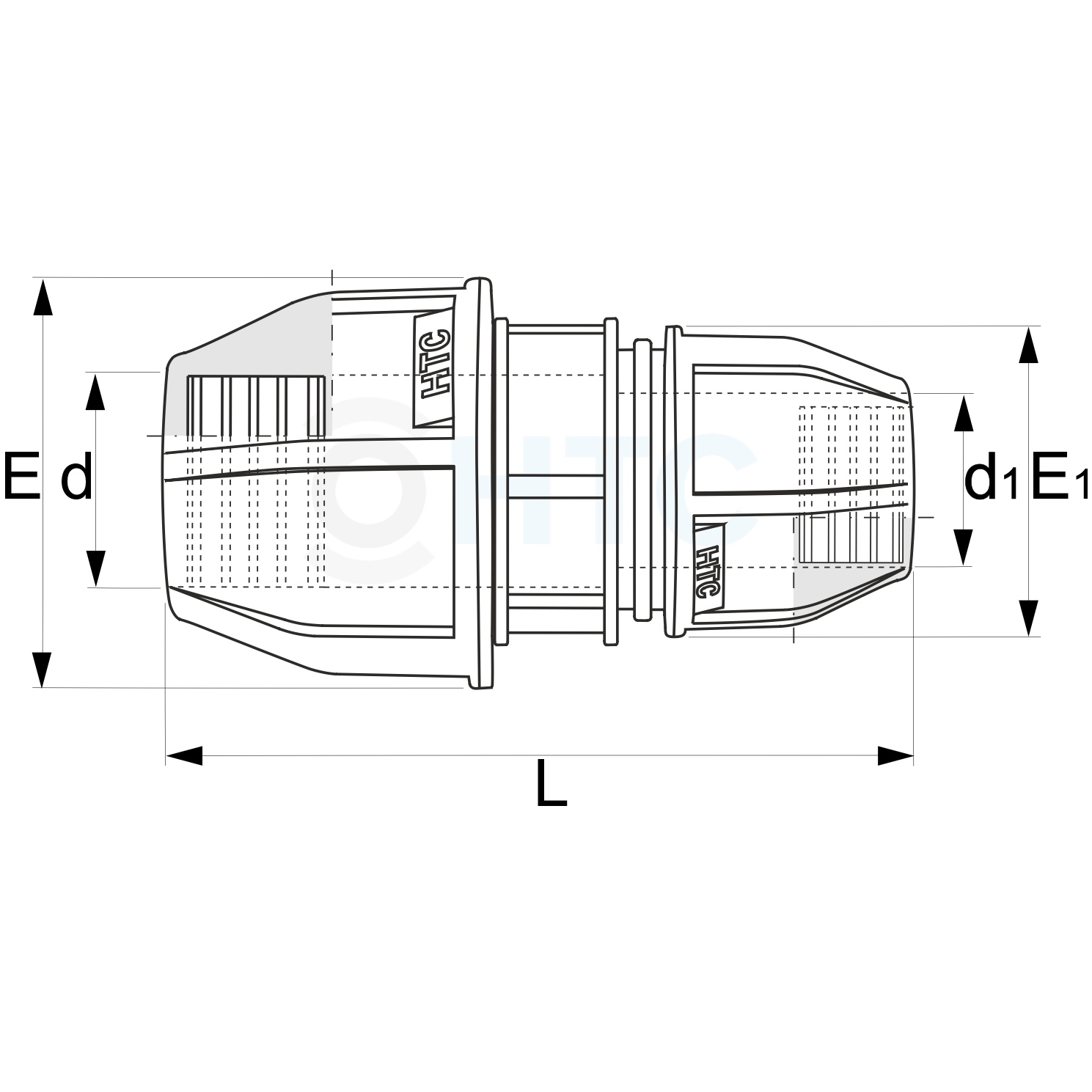

Product picture
Item no.
Variation
d
d1
E
E1
L
Pipe O-ø
Price
Quantity
Reducing compression fitting
PZ0202.025.020
25 x 20mm
25
20
56
46
122
25 x 20
0,98 €*
pc.:
Reducing compression fitting
PZ0202.032.020
32 x 20mm
32
20
62
45
130
32 x 20
1,25 €*
pc.:
Reducing compression fitting
PZ0202.032.025
32 x 25mm
32
25
62
55
137
32 x 25
1,45 €*
Reducing compression fitting
PZ0202.040.020
40 x 20mm
40
20
78
46
128
40 x 20
2,31 €*
pc.:
Reducing compression fitting
PZ0202.040.025
40 x25mm
40
25
78
54
140
40 x 25
2,33 €*
pc.:
Reducing compression fitting
PZ0202.040.032
40 x 32mm
40
32
78
62
160
40 x 32
2,38 €*
pc.:
Reducing compression fitting
PZ0202.050.025
50 x 25mm
50
25
94
54
155
50 x 25
3,93 €*
pc.:
Reducing compression fitting
PZ0202.050.032
50 x 32mm
50
32
96
62
177
50 x 32
4,00 €*
pc.:
Reducing compression fitting
PZ0202.050.040
50 x 40mm
50
40
96
79
178
50 x 40
4,08 €*
pc.:
Reducing compression fitting
PZ0202.063.025
63 x 25mm
63
25
113
55
189
63 x 25
5,50 €*
pc.:
Reducing compression fitting
PZ0202.063.032
63 x 32mm
63
32
113
64
194
63 x 32
5,78 €*
pc.:
Reducing compression fitting
PZ0202.063.040
63 x 40mm
63
40
113
78
196
63 x 40
6,43 €*
pc.:
Reducing compression fitting
PZ0202.063.050
63 x 50mm
63
50
113
96
230
63 x 50
6,49 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PP Klemmringverschraubung Reduziermuffe, 2fach Klemme

PP Klemmringverschraubung für den universellen Einsatz bei Brauchwasser, Trinkwasser im privaten Bereich und Bewässerung

Anschluss:
2fach Klemme
Temperatur:
bis 60°C konstant, kurzzeitig 80°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C
Material:
PP Polypropylen
O-Ring:
EPDM
Farbe:
Schwarz, Überwurfmutter: Schwarz
Verwendung:
Rohre aus PELD, PEHD, PE40, PE80, PE100
PVC Flexschlauch Klebeschlauch

Bewässerung:

  • Landwirtschaft, Gärtnerei & Gartenbau, Weinberge

Besprengung:

  • Wohngebiete, kommunale Bereiche, Sportplätze, Golfplätze, Reitplätze

Industrie:

  • Brauchwasserversorgung, Versorgung mit korrodierenden Flüssigkeiten, Kabelschutz

Freizeit:

  • preiswerte Verbindung von Flexschlauch Klebeschlauch

Qualität:

  • Wetter, UV- und Ozonbeständig, Innengewinde mit Verstärkungsring (außer separat vermerkt)

Preis/Leistung:

  • unser Produkt mit hervorragendem Preis-/Leistungsverhältnis

DOWNLOADRoHS Bestätigung HTC

DOWNLOAD verarbeiten von PP Klemm Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD PP Polypropylen Temperatur-/Druckdiagramm
DOWNLOAD chemische Beständigkeit von Kunststoffen
