Solenoid valve Hunter PGV 24 VAC

from
1,29 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Product picture
Item no.
Variation
L
Reel
flow control
Thread
Price
Quantity

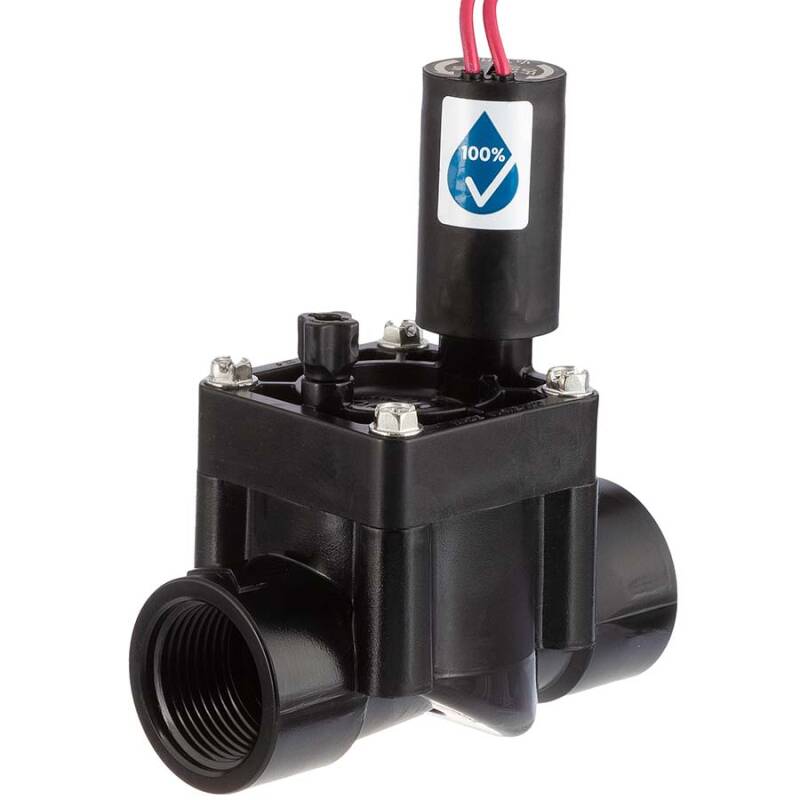

Solenoid valve Hunter PGV 24 VAC 1" female thread without flow control
BW3050.100.I32
PGV-100-G-B 1" Innengewinde
112
24 VAC
NEIN
1" (33,25mm)
24,07 €*
pc.:
Solenoid valve Hunter PGV 24 VAC 1" female thread with flow control
BW3050.101.I32
PGV-101-G-B 1" Innengewinde
112
24 VAC
JA
1" (33,25mm)
24,23 €*
pc.:

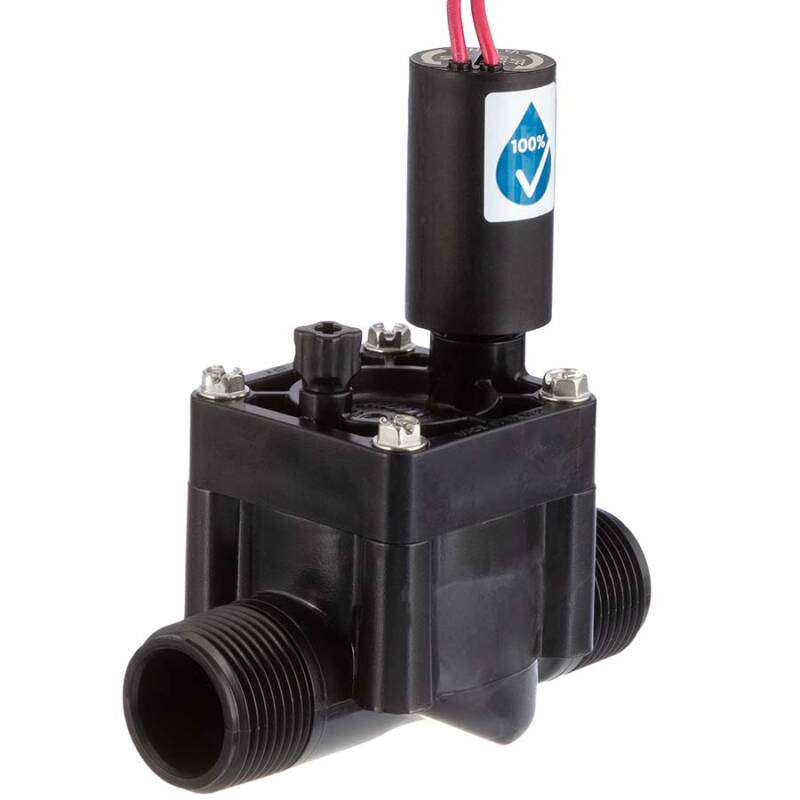

Solenoid valve Hunter PGV 24 VAC 1" male thread without flow control
BW3050.100.A32
PGV-100-MM-B 1" Aussengewinde
120
24 VAC
NEIN
1" (33,25mm)
24,53 €*
pc.:
Solenoid valve Hunter PGV 24 VAC 1" male thread with flow control
BW3050.101.A32
PGV-101-MM-B 1" Aussengewinde
120
24 VAC
JA
1" (33,25mm)
24,69 €*
pc.:
Solenoid valve Hunter PGV 24 VAC 1 1/2" female thread with flow control
BW3050.151.I50
PGV-151-B 1 1/2" Innengewinde
140
24 VAC
JA
1 1/2" (47,81mm)
85,73 €*
pc.:
Solenoid valve Hunter PGV 24 VAC 2" female thread with flow control
BW3050.201.I63
PGV-201-B 2" Innengewinde
165
24 VAC
JA
2" (59,61mm)
104,11 €*
pc.:

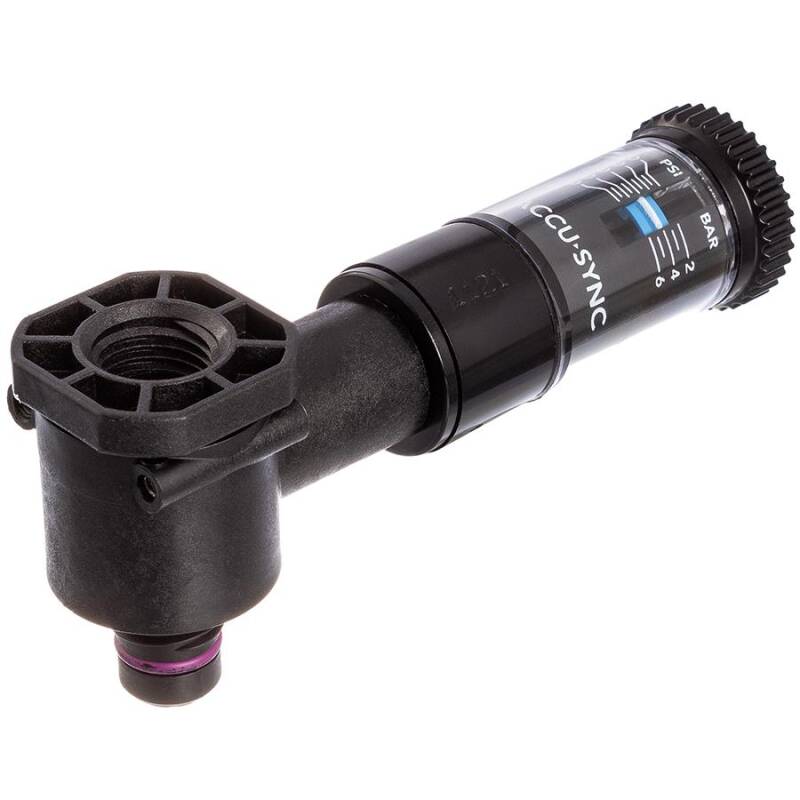

Hunter Accu Sync pressure regulator with adapter
BW3050.ACC.SYN
Druckregulator einstellbar von 1,5 bis 7 bar
114
---
---
---
63,27 €*

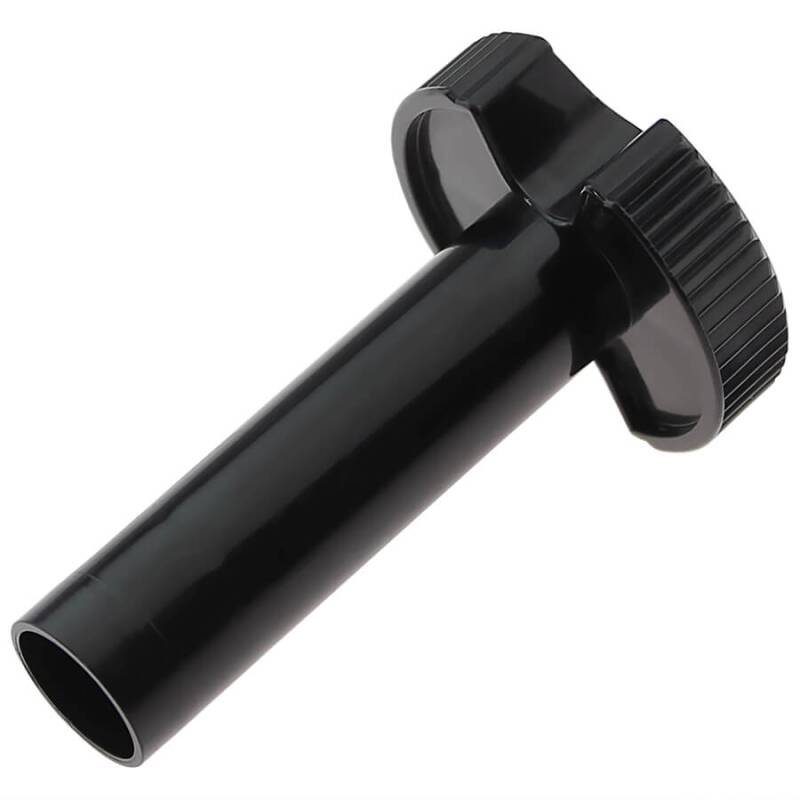

Solenoid valve Hunter PGV 24 VAC Hunter Valve PGV Key, FLOW CONTROL
BW3050.101.000
FLOW CONTROL Einstellschlüssel für 1" Ventile
---
---
---
---
1,99 €*
pc.:

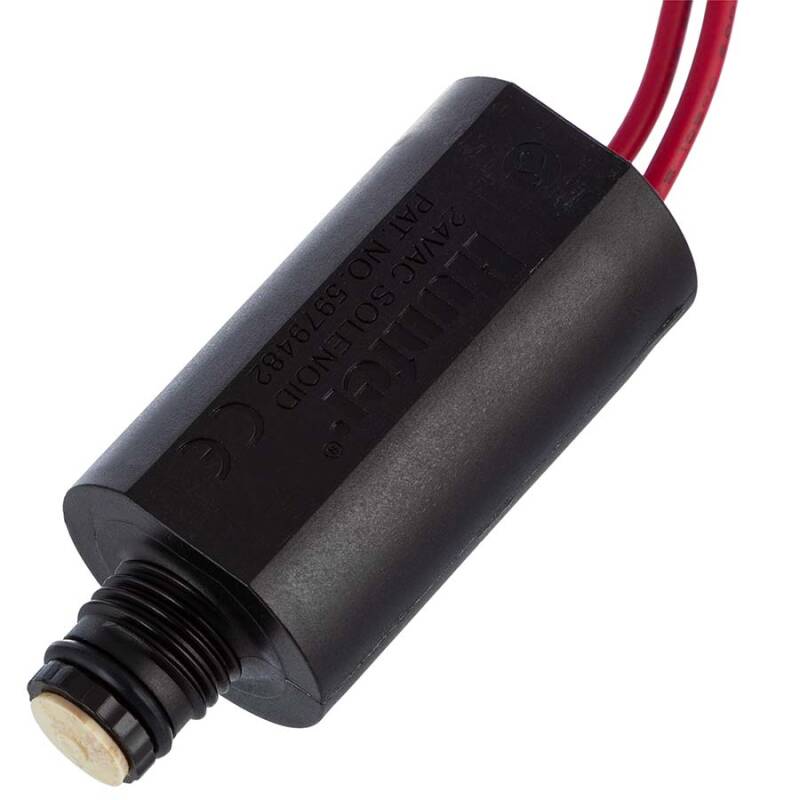

Solenoid valve Hunter PGV 24 VAC Magnetspule 24VAC
BW3050.A24.HNC
Magnetspule 24 VAC
---
24 VAC
---
---
14,78 €*
pc.:
Hunter O-Ring solenoid
BW3050.000.999
Ersatzdichtung für Spule
---
---
---
---
1,29 €*
pc.:

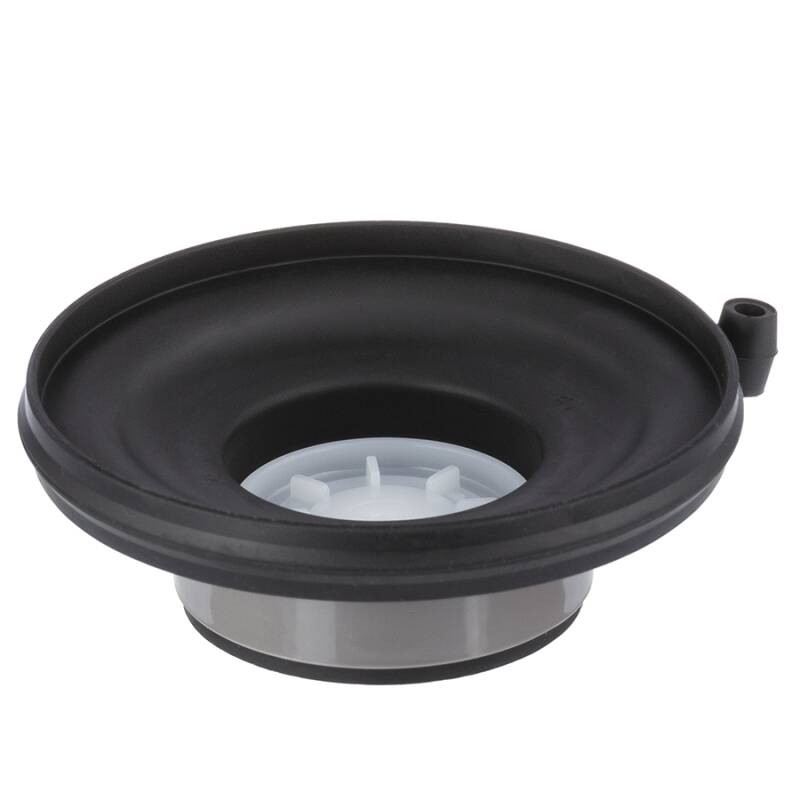

Solenoid valve Hunter PGV 24 VAC Diaphragm PGV 1"
BW3050.000.032
Ersatzmembrane für PGV 1"
---
---
---
---
14,13 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

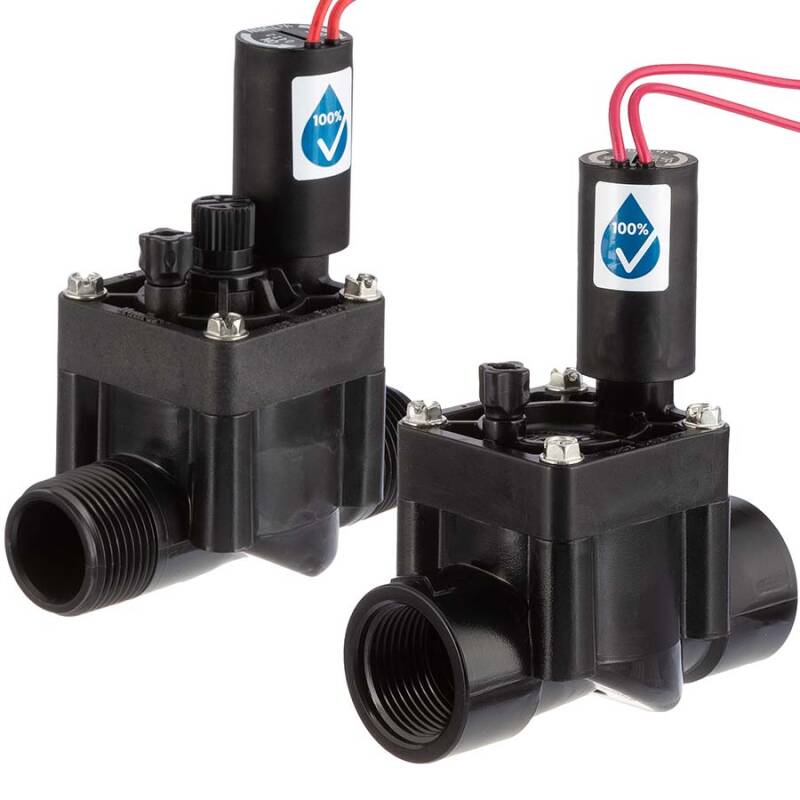

Hunter Solenoid Valve 24 VAC

The durable Hunter PGV solenoid valve with and without flow control is equipped with the best features of Hunter's top valves and is designed to withstand the challenges of most residential and smaller commercial green spaces. The 24V AC model is high-quality and features a robust diaphragm to prevent operational failures under tough conditions. In our shop, you will find two versions of the Hunter PGV solenoid valves, the PGV 100G and the PGV 101G. The 101 PGV version comes with flow control and differs from the 100 G version in this regard.
With external thread as the PGV-100G version without flow control and the PGV-101G version with flow control.


Important:

The solenoid valves are intended for controlling a piping system in an irrigation system in conjunction with an irrigation controller. When using external power supplies, the voltage values must be observed.
A minimum inlet pressure of 1.4 bar is required.

Features of the Hunter Solenoid Valve

  • External and internal manual venting for quick and easy activation "at the valve"
  • Durable screwed protective cap for maximum strength
  • Construction with double diaphragm sealing for excellent leak-proofing
  • Effortless valve maintenance with secured valve cover screws
  • Low-flow capability, suitable for micro-irrigation as well
  • Encapsulated 24 VAC solenoid coil with non-loosable plunger for easy service
  • Max. temperature: 60°C
  • Fail-safe closed

Technical Operating Data for the Hunter PGV Valve

  • Flow rate: 0.05 to 9m³/hour; 0.75 to 150l/min
  • Recommended pressure range: 1.5 to max. 10 Bar
  • Inlet pressure: 1.4 Bar
  • 24V AC solenoid coil: 370 mA inrush current, 210 mA holding current, 50 Hz
  • 24V AC solenoid coil: 350 mA inrush current, 190 mA holding current, 60 Hz


Accu Sync Pressure Regulator

Accu Sync Pressure Regulator/Pressure Reducer


By regulating the pressure, water is saved and the lifespan of the irrigation system is extended. Water savings are achieved through pressure regulation, where each zone is operated with the optimal pressure for the system equipment and application type. The Accu Sync is a simple pressure regulator compatible with all Hunter control valves. The adjustable model allows the zone pressure to be set to any value between 1.5 and 7 Bar (150 to 700 kPa). In contrast, the fixed set models provide transparency and can be easily installed in any system. In terms of reliability, the Accu Sync is unparalleled. Its fiberglass-reinforced nylon construction makes it a pressure regulator robust enough to meet the demands of any project. Regardless of the chosen model, all zones will remain optimally adjusted with Accu Sync.

Operating Data

  • Pressure reduction to 1.5 to 7.0 Bar; 150 to 700 kPa
  • Static pressure: 10 Bar; 1000 kPa
  • Required dynamic pressure differential: 1.0 Bar; 100 kPa
  • Suitable for AC and DC solenoid valves
  • Works with all Hunter valves








DOWNLOAD Hunter Solenoid Valve PGV Installation
DOWNLOAD Hunter PGV and PGV JAR TOP Operating Data Cutsheet
DOWNLOAD The Thread Identification - or why 1" is not exactly 25.4mm
