Spelsberg junction box

SKU: BW4052
Auswahl Steuerzone / Lieferland
from
2,06 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
Length
Width
Height
Connection
Type
Price
Quantity

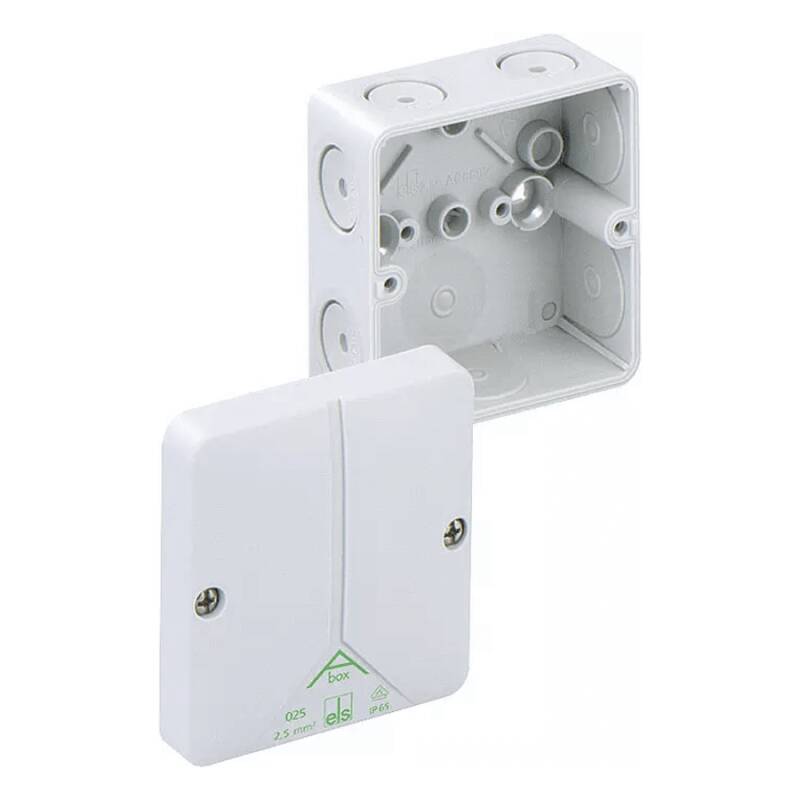

Spelsberg junction box Abox 025-L (80290701)
BW4052.SPE.025
Abox 025-L mit selbstdichtenden Einführungsmembranen, M20, Dichtbereich 2 - 16 mm
80
80
52
8x M20
IP65
7,26 €*
pc.:

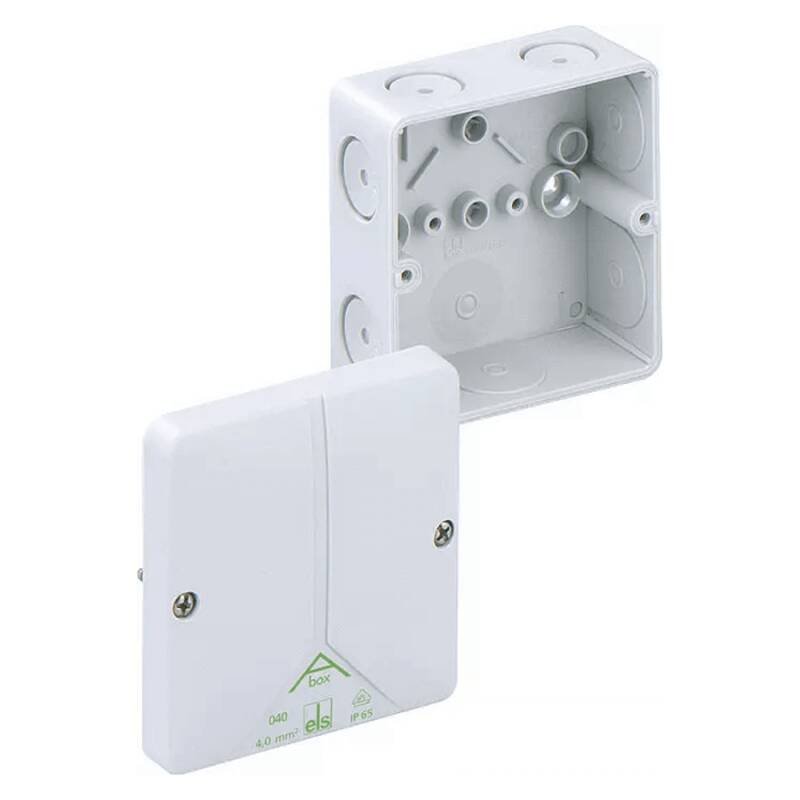

Spelsberg junction box Abox 040-L (80490701)
BW4052.SPE.040
Abox 040-L mit selbstdichtenden Einführungsmembranen, M20, Dichtbereich 2 - 16 mm
93
93
55
8x M20
IP65
11,70 €*
pc.:

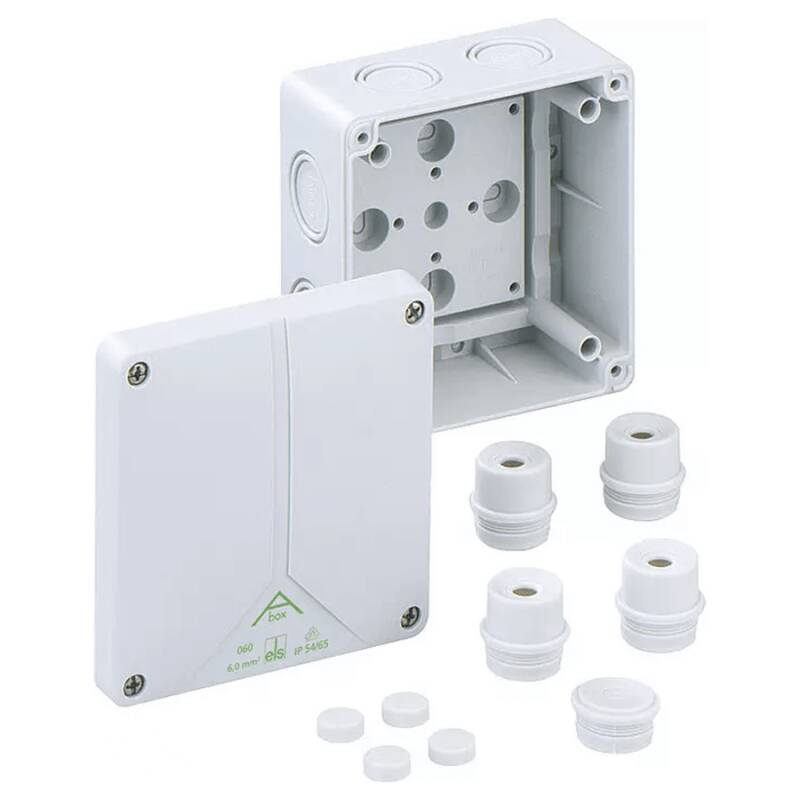

Spelsberg junction box Abox 060-L (80690701)
BW4052.SPE.060
Abox 060-L mit 4 Anbaustutzen IP54 M25 Dichtbereich 9 - 18,5 mm, 1 Verschlussstopfen M25
110
110
67
7x M20/M25, 2x M16
IP54/65
23,78 €*
pc.:

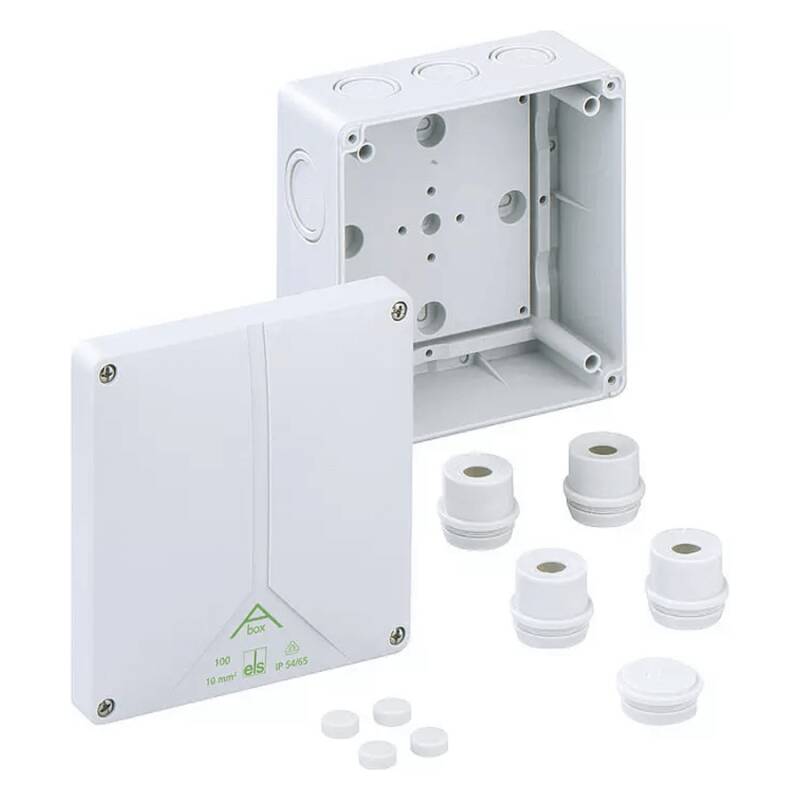

Spelsberg junction box Abox 100-L (81091001)
BW4052.SPE.100
Abox 100-L mit 4 Anbaustutzen IP54 M32 Dichtbereich 13 - 23 mm, 1 Verschlussstopfen M32
140
140
79
2x M20,5x M20/M25,5x M25/M32,
IP54/IP65
28,50 €*
pc.:

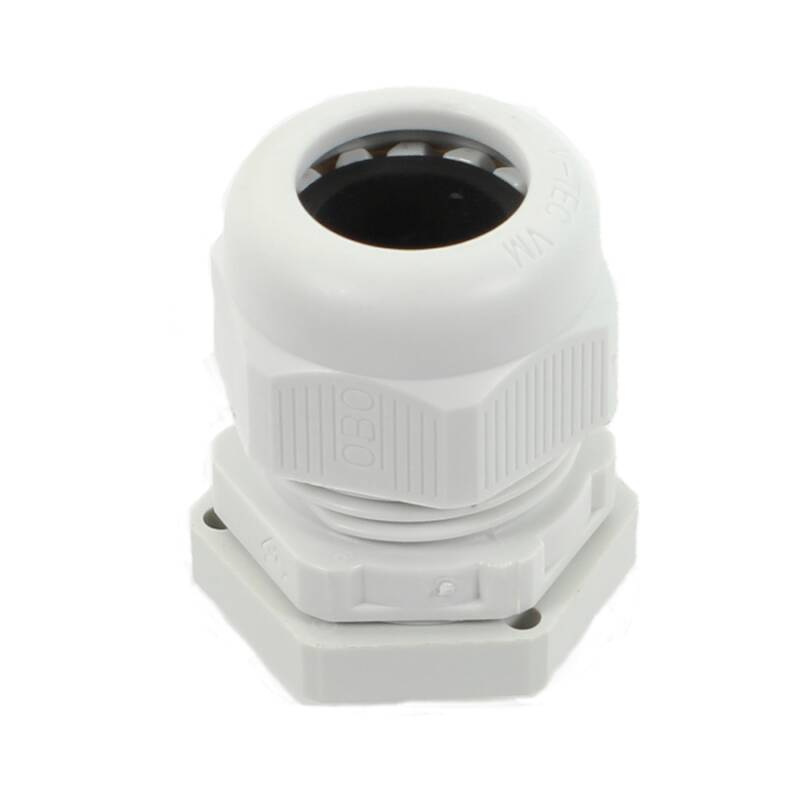

Cable union incl. nut M20
BW4052.OBO.M20
Kabelverschraubung inkl. Gegenmutter M20 V-TEC VM20 /116 M20 LGR
39,5
29
M20
---
2,06 €*
pc.:

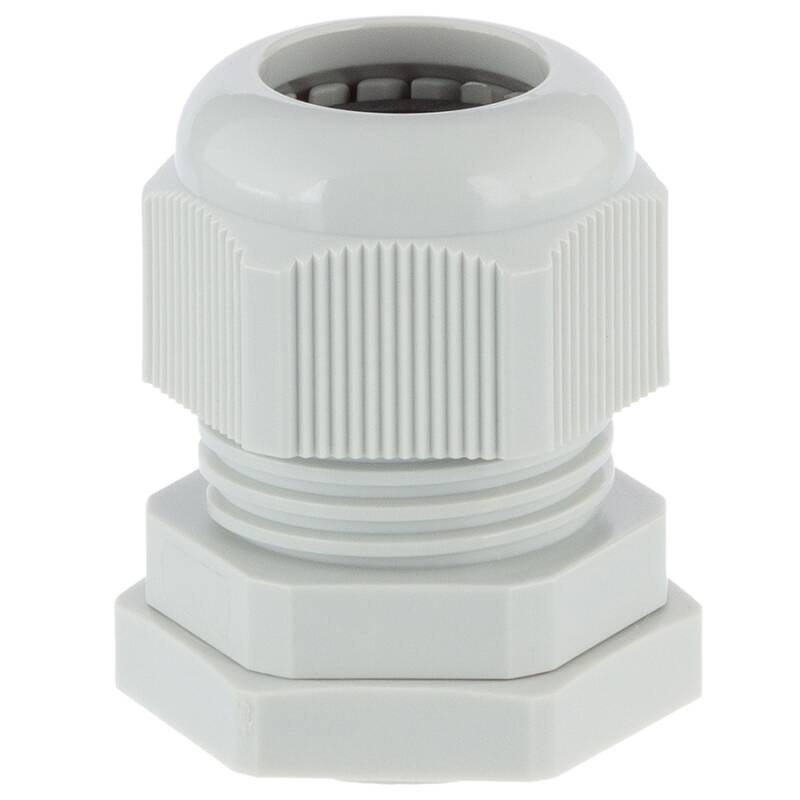

Cable union incl. nut M25
BW4052.OBO.M25
Kabelverschraubung inkl. Gegenmutter M25
42
36
M25
---
3,19 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Spelsberg junction box

  • Junction box according to DIN EN 60670 (VDE 0606)
  • Rated insulation voltage AC Ui=690V
  • with 4x IP54 mounting spigots and 1x sealing plug gray
  • , without terminal
  • Protection class IIEnvironmental temperature
  • min. -25°C to max. 40°C
  • sealable
  • Impact resistance: IK07Material
  • : Polystyrene
  • Material cover screw: Stainless steel V2A
