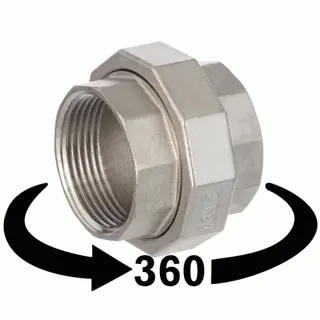

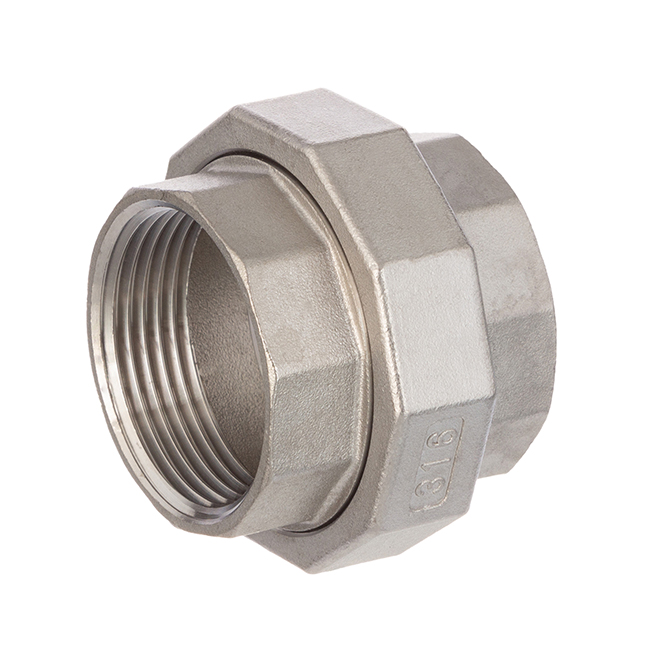

Stainless steel V4A screw connection, conically sealing, 2x internal thread

SKU: EF0613
Auswahl Steuerzone / Lieferland
from
4,11 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
G
L
L1
SW
SW1
Price
Quantity
EF0613.000.012
1/4"
Rp 1/4" (13,16mm)
30
11,5
17
27
4,21 €*
pc.:
EF0613.000.016
3/8"
Rp 3/8" (16,66mm)
33
12
21
30
4,11 €*
pc.:
EF0613.000.020
1/2"
Rp 1/2" (20,96mm)
30
12
24
36
6,00 €*
pc.:
EF0613.000.025
3/4"
Rp 3/4" (26,44mm)
40
15
31
42
6,37 €*
pc.:
EF0613.000.032
1"
Rp 1" (33,25mm)
47
16,5
38
51
9,57 €*
pc.:
EF0613.000.040
1 1/4"
Rp 1 1/4" (41,91mm)
51
19,5
46
61
13,14 €*
pc.:
EF0613.000.050
1 1/2"
Rp 1 1/2" (47,81mm)
57,5
21
52,5
69
16,35 €*
pc.:
EF0613.000.063
2"
Rp 2" (59,61mm)
55
20
65
79
25,78 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Conical sealing screw connection, 2 female threads, stainless steel fitting,
Quality AISI 316, V4A

Connection:
2 female threads
Thread:
Whitworth pipe thread according to DIN/ISO 2999, not self-sealing, seal with hemp, sealing paste or similar.
Temperature:
-20°C to 200°C
Working pressure (PN):
20 bar
Material:
Stainless steel AISI 316 V4A (UNE EN 10213-4 / DIN 1.4408)
Seal:
conical seal (self-sealing, metal against metal)
DIN:
Dimensions conform to ISO 4144, connection thread to ISO 7/1 (DIN 2999 / BS 21)
Color:
Gray stainless steel





Druck_Temperatur

Key data

  • Working temperature: -20°C to 200°C
  • Working pressure PN 20 bar (300 psi)
  • Dimensioning according to ISO 4144
  • Whitworth thread, CNC machined according to ISO 7/1 (DIN 2999 / BS21)
  • Manufacturing standard UNE EN 10213-4, tolerance DIN 1.4408

Stainless steel (according to EN 10020) is a designation for alloyed or unalloyed steels with a particular degree of purity. Steels whose sulfur and phosphorus content (so-called iron companions) does not exceed 0.025%.
Alloy 316 is a standard steel grade with molybdenum. The molybdenum gives alloy 316 better corrosion resistance than 304, particularly greater resistance to pitting and crevice corrosion in chloride-containing media. The austenitic structure gives this alloy a high degree of toughness, even at very low temperatures, high creep strength, high stress-rupture strength and tensile strength at elevated temperatures. The alloy is commonly known as V4A stainless steel.

Stainless steel AISI 316 | Material 1.4401 (X5CrNiMo17-12-2) (V4A) Application: According to DVGW worksheet W541 (basis for the requirements for pipes made of stainless steel for domestic drinking water installations), steel grade 1.4401 is the most commonly used.
It can be used in a wide range of applications in the chemical, petrochemical and natural gas industries, the food industry, corrosive environments and extreme temperatures... Fluid technology, boilers, condensers, heat exchangers, reactors...

DOWNLOADRoHS confirmation HTC
DOWNLOAD the thread code - or why 1" is not 25.4mm
