All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

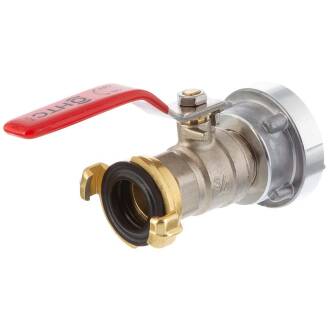

Storz coupling with ball valve, transition to GEKA connection
Connection:
Storz with ball valve to GEKA
Temperature:
-10°C to 80°C
Working pressure (PN):
max. 16 bar at 20°C
Material:
Aluminum | ball valve, GEKA connection brass
Seal:
NBR
Note:
The set item is supplied as individual components and is screwed together and sealed by the customer. A roll of Teflon tape for sealing the thread is included.
Field of application
- No twisting of the hose when coupling, as the hose nozzle is rotatably mounted in the coupling part
- Can be used for a wide variety of professional hose connections in the fire department, agriculture, construction industry, industry, disaster control, professional private use, etc.
Application
- for connecting or joining hoses
- quick connection and disconnection thanks to 120° rotation of the bayonet coupling
Pivot distance
Coupling
Distance
D
31 mm
C
66 mm
B
89 mm
A
133 mm
Seal for suction and pressure applications: Due to the high-quality suction and pressure seal, the pure manual force is no longer sufficient to open and close the bayonet lock with larger dimensions and coupling keys or similar are required.
