Description

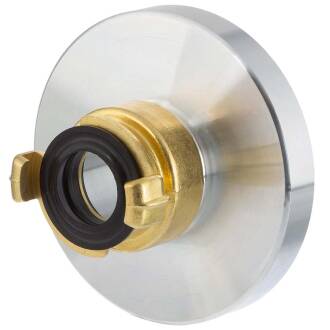

Storz coupling transition to GEKA connection
Connection:
Transition Storz to GEKA
Temperature:
-10°C to 80°C
Working pressure (PN):
max. 10 bar at 20°C
material:
Aluminum | GEKA connection Brass
Seal:
NBR
Field of application
- No twisting of the hose when coupling, as the hose nozzle is rotatably mounted in the coupling part
- Can be used for a wide variety of professional hose connections in the fire department, agriculture, construction industry, industry, disaster control, professional private use, etc.
Application
- for connecting or joining hoses
- quick connection and disconnection thanks to 120° rotation of the bayonet coupling
Pivot distance
Coupling
Distance
D
31 mm
C
66 mm
B
89 mm
A
133 mm
Seal for suction and pressure applications: Due to the high-quality suction and pressure seal, the pure manual force is no longer sufficient to open and close the bayonet lock with larger dimensions and coupling keys or similar are required.
